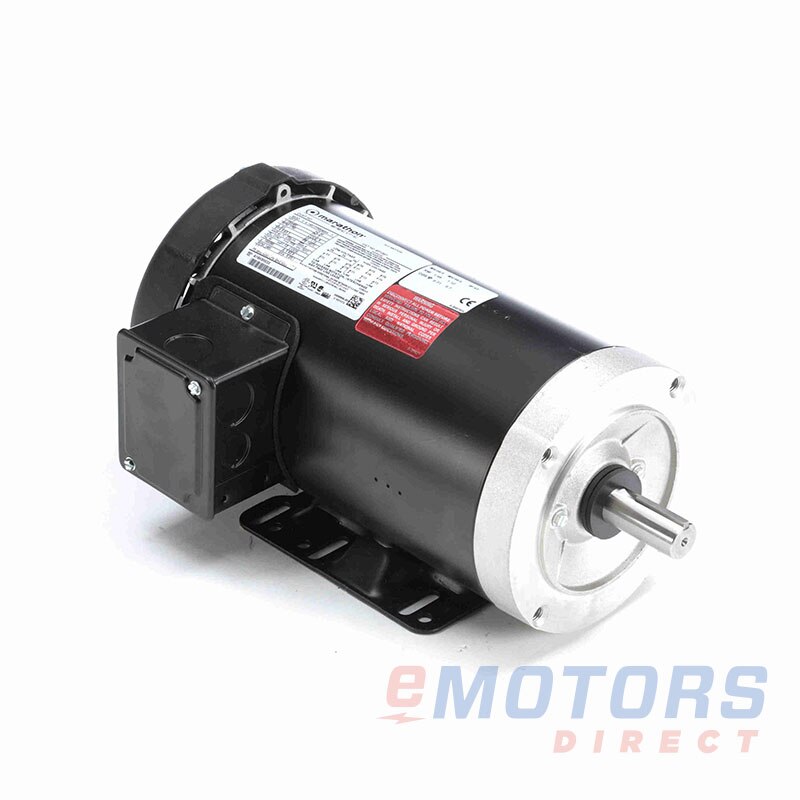

Leeson GT1207

Leeson
2 HP 1800 145TC TEFC 230V|460V General Purpose
Catalog Number: GT1207
Part Number: 145TTFR6040
HP
2
RPM
1800
Voltage
230V,460V
Frame
145TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: In Stock
Edmonton, AB: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

The Globetrotter®motors are built tough to go the distance in many commercial and industrial applications around the world. The motors come in a variety of configurations and enclosures where variable speed, premium efficiency and reliability are required. The Globetrotter®motors were designed for applications such as cooling tower, HVAC, conveyors, packaging equipment, pumping, extruders, gear reducers, and machine tools.

Feature

  • Meets or exceeds NEMA Premium® efficiencies
  • NEMA Premium models are in compliance with EISA 2007
  • Inverter duty 10:1 variable torque and 10:1 constant torque, 1.0 SF
  • 1.15 Service factor on sinewave, 1.0 service factor on IGBT power
  • Meets temperature code T2B
  • Class F Insulation
  • Standard assembly F1, reversible to F2 assembly
  • UL recognized, CSA certified, CE mark
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
6.0/3.0 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
N
Nominal Efficiency
86.5
Nominal Power Factor
71
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
49lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
14.87"
NEMA Design
A
Degree of Protection (IP)
IP43
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
3-Year
