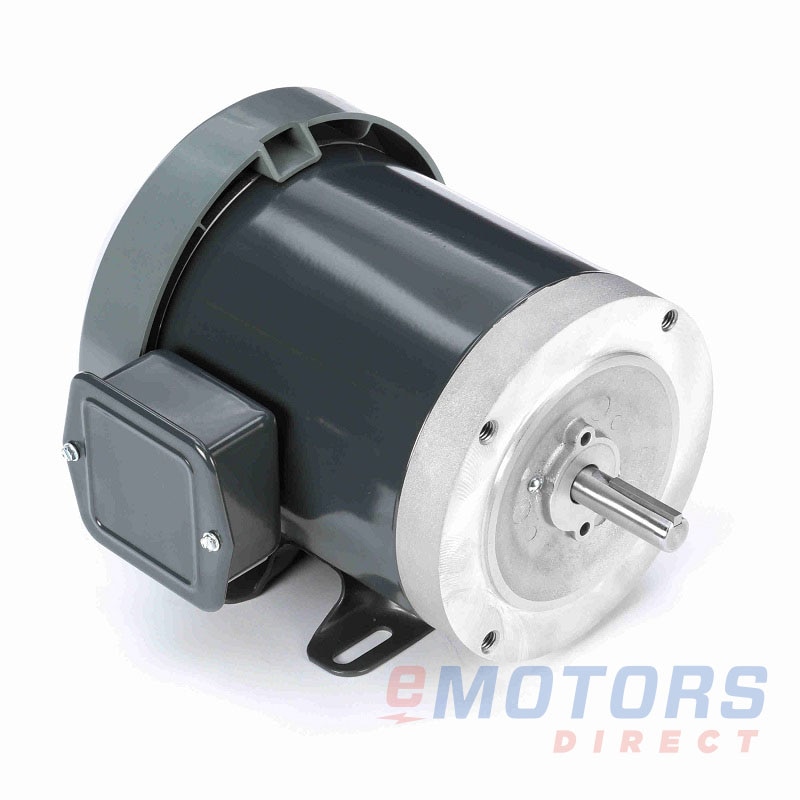

Leeson K1322

Leeson
1/3 HP 1800 56C TEFC 208-230V|460V General Purpose
Catalog Number: K1322
Part Number: 5K42FN4035
HP
1/3
RPM
1800
Voltage
208-230V, 460V
Frame
56C
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
1/3 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
1.5-1.6/0.8 AMP
Phase
3
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.35
KVA Code
-
Nominal Efficiency
69.2
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
10.6"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
-
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
-
