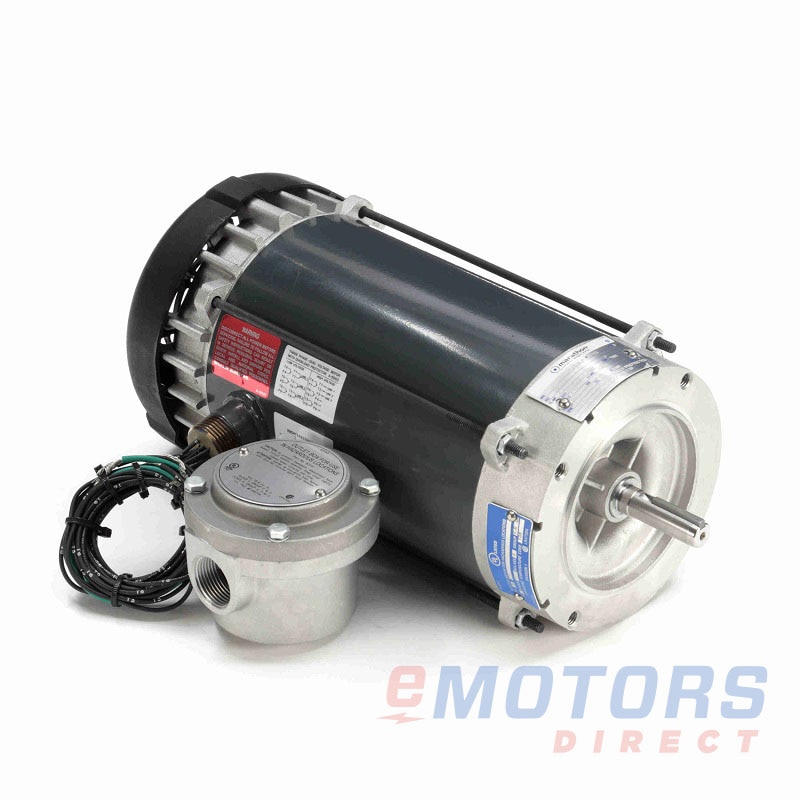

Leeson K2115A

Leeson
1 1/2 HP 1725 56C TEFC-XP 230V|460V Explosion Proof
Catalog Number: K2115A
Part Number: 056T17G15601
HP
1 1/2
RPM
1800
Voltage
230V, 460V
Frame
56C
Phase
3
Enclosure
TEFC-XP
Material
Rolled Steel
Mounting
C-Face / Round Body
Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Factory Ordered: 3-5 weeks
Mississauga, ON: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Feature

  • “Blue Chip®” thermal protection
  • Thermal protection, 56 frame auto overload, 143-256TC T-stats
  • Conduit box shipped loose on 56 frame, installed on 143-256TC
  • 56 frame class I, groups C & D, class II, groups F & G
  • 143-256TC class I, group D, group C as noted, class II, groups F & G
  • T3B temperature code
  • UL file # E12044
  • CSA file #LR47504
Electrical Data
Rated Motor Output Power
1 1/2 HP
1.1 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
4.6/2.3 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
P
Nominal Efficiency
86.5
Nominal Power Factor
71
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC-XP
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
15.94"
NEMA Design
-
Degree of Protection (IP)
IP54
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3B
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
2"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
-
Warranty
3-Year
