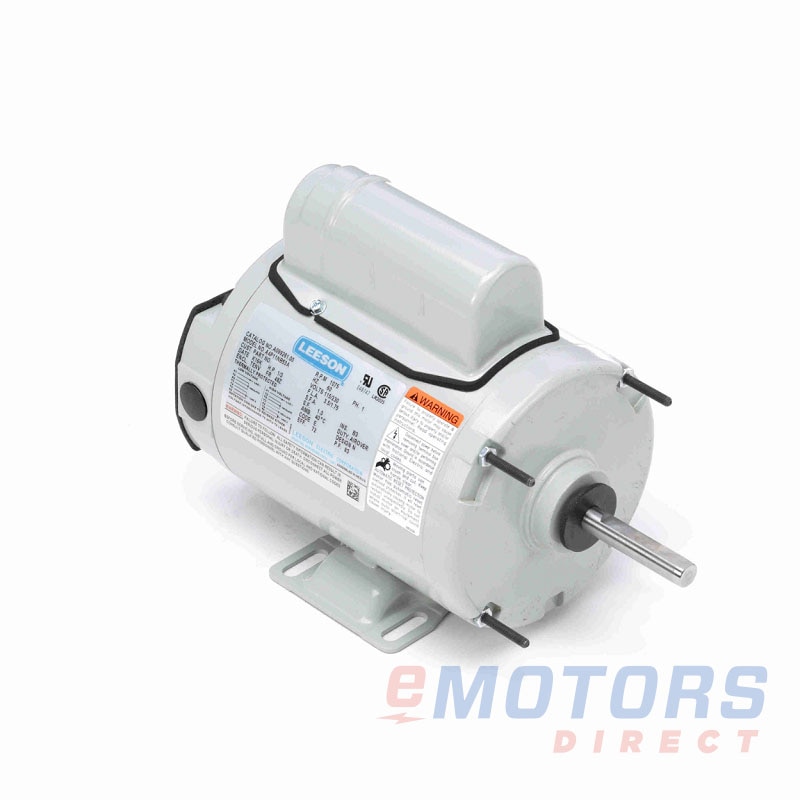

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson M009047

Leeson
3/4HP 1725 56C Fr 208-230V|460V TEFC Genaral Purpose
Catalog Number: M009047
HP
3/4
RPM
1800
Voltage
208-230V, 460V
Frame
56C
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid
Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: Out of Stock
Edmonton, AB: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
3/4 HP
.56 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
-
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
M
Nominal Efficiency
-
Nominal Power Factor
80
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
B
Degree of Protection (IP)
IP43
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
CHINA
Warranty
1-Year
