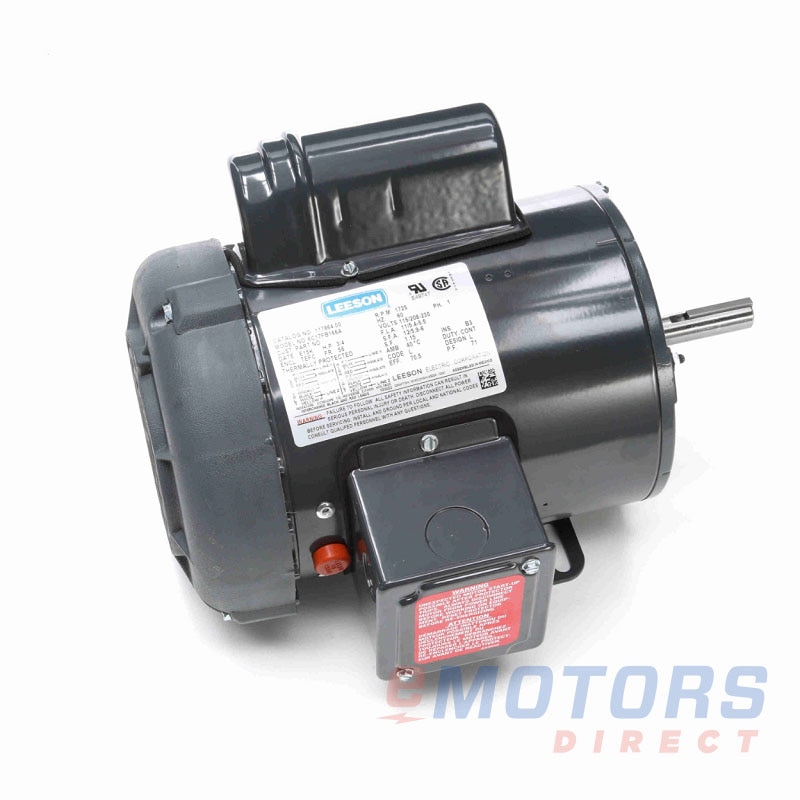

Leeson M009087.00

Leeson
3/4HP 1725 56 Fr 115V|208-230V TEFC Farm Duty
Catalog Number: M009087.00
HP
3/4
RPM
1800
Voltage
115V,208-230V
Frame
56
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: Out of Stock
Edmonton, AB: Out of Stock
Edmonton [eMotors #2], AB: Out of Stock
Factory Ordered: 3-5 weeks

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
3/4 HP
.56 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
10.0/5.0 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
J
Nominal Efficiency
75
Nominal Power Factor
65
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
30lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.5
NEMA Design
L
Degree of Protection (IP)
IP43
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625
Shaft Length
1.875
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
1-Year
