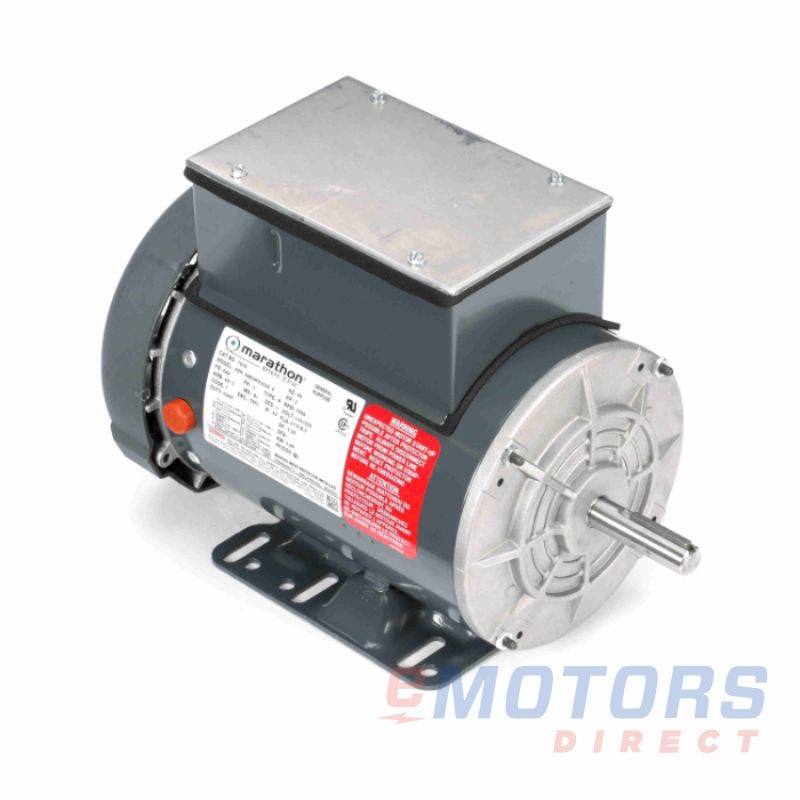

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson T019

Leeson
2HP 3450 56H TEFC 115V|230V Farm Duty
Catalog Number: T019
Part Number: 056B34F5333
HP
2
RPM
3600
Voltage
115V,230V
Frame
56H
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Factory Ordered: 3-5 weeks
Mississauga, ON: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

Replacement motors for table saws, planers, lathes, and other equipment found in the woodworking and metalworking trades. These totally enclosed, fan cooled motors are well suited for use in dusty and dirty environments or where wood or metal shavings are present.

Feature

  • Capacitor start design for high starting torque with low amps
  • Double sealed ball bearings
  • Heavy gauge steel frame and base
  • 1.15 service factor
  • Manual reset thermal protection
  • Dependable, dust-proof centrifugal starting switch
  • On/off toggle switch and 8 foot cord with 115 volt plug included on 1/2 to 1-1/2 HP models
  • UL recognized and CSA certified
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
3450 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
17.5/8.7 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
J
Nominal Efficiency
80.3
Nominal Power Factor
92.2
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56H
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
36lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
15.75"
NEMA Design
L
Degree of Protection (IP)
IP43
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
