Product images are for reference only. Please review product specifications for the most accurate and detailed information.

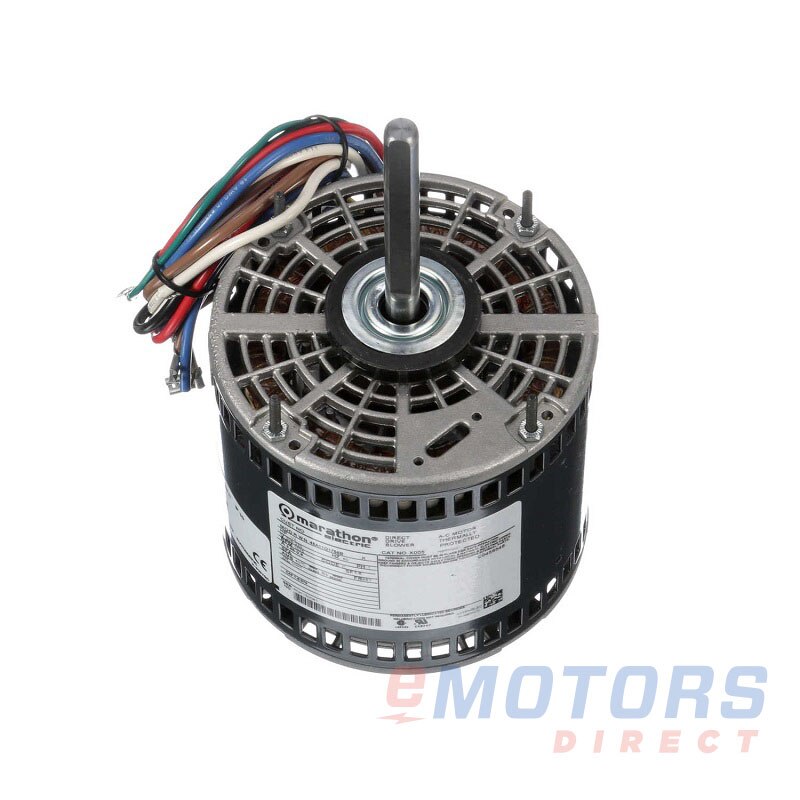

Leeson X005

Leeson
1/2 HP 1075 48Y OAO 208-230V Furnace Motor
Catalog Number: X005
Part Number: 048A11O1756
HP
1/2
RPM
1200
Voltage
208-230V
Frame
48Y
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Round Body

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
AO SMITH FM1056, D1056, FD1056
EMERSON1973, 1224, 6612, 8899, K55JSY-5414
A1 F2799
BEACON C 2BM126X
CARRIER HC43MZ230, P257-8988, HC41SE212, P251-5217, P251-5212, HC43MF229, P257-8588, HC43MF230, HC43VE208, P257-X005, P251-5213
ECONOMASTER EM3588
EMBRACO E206
FASCO D-703, D-737
FR CY69104Z, 80619
GEM EM3388, EM3988, EM3788
GENERAL ELECTRIC 3988, 5KCP39PGB13, 3788, 3388, 5KCP39NG9709
GLOBAL IND WBB871655
GRAINGER/DAYTON 4M101, 3M856, 3M418
IRP 160-10
JS S87-984, S87-981
LENNOX 78F9101, P-8-10431
MANOIR 2163
MARATHON 48A11O1756, 48A1101756
MARS 3388, 3988, 3588, 10230, 3788
NORDYNE 912450
PACKARD 63988
PROFIT V23588
RE MICHEL 1E498, 1E498C
RHEEM 51-23022-31
ROTOM R43588, DD-3588
SMITH D1056
TOPTECH TT-E50-3SP2
TRANE M0T-6131
UNIVERSAL U-528, U-487
UPG 024-24155-700
WAGNER WG840588

Feature

  • Open frames and brackets (except X011 and X012) have enclosed shaft end bracket
  • Single and multi-speed models as noted
  • Grommeted lead exit
  • Weather resistant reversing plug
  • 2 1/2” adapter rings supplied, shipped loose in box
  • Extended thru-bolts on shaft end
  • 30” long leads
  • Automatic reset thermal protector
  • Ball bearings
  • UL recognized and CSA certified
  • Capacitor not included
Electrical Data
Rated Motor Output Power
1/2 HP
.37 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
2.65-2.6 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
2.65
Service Factor
1
KVA Code
C
Nominal Efficiency
74
Nominal Power Factor
85.5
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
7.5
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
OAO
Mounting
Round Body
Number of Speeds
3 Speed
Approximate Weight
17lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
10.25"
NEMA Design
-
Degree of Protection (IP)
IP10
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.5"
Shaft Length
4"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
