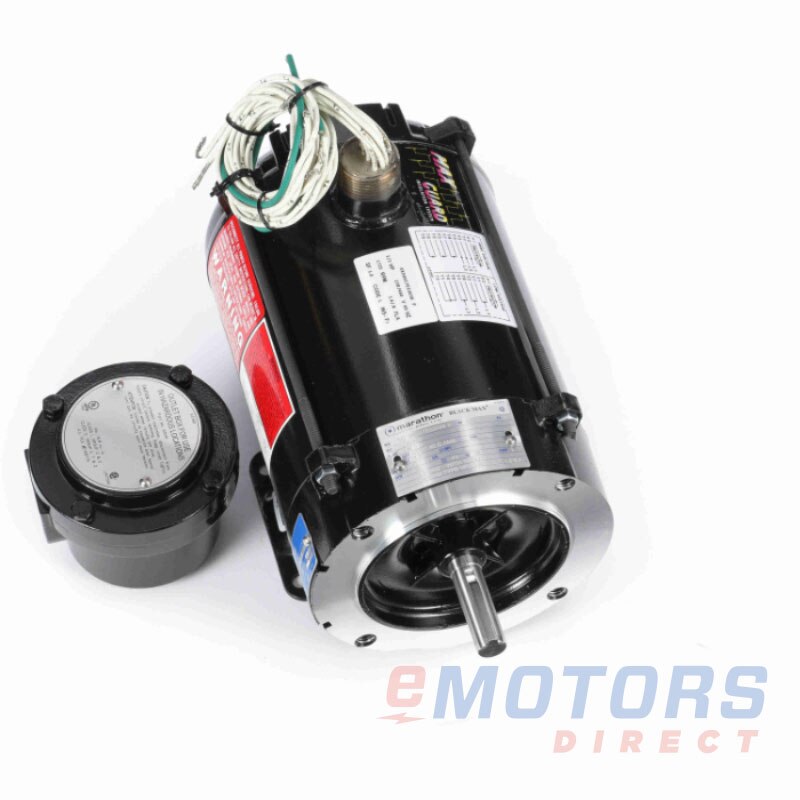

Leeson Y602

Leeson
1/2 HP 1725 56C TENV-XP 230V|460V Explosion Proof
Catalog Number: Y602
Part Number: 056H17E5303
HP
1/2
RPM
1800
Voltage
230V,460V
Frame
56C
Phase
3
Enclosure
TENV-XP
Material
Rolled Steel
Mounting
C-Face / Rigid

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Factory Ordered: 3-5 weeks
Mississauga, ON: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

For use in material handling, machine tools, conveyors, crane & hoist, and other variable speed applications requiring up to 1000:1 constant torque speed range, to be installed in hazardous environments as defined by the motor’s explosion proof class and group rating. Refer to the General Information sections contained in this catalog for information on explosion proof classifications. Consult the National Electrical Code and your local regulations for the proper selection of motors in hazardous locations.

Feature

  • MAX GUARD® Class F insulation system
  • Constant torque operation from 0 to base speed on vector drive
  • Constant horsepower operation up to twice base RPM
  • Continuous duty at 40ºC ambient
  • Optimized for operation with IGBT inverter (NEMA® Design A)
  • Normally closed thermostats (one per phase, Class F)
  • Ball bearings
  • Top mount (F3) conduit box included, shipped loose
  • No encoder provisions provided
  • Meets temperature code T3B
  • UL listed, under file #E12044
  • CSA certified, under file numbers LR47504 and LR21839
  • Three year warranty
Electrical Data
Rated Motor Output Power
1/2 HP
.37 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
1.6/0.80 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
L
Nominal Efficiency
80
Nominal Power Factor
72
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TENV-XP
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
31lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.47"
NEMA Design
-
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3B
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
2"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
3-Year
