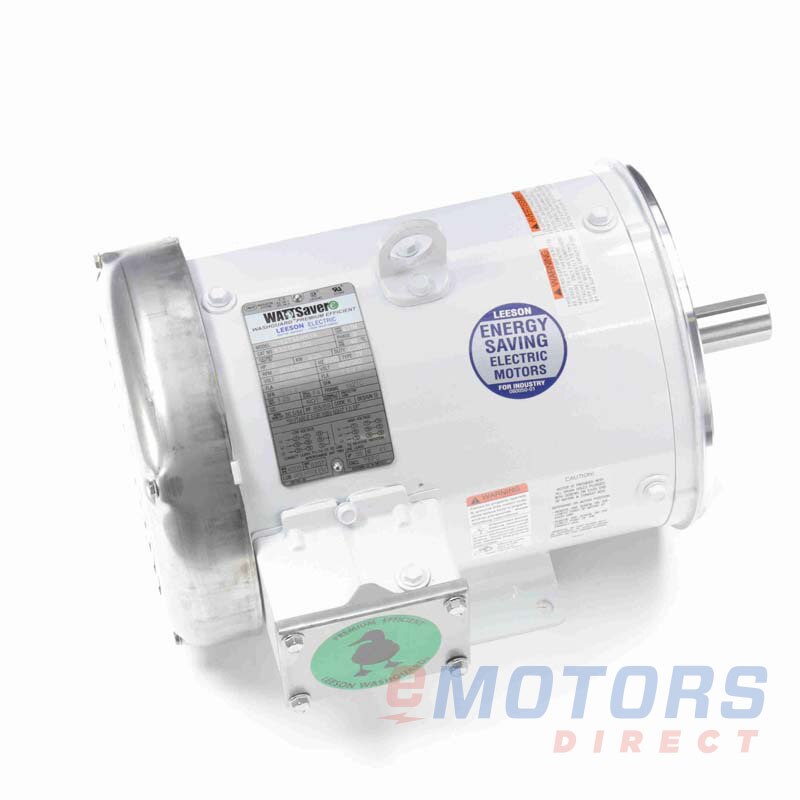

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Marathon 132199.00

Marathon
3 HP 3600 182TC TEFC 230V|460V Washdown
Catalog Number: 132199.00
Part Number: 132199.00
Model Number: C182T34WK1A
HP
3
RPM
3600
Voltage
230V,460V
Frame
182TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
3 HP
2.2 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
8.2-7.6/3.8 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
K
Nominal Efficiency
86.5
Nominal Power Factor
88
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
182TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
80lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
14.97"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6207
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
