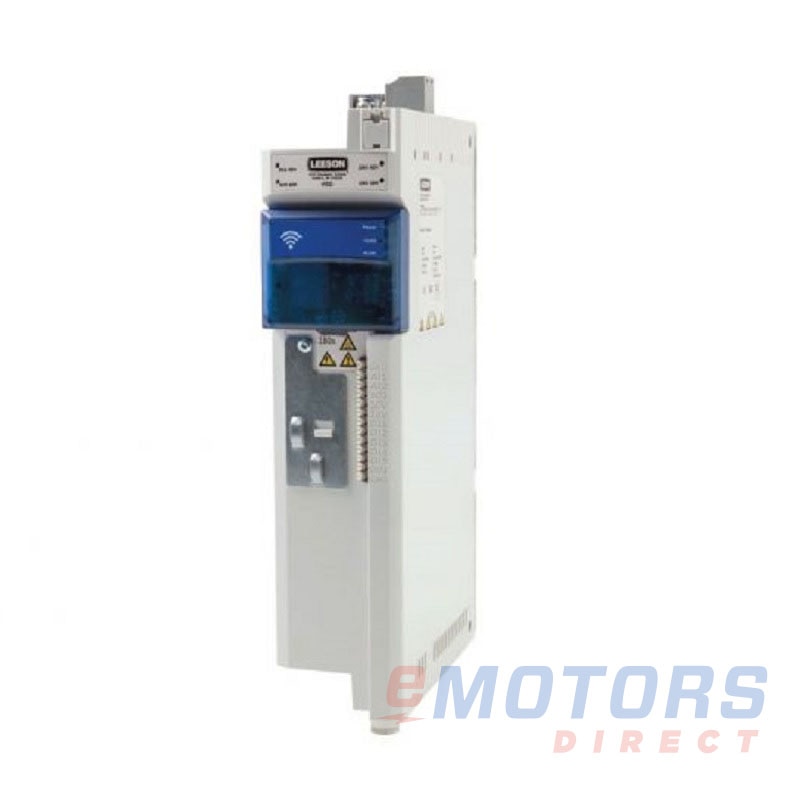

Marathon 176108.00

Marathon
1HP 230V 1|3 PHASE INPUT 230V 3 PHASE OUTPUT PLATINUM VSD SERIES
Catalog Number: 176108.00
HP
1
Input Voltage
230V
Output Voltage
230V
Input Phase
1, 3
Enclosure
NEMA 1
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #2], AB: In Stock (1)
Factory Ordered: Out of Stock
Mississauga, ON: Out of Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Overview

The Platinum VSD is recommended in applications for pumps and fans, conveyors, formers, winders and machine tools.The wide-ranging modular system enables various product configurations depending on machine requirements

Electrical Data
HP CT Rating
1 HP
HP VT Rating
2 HP
Input
Output
Voltage
230V
230V
Max CT Current
3.24
4.2
Max VT Current
-
-
Phase
1,3
3
Hz Range
45-65
0-599
Physical Data
Weight
-
Height
7.09"
Width
2.36"
Depth
5.12"
Enclosure
NEMA 1
Degree of Protection (IP)
IP20
Frame
-
Ambient Temp
-10°C - 55°C
Additional Data
Agency Approvals
UL & CE
Country of Origin
-
Warranty
1-Year
