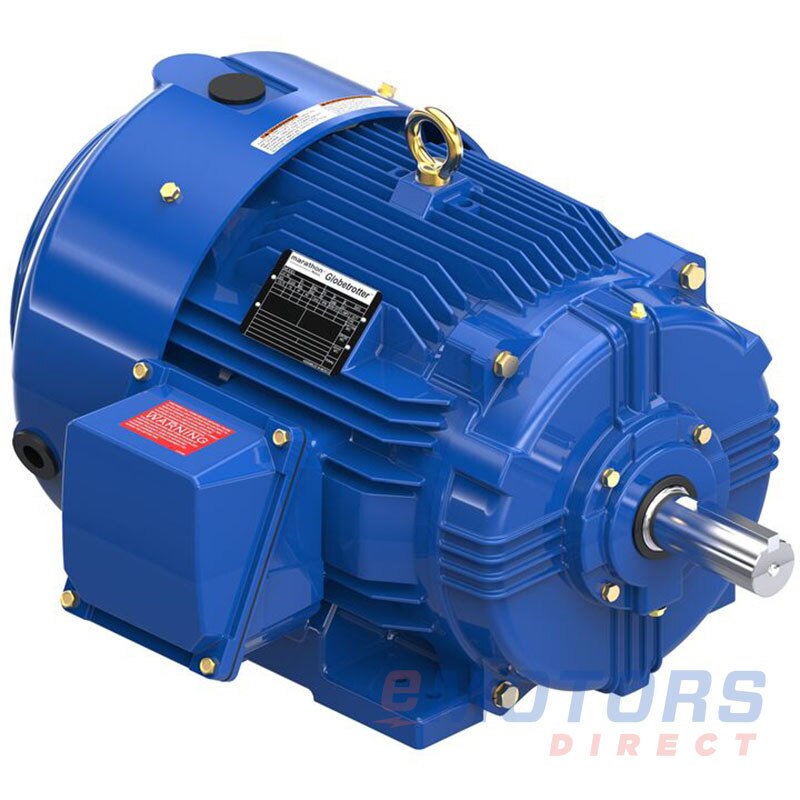

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Marathon E491A

Marathon
30HP 1770 286T 230V/460V Severe Duty Motors
Catalog Number: E491A
Part Number: 286TTFCD6570
Model Number: 286TTFCD6570CC
HP
30
RPM
1800
Voltage
230V, 460V
Frame
286T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid
Ships in 3 to 5 business days

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: In Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
30 HP
22.4 kW
Rated Motor Speed
1770 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
71.0/35.5 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
93.6
Nominal Power Factor
84
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
286T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1/F2
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6311
NDE Bearing
6211
Shaft Diameter
1.875"
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
CSA, UL & CE
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
MEXICO
