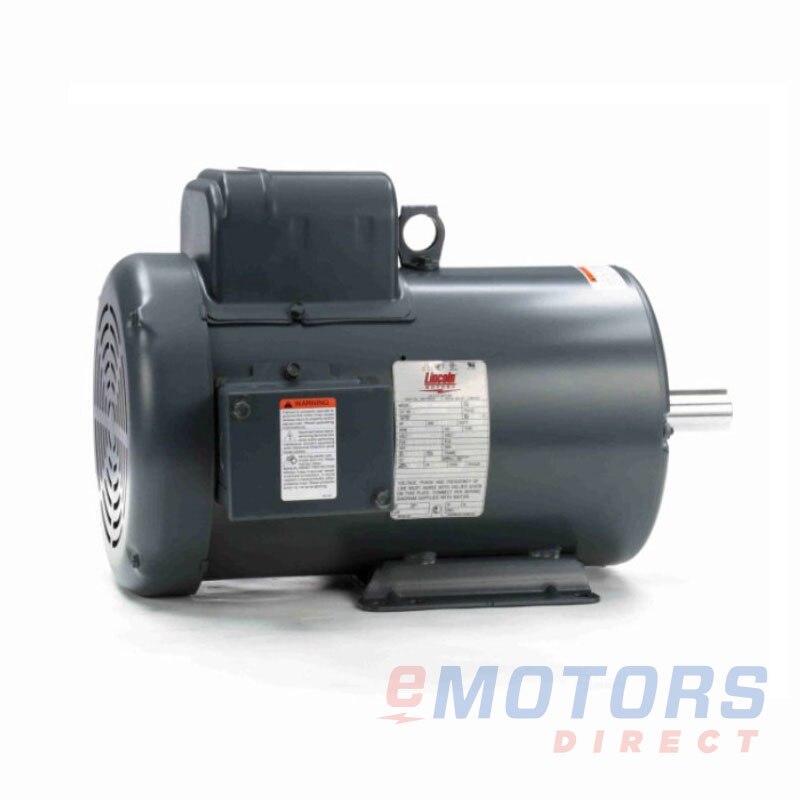

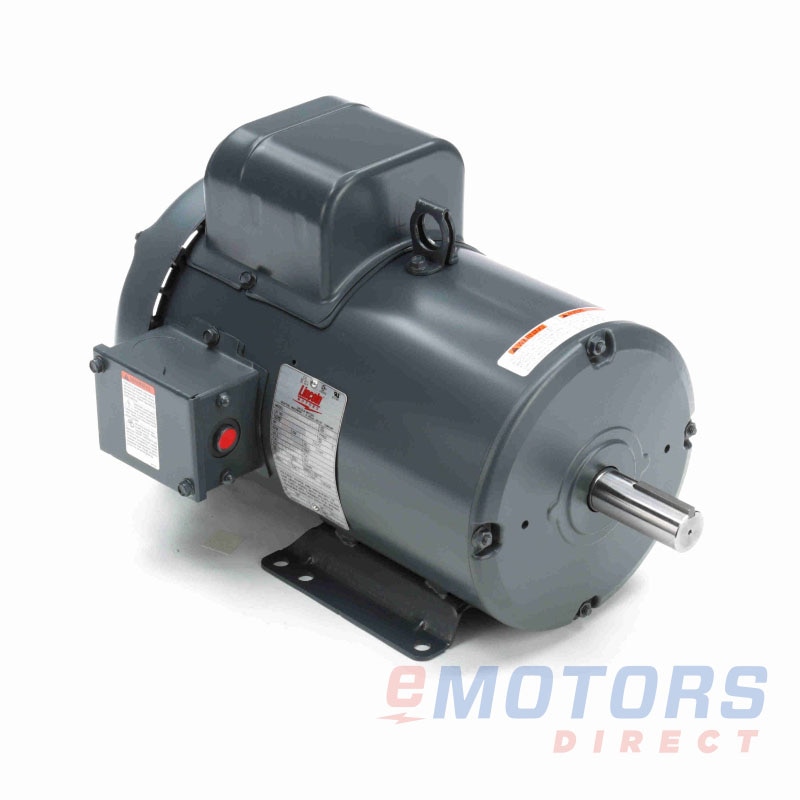

Marathon LM24802

Marathon
5HP 1755 184T TEFC 230V Farm Duty
Catalog Number: LM24802
Model Number: SSF4S5T1B6008AP8TP1
HP
5
RPM
1800
Voltage
208-230V
Frame
184T
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Feature

  • Premium efficient designs
  • Double sealed ball bearings
  • Shaft flinger - output shaft
  • Normally closed thermostat protected
  • Weep holes provide condensation drains
Electrical Data
Rated Motor Output Power
5 HP
3.75 kW
Rated Motor Speed
1755 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
21.8 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
23.8
Service Factor
1.15
KVA Code
K
Nominal Efficiency
84
Nominal Power Factor
89
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
139lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
17.36"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & CE
Country of Origin
-
Warranty
1-Year
