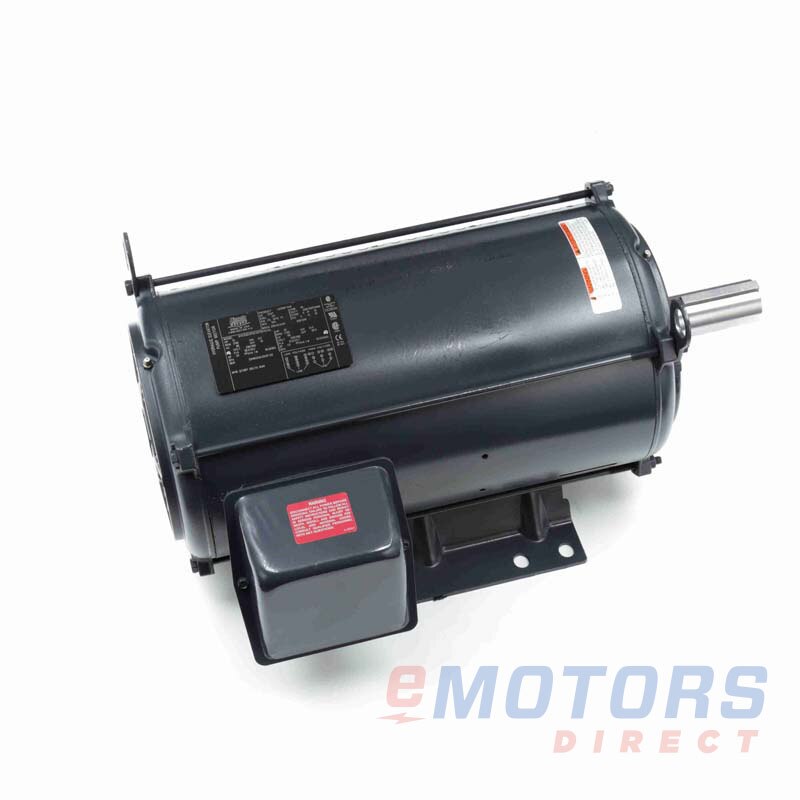

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Marathon LM28874

Marathon
15 HP 1800 254T ODP 230V|460V General Purpose
Catalog Number: LM28874
Part Number: LM28874
Model Number: SSD4P15/20T61YEH2
HP
15
RPM
1800
Voltage
230V,460V
Frame
254T
Phase
3
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
15 HP
11.2 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
38.5/19.2 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
E
Nominal Efficiency
91
Nominal Power Factor
80.2
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
254T
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
205lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
22.32"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
120 Starts / 80 Hours
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
309
NDE Bearing
208
Shaft Diameter
1.625"
Shaft Length
4.0"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
USA
Warranty
1-Year
