Product images are for reference only. Please review product specifications for the most accurate and detailed information.

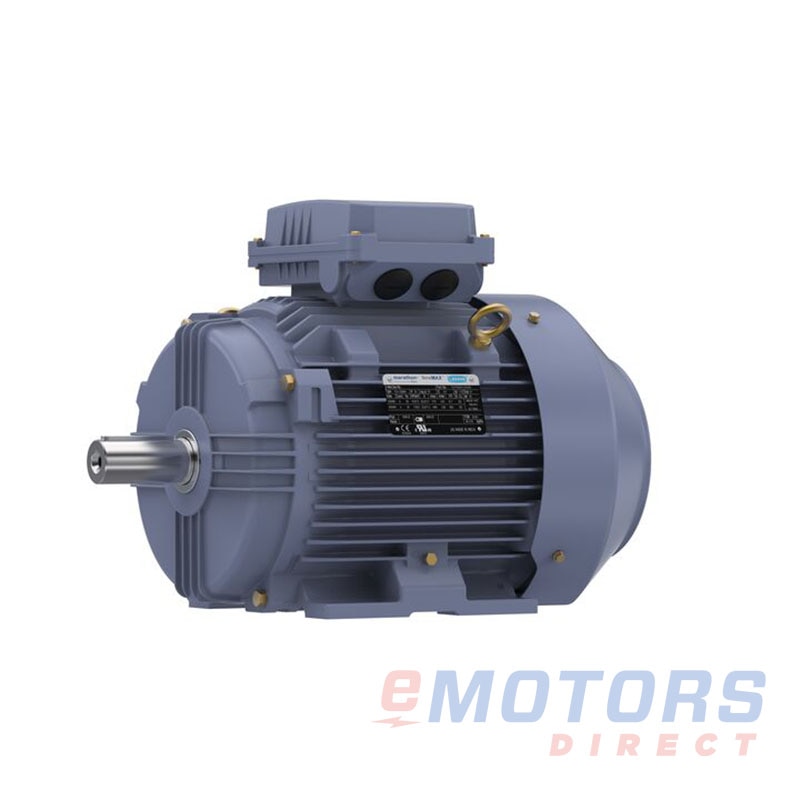

Marathon R330B

Marathon
10HP 3540 132S 230V/460V IEC Metric Motors
Catalog Number: R330B
Part Number: TCA7P51AE211GAA009
Model Number: TCA7P51AE211GAA009
HP
10
RPM
3600
Voltage
230V,460V
Frame
132S
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
B3

Ships in 3 to 5 business days

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: In Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
10 HP
7.5 kW
Rated Motor Speed
3540 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
23.8/11.9 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
J
Nominal Efficiency
90.2
Nominal Power Factor
88
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
132S
Enclosure
TEFC
Mounting
B3
Number of Speeds
-
Approximate Weight
187lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
18.31"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F3
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6308
NDE Bearing
6208
Shaft Diameter
1.496"
Shaft Length
3.15"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
UL & CE
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UL & CE
Country of Origin
INDIA
Warranty
-
