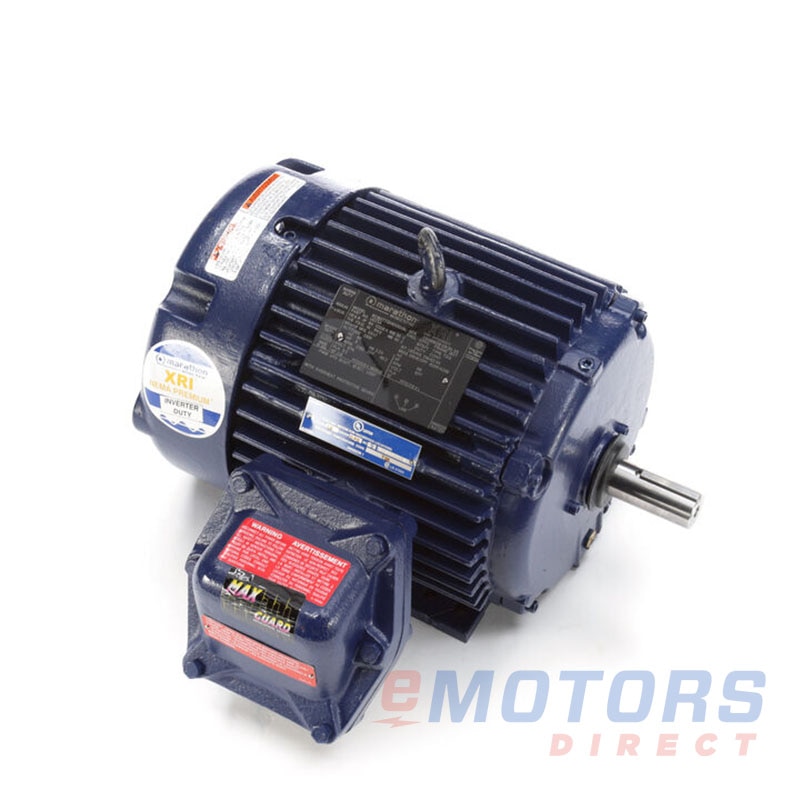

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Marathon U023B

Marathon
3HP 1762 182T 575V Explosion Proof
Catalog Number: U023B
Part Number: 182TTGCD6530
Model Number: 182TTGCD6530AA
HP
3
RPM
1800
Voltage
575V
Frame
182T
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
Rigid
Ships in 3 to 5 business days

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: In Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
3 HP
2.2 kW
Rated Motor Speed
1762 RPM
Rated Motor Voltage
575V
Rated Motor Current
3.2 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
K
Nominal Efficiency
89.5
Nominal Power Factor
78
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
182T
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
50 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6206
Shaft Diameter
1.125"
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
CSA & UL
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
MEXICO
