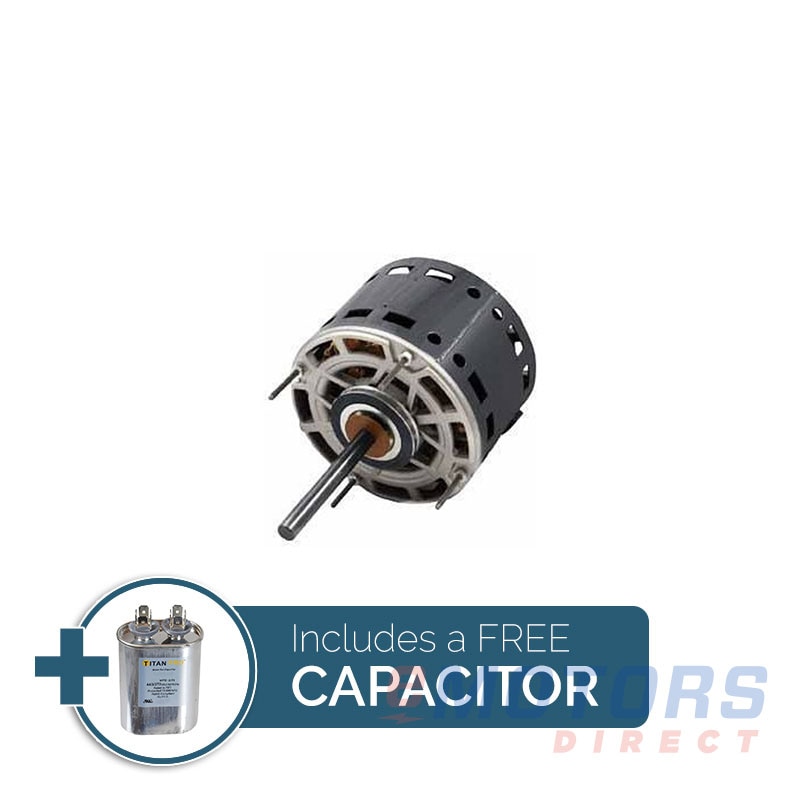

Packard 43585

Packard · Furnace Motor
1/3 HP 1075 48 Fr OAO 115V
Capacitor Included: TOCF5
Catalog Number: 43585
Alternative Number: 63985
HP
1/3
RPM
1200
Voltage
115V
Frame
48
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Belly Band,Hub,Thru Bolt

Product-line overview

Dominating the HVACR industry since 1959, Packard’s line of furnace motors and draft inducers are an optimal choice for your indoor air comfort. With their selection of frame sizes, mounting options, and voltage inputs, you’ll find a furnace motor solution no matter how unique the application.

Ships next business day — In Stock (2)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (2)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (2)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
CENTURY DL1036, FDL1036, 323P448
EMERSON1864, 5460
NIDEC1864
AO SMITH 323P448
BROWNELL MTG3585
CARRIER HC41MZ116, HC41SE115, P257-3585, T257-3585
COMPONENT MTG-3585
DIVERSITECH WG840585
EC MAX 46013
ECONOMASTER EM3585
EMBRACO E203
ESSEX BROWNELL MTG3585
FASCO D-727, D727
FIRST CHOICE Y4638
GEM EM3585
GEMLINE EM3585
GENERAL ELECTRIC 3985, 5KCP39LG9683, 3385, 5KCP39HGAA37, 5KCP39JGN653
GLOBAL S3585
GRAINGER 4M098
ICP 1162859
LENNOX 20P7001, 89E3501
MARS 3585, 3385, 10585, 3985
NORDYNE 1-170, 01-0170
PACKARD 63985
R.E. MICHEL 1E510C
RE MICHEL 1E510C
RHEEM 51-24435-85, 51-23013-31, 51-24433-85, 51-23012-41
ROTOM DD3585, R43585, DD-3585
SMART SE3585, SE3466, 235262, SE3463
SMITH DL1036
SOURCE 1 FHM3585, S1-FHM3585
TOPTECH TT-E33-3SP1
TRANE M0T-11725, MOT7967, MOT6114, MOT12883, MOT06114, M0T-7967, M0T-6114, M0T-12883, M0T-13174, M0T-6128, D340126P02, MOT11725, MOT13174, MOT6128
UNIVERSAL 532, U532
UPG S1-DL1036
WAGNER WG840585

Description

Packard has the most complete and comprehensive stocking list of aftermarket and direct OEM replacement motors. This motor is designed for continuous air over applications, such as furnace blowers or central air handling units with single shaft requirements. It replaces an ideal replacement for GE / Emerson / Century / Fasco / Carrier / Rheem / Trane / Mars / Lennox / Brownwell / Rotom / Nordyne motors.

Features

  • 48 Frame
  • Reversible rotation
  • Automatic overload
  • Single phase
  • 5 5/8” diameter
  • Permanent split capacitor
  • Standard efficiency designs
  • 4 ½” shaft extension
  • Extended thru bolts on shaft end
  • 2 ½” resilient ring
Electrical Data
Rated Motor Output Power
1/3 HP
Rated Motor Speed
1075 RPM
Rated Motor Voltage
115V
Rated Motor Current
6.00 AMP
Phase
1
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
OAO
Mounting
Belly Band,Hub,Thru Bolt
Number of Speeds
3 Speed
Approximate Weight
12.15lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
Sleeve
Shaft Diameter
0.5"
Shaft Length
4.0"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
CHINA
Warranty
1-Year
