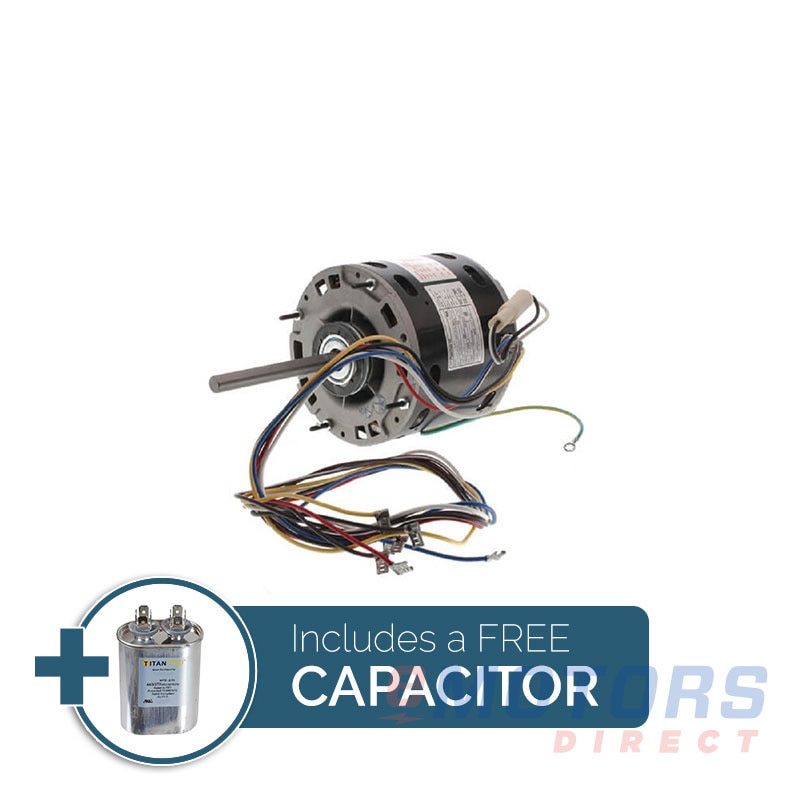

Packard 45461

Packard · Furnace Motor
1/2 HP 1075 48 Fr OAO 208-230V
Capacitor Included: TOCF10
Catalog Number: 45461
HP
1/2
RPM
1200
Voltage
208-230V
Frame
48
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Belly Band,Hub,Thru Bolt

Product-line overview

Dominating the HVACR industry since 1959, Packard’s line of furnace motors and draft inducers are an optimal choice for your indoor air comfort. With their selection of frame sizes, mounting options, and voltage inputs, you’ll find a furnace motor solution no matter how unique the application.

Ships next business day — In Stock (1)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (1)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
EMERSON 3315
FIRST CHOICE Y4648
GENTEQ 3464
MARS 22464
NIDEC 3315
RHEEM 51-23022-41
SOURCE 1 FHM3464, S1-FHM3464
TOPTECH TT-E50-MSP2
US MOTORS 3315

Description

Packard has the most complete and comprehensive stocking list of aftermarket and direct OEM replacement motors. This motor replaces Emerson 5461 and Rheem 51-23022-41.

Features

  • Permanent Split Capacitor
  • Multiple Capacitor/Speed Combinations
  • Four Speed
  • Sleeve Bearing
  • Continuous Duty, Air over
  • Mounting Rings & Thru Bolts
  • Holes in Shell for Rheem Mounting
  • Class B Insulation
  • Reversible Rotation
  • Automatic Overload
  • 48 Frame
  • Single Phase
  • 60 Hz
Electrical Data
Rated Motor Output Power
1/2 HP
Rated Motor Speed
1075 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
2.90-2.50-1.80-1.40-1.30 AMP
Phase
1
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
OAO
Mounting
Belly Band,Hub,Thru Bolt
Number of Speeds
4 Speed
Approximate Weight
14.95lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
Sleeve
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
CHINA
Warranty
1-Year
