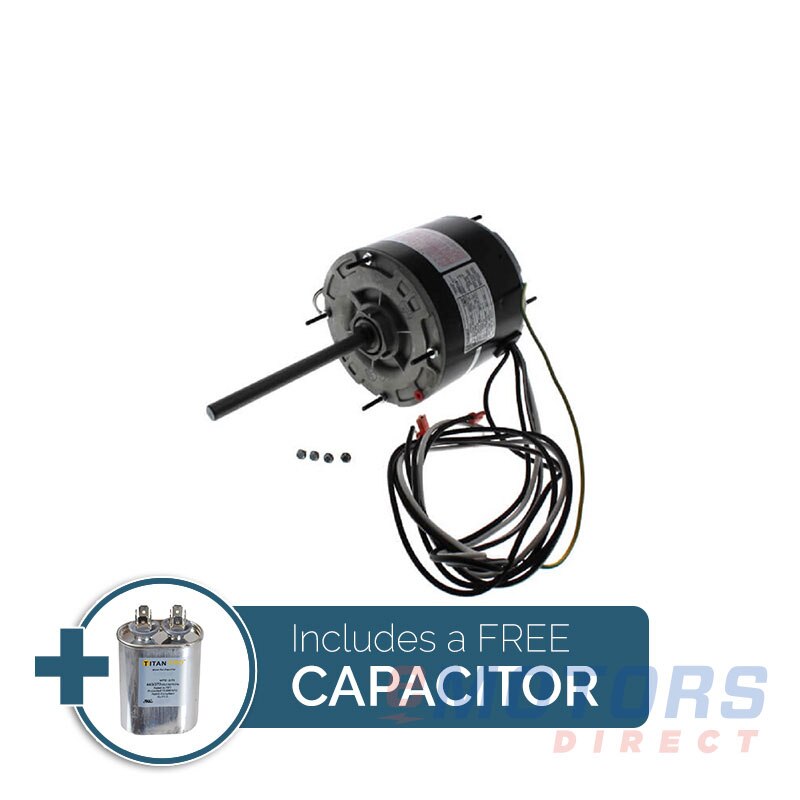

Packard 45488B

Packard · Furnace Motor
1/4 HP 825 48 Fr TENV 208-230V
Capacitor Included: TOCF7.5
Catalog Number: 45488B
HP
1/4
RPM
900
Voltage
208-230V
Frame
48
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Belly Band,Thru Bolt

Product-line overview

Dominating the HVACR industry since 1959, Packard’s line of furnace motors and draft inducers are an optimal choice for your indoor air comfort. With their selection of frame sizes, mounting options, and voltage inputs, you’ll find a furnace motor solution no matter how unique the application.

Ships next business day — In Stock (1)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (1)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
EMERSON1874, 5464
NIDEC1875, 5431
US MOTORS1875, 1874, 5431
DIVERSITECH WG840204
GENERAL ELECTRIC 3459, 3469, 4369
MARS 10459, 10469, 3459, 3469
RHEEM 51-23054-13, 51-23055-12, 51-20760-11, 51-21276-01
SMART 247981
TOPTECH TT-C33-MSP3

Description

Packard has the most complete and comprehensive stocking list of aftermarket and direct OEM replacement motors. It is designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting. It replaces Rheem and Other Condenser Motors.

Features

  • Permanent split capacitor
  • Mounts by belly band, thru bolts or Rheem mounting holes with screws
  • Single speed
  • TENV
  • Single phase
  • 48 Frame
  • 60 Hertz
  • Ball bearings
  • Electrically reversible
  • All angle mounting
  • Automatic overload
Electrical Data
Rated Motor Output Power
1/4 HP
Rated Motor Speed
825 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
1.8-2.0 AMP
Phase
1
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
TEAO
Mounting
Belly Band,Thru Bolt
Number of Speeds
1 Speed
Approximate Weight
14.6lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
Ball
Shaft Diameter
0.5"
Shaft Length
6.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
CHINA
Warranty
1-Year
