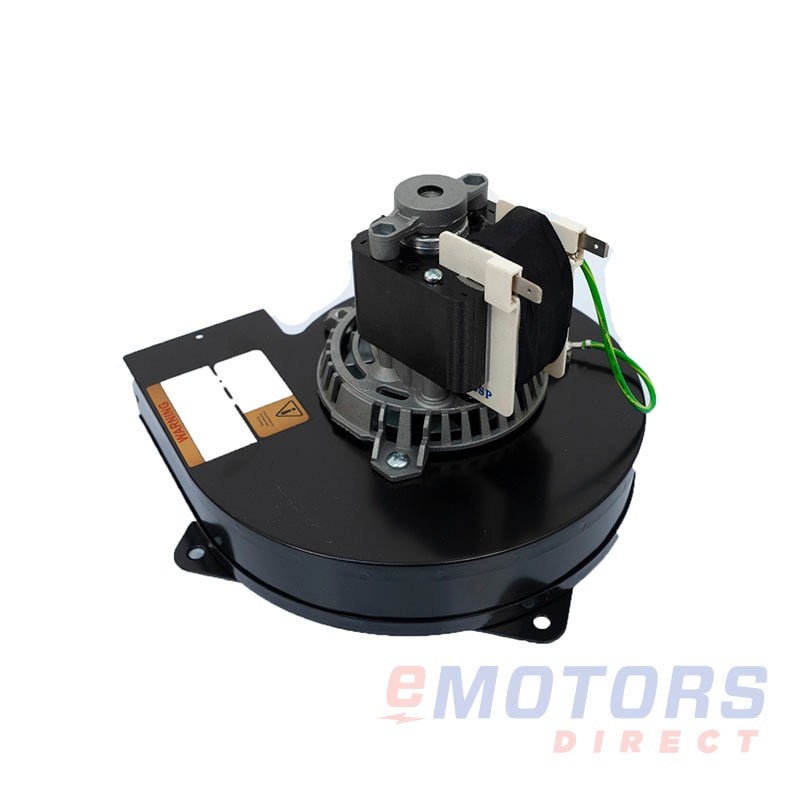

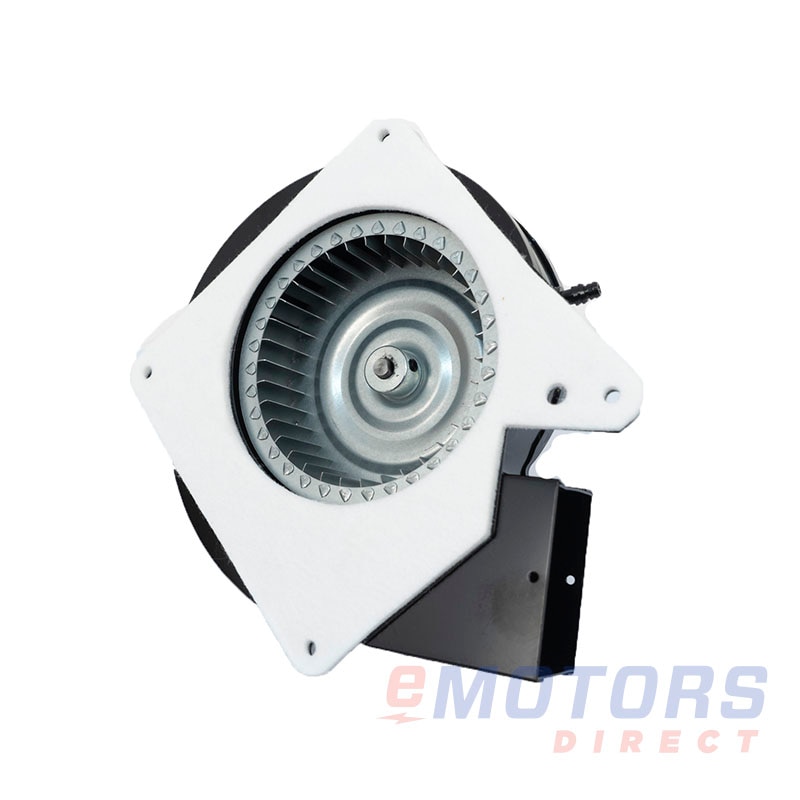

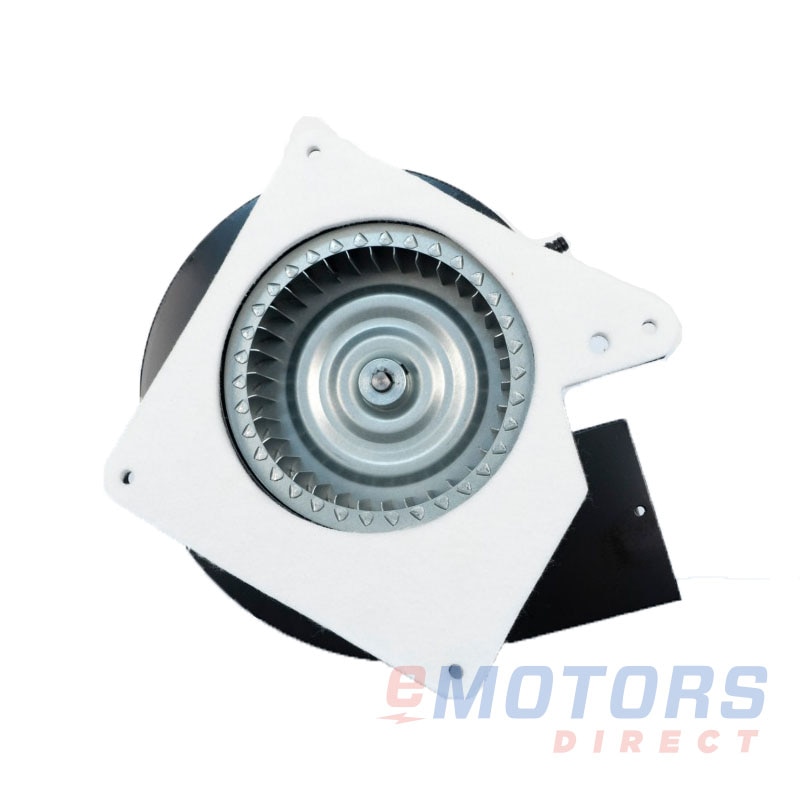

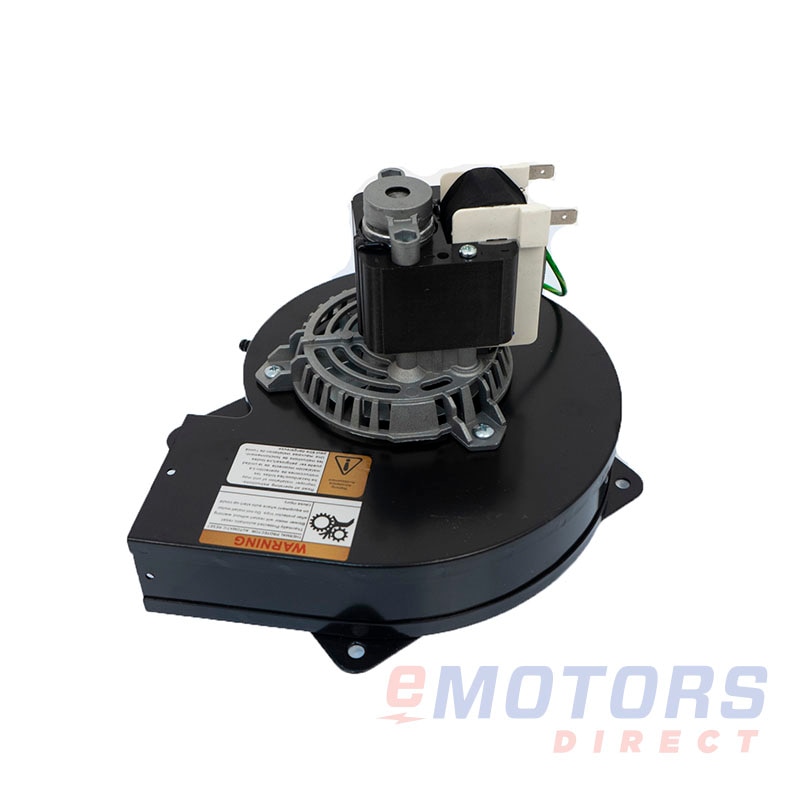

Packard 66002

Packard · Draft Inducers
1/35 HP 3000 C-Frame Open 115V Shaded Pole
Catalog Number: 66002
HP
1/35
RPM
3600
Voltage
115V
Frame
C-frame
Phase
1
Enclosure
Open
Material
Rolled Steel
Mounting
Draft Inducer

Product-line overview

Dominating the HVACR industry since 1959, Packard’s line of furnace motors and draft inducers are an optimal choice for your indoor air comfort. With their selection of frame sizes, mounting options, and voltage inputs, you’ll find a furnace motor solution no matter how unique the application.

Ships next business day — In Stock (3)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (3)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Features

  • Replaces Goodman # 0131M00002PSP
  • Shaded Pole
  • Ball Bearing
  • Automatic Overload
  • 60 Hz
  • Gasket Included
Electrical Data
Rated Motor Output Power
1/35 HP
.021 kW
Rated Motor Speed
3000 RPM
Rated Motor Voltage
115V
Rated Motor Current
1.2 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
C-frame
Enclosure
Open
Mounting
Draft Inducer
Number of Speeds
1 Speed
Approximate Weight
4.65lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
4.3"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
H
Rotation
-
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
Ball
NDE Bearing
Ball
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
