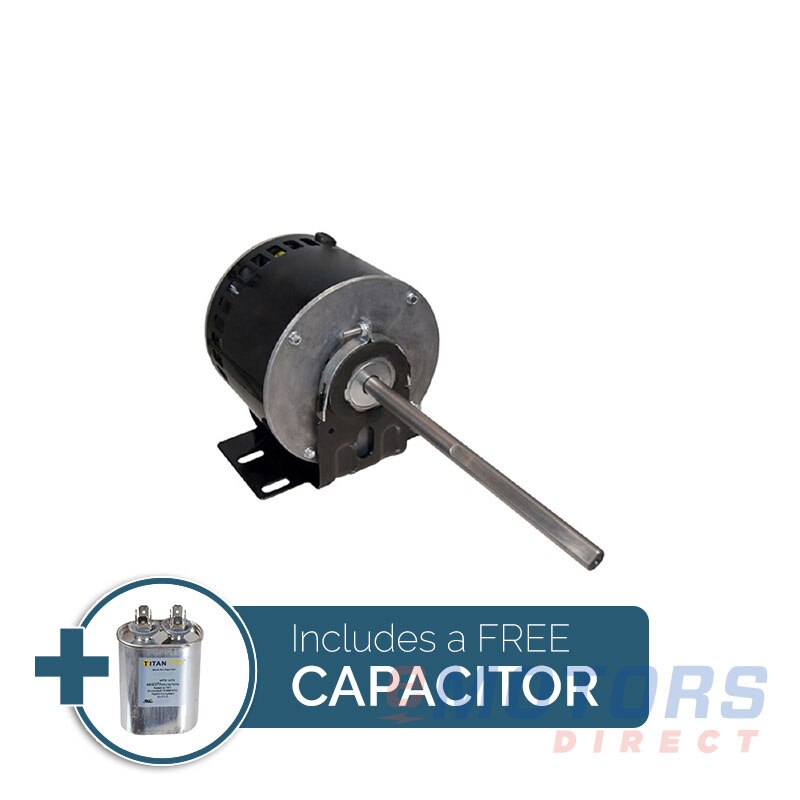

Packard 82201

Packard · Furnace Motor
1/4 HP 1145 48 Fr ODP 208-230V
Capacitor Included: TOCF5
Catalog Number: 82201
Alternative Number: 80201
HP
1/4
RPM
1200
Voltage
208-230V
Frame
48
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Resilient

Product-line overview

Dominating the HVACR industry since 1959, Packard’s line of furnace motors and draft inducers are an optimal choice for your indoor air comfort. With their selection of frame sizes, mounting options, and voltage inputs, you’ll find a furnace motor solution no matter how unique the application.

Ships next business day — In Stock (3)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (3)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
FIRST M201B
FIRST COMPANY M201B, 18-30WCU
JS S81-704
PACKARD 80201

Description

Packard has the most complete and comprehensive stocking list of aftermarket and direct OEM replacement motors. This motor replaces Replaces First Company M201B.

Features

  • Permanent Split Capacitor
  • Requires 5 MFD/370V Capacitor
  • Base Mounted
  • Automatic Overload
  • Ball Bearing
  • Single Phase
  • 60 Hz
Electrical Data
Rated Motor Output Power
1/4 HP
Rated Motor Speed
1145 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
1.21 AMP
Phase
1
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
OAO
Mounting
Resilient
Number of Speeds
1 Speed
Approximate Weight
10lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
CWNDE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
Ball
Shaft Diameter
0.5"
Shaft Length
7.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
CHINA
Warranty
1-Year
