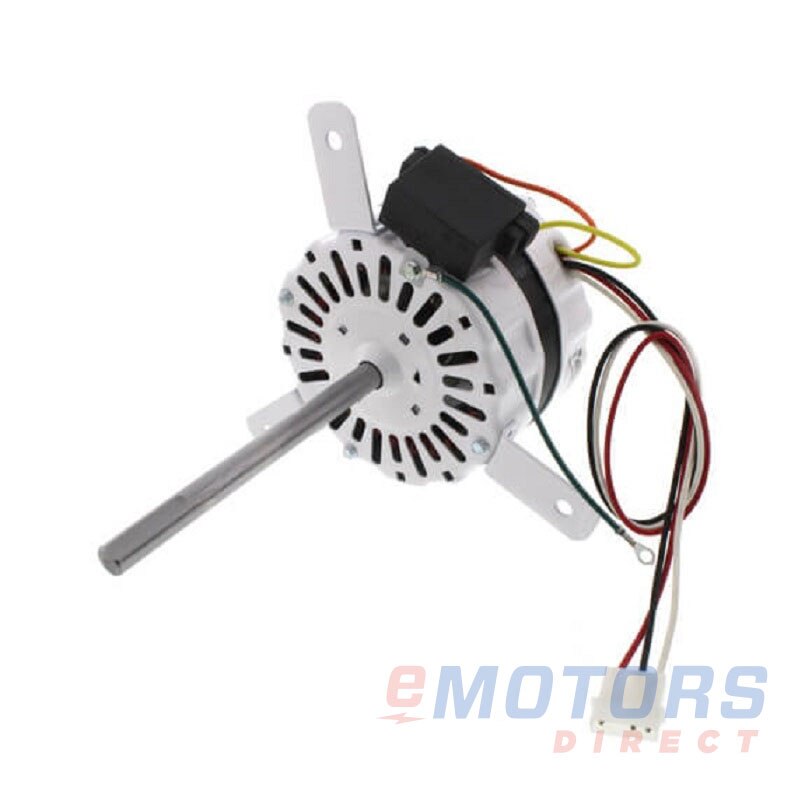

Packard 90620

Packard · Furnace Motor
5.0
1/11 HP 1500 ODP 115V
Catalog Number: 90620
HP
1/11
RPM
1800
Voltage
115V
Frame
4.4"
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Special

Product-line overview

Dominating the HVACR industry since 1959, Packard’s line of furnace motors and draft inducers are an optimal choice for your indoor air comfort. With their selection of frame sizes, mounting options, and voltage inputs, you’ll find a furnace motor solution no matter how unique the application.

Ships next business day — In Stock (1)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (1)

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
FASCO 7108-7007
GEMENI GC-620, GC-640
GEMINI GC-620, GC-640
JS S81-728
MCMILLAN A0416B2568, A0416B3807

Description

Packard has the most complete and comprehensive stocking list of aftermarket and direct OEM replacement motors. This motor is a direct replacement for Loren Cook Motor in GC-620, Fasco 7108-7007, McMillan Electric A0416B2568 / A0416B3807.

Features

  • Made in the USA
  • Sleeve Bearings
  • ODP Enclosure
  • Automatic Overload
  • Permanently lubricated sealed
  • 60 Hertz
Electrical Data
Rated Motor Output Power
1/11 HP
Rated Motor Speed
1500 RPM
Rated Motor Voltage
115V
Rated Motor Current
4.60 AMP
Phase
1
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
4.4"
Enclosure
OAO
Mounting
Special
Number of Speeds
2 Speed
Approximate Weight
10lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
CCWNDE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
Sleeve
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
USA
Warranty
1-Year
