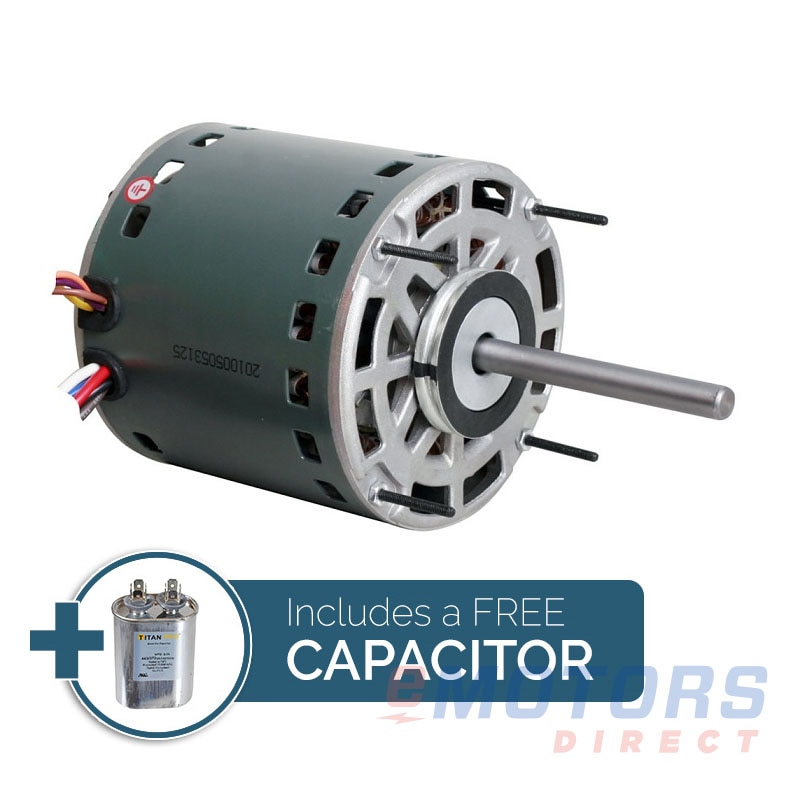

Rotom DD-3583

Rotom
1/4 HP 1075 48 Fr OAO 115V
Capacitor Included: TOCF5
Catalog Number: DD-3583
HP
1/4
RPM
1200
Voltage
115V
Frame
48Y
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Round Body,Stud

Ships next business day — In Stock (6)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (6)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
CENTURY DL1026
EMERSON 1863
FASCO D721
MARS 3583
Packard 43583
UNIVERSAL 533
X000


    Electrical Data
    Rated Motor Output Power
    1/4 HP
    Rated Motor Speed
    1075 RPM
    Rated Motor Voltage
    115V
    Rated Motor Current
    4.40 AMP
    Phase
    1
    Poles
    -
    Locked Rotor Current
    -
    Fl Current @ 208V
    -
    Service Factor
    -
    KVA Code
    -
    Nominal Efficiency
    -
    Nominal Power Factor
    -
    Leads (Qty, Size)
    -
    Frequency
    60 Hz
    Connection
    -
    Start Capacitor
    -
    Run Capacitor
    -
    MFD
    -
    VFD (S.F. 1.0)
    Ratio
    Hz
    Variable Torque
    -
    -
    Constant Torque
    -
    -
    General Data
    Frame
    48Y
    Enclosure
    OAO
    Mounting
    Round Body,Stud
    Number of Speeds
    3 Speed
    Approximate Weight
    11lb
    Double Drilled
    No
    Frame Material
    Rolled Steel
    C-Dimension
    -
    NEMA Design
    -
    Degree of Protection (IP)
    -
    Insulation Class
    B
    Rotation
    Reversible
    Duty
    -
    Conduit Box Location
    -
    Removable Feet
    No
    Orientation
    -
    Ambient Temp
    40°C
    Full Load Temperature Rise
    Full Load Temp Rise
    -
    Temp Code
    -
    Mechanical Data
    DE Bearing
    -
    NDE Bearing
    Sleeve
    Shaft Diameter
    0.5"
    Shaft Length
    4.0"
    Grease Type
    -
    Greaseable
    No
    Hazardous Locations
    CSA Certified
    -
    Temp Code (Sine Wave Power)
    -
    Temp Code (VFD Power)
    -
    Additional Information
    Agency Approvals
    -
    Country of Origin
    CHINA
    Warranty
    2-Year
