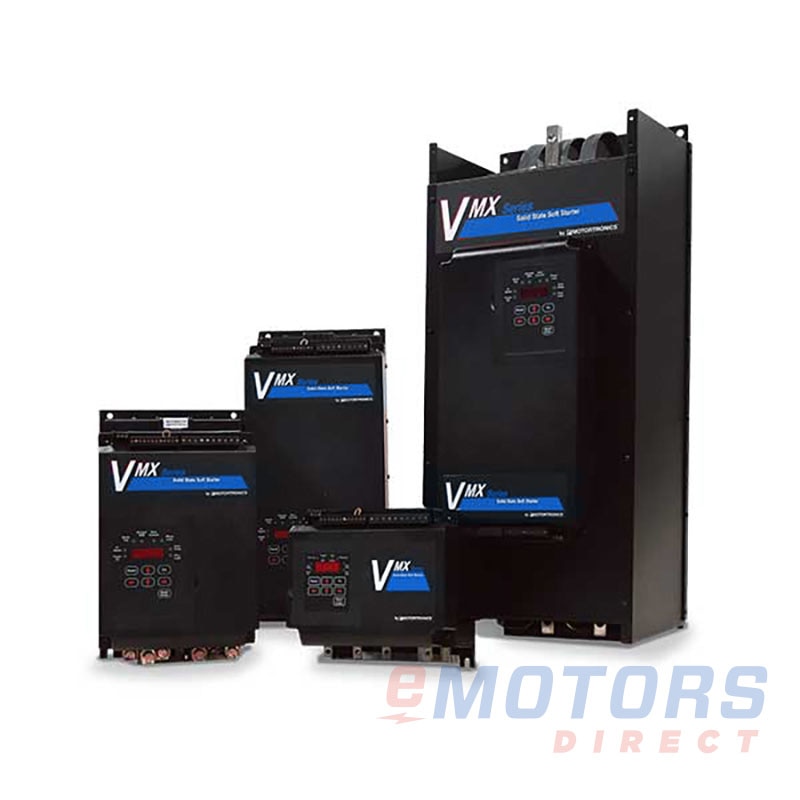

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

TECO-Westinghouse VMX2-275-BP

TECO Westinghouse · Soft Starters
275 AMP CHASSIS COMPACT MOTORTRONICS AC SOFT STARTER
Catalog Number: VMX2-275-BP
Alternative Number: VMX-275-BP
HP
100, 200, 250, 75
Input Voltage
200V, 230V, 460V, 575V
Enclosure
Chassis
Input Phase
3

Product-line overview

We offer a diverse line of Soft Starters to meet your application requirements. Our products range from 1HP to over 4000HP and are available in Open Chassis, NEMA 1 and NEMA 12 enclosures. We have a complete line of Low Voltage Soft Starters in stock in Canada.

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

Compact packaging has become critical in more and more electrical installations. The VMX Series meets this need without compromising features and ratings. By using a highly engineered packaging design and the latest generation microprocessor, all the control and protection features you need are in the VMX Series. Narrow and shallow dimensions are perfect for integrating the VMX Series into motor control centers (MCCs), pump control panels, and retrofit starter enclosures.

Feature

  • Line Voltage Range 200 to 600 VAC
  • 9 to 1250A Current Ratings
  • Current Ramp or Voltage Ramp, with Current Limit
  • Complete with Decel Control, Dual Ramp, Kick Start and Jog Modes
  • Integral up to Speed Bypass Contactor
  • PTC Thermistor Input
  • RS-485 Modbus – RTU Communications
  • 120 Volts AC Control
  • 24V DC Dry Contact Inputs, No External DC Power Supply Required
  • Chassis Mount
  • Standard Duty (500% O/L for 20 Sec) & Heavy Duty (500% O/L for 60 sec) Ratings Available
  • Multiple Ramps to Start Any Load
  • Built-In Deceleration Control, Dual ramp, Kick Start and Jog Modes
Electrical Data
Input Voltage
200V,230V,460V,575V
Input Phase
3
Frequency
60Hz
Duty
Standard
Heavy
Output HP @ 200
75 HP
60 HP
Output HP @ 230
100 HP
75 HP
Output HP @ 460
200 HP
150 HP
Output HP @ 575
250 HP
150 HP
Rated Current
275 AMP
220 AMP
Physical Data
Weight
140 lb
Height
28.1"
Width
12.5"
Depth
9.1"
Enclosure
Chassis
Frame
-
Ambient Temp
0 to 50°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
USA
Warranty
1-Year
