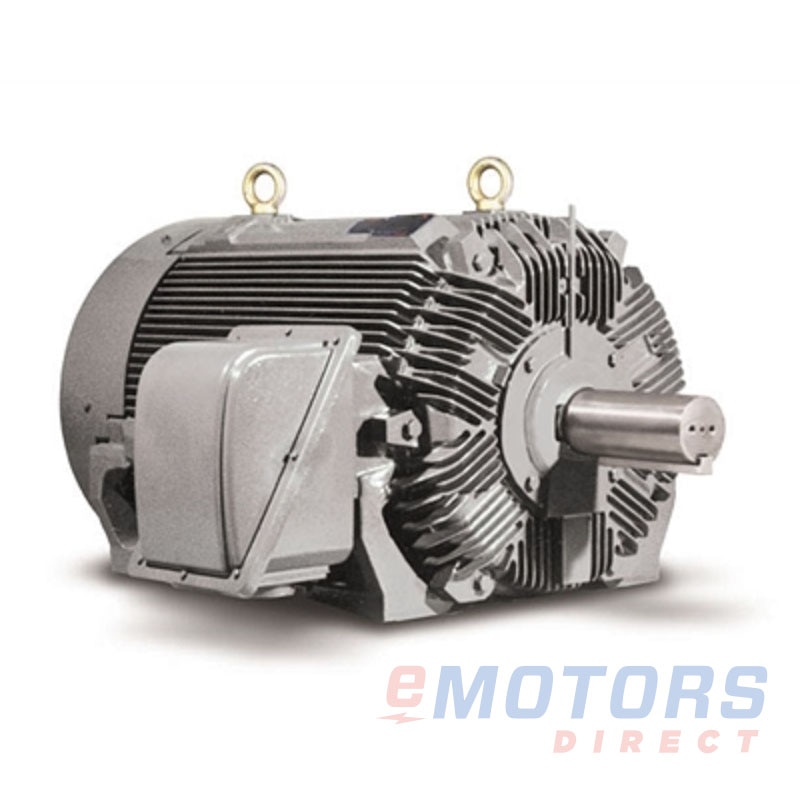

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

TECO Westinghouse HT4506R

TECO Westinghouse
450 HP 1200 RPM 460 V 5808C TEFC Crusher Duty
Catalog Number: HT4506R
HP
450
RPM
1200
Voltage
460V
Frame
5808C
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid
Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate or an alternate product recommendation.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
450 HP
337.5 kW
Rated Motor Speed
1200 RPM
Rated Motor Voltage
460V
Rated Motor Current
516.57 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
95.4
Nominal Power Factor
85.5
Leads (Qty, Size)
6
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
5808C
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
67.38"
NEMA Design
C
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
NU326C3
NDE Bearing
6322
Shaft Diameter
4.875"
Shaft Length
11.38"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
CHINA
Warranty
3-Year
