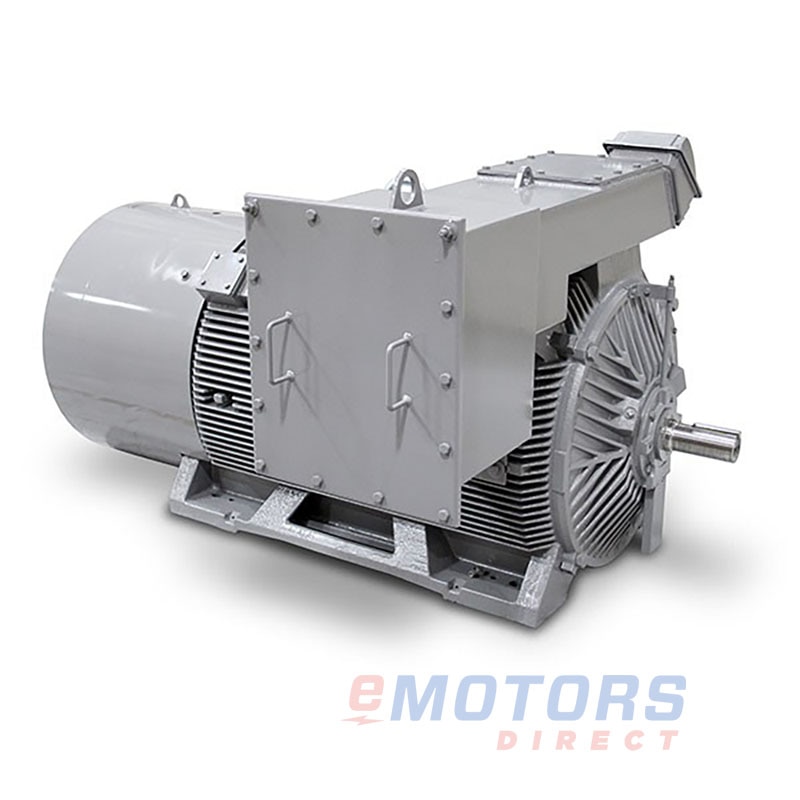

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New Overstock

TECO-Westinghouse XHP2504 Overstock

TECO Westinghouse
250HP 1800 5009B TEFC 2300V|4000V General Purpose AC Motor
Catalog Number: XHP2504 Overstock
HP
250
RPM
1800
Voltage
2300V, 4000V
Frame
5009B
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid
Final Sale Product

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Cambridge, ON: Out of Stock
Edmonton, AB: In Stock
Lachine, QC: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
250 HP
187.5 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
2300V,4000V
Rated Motor Current
56.93/32.74 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
95
Nominal Power Factor
86
Leads (Qty, Size)
6
Frequency
60 Hz
Connection
WYE/DELTA
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:01
6
Constant Torque
3:01
20
General Data
Frame
5009B
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
3450
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
68.83
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F3
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6324C3
NDE Bearing
6320C3-INS
Shaft Diameter
3.875
Shaft Length
11.62
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
CHINA
Warranty
1-Year
