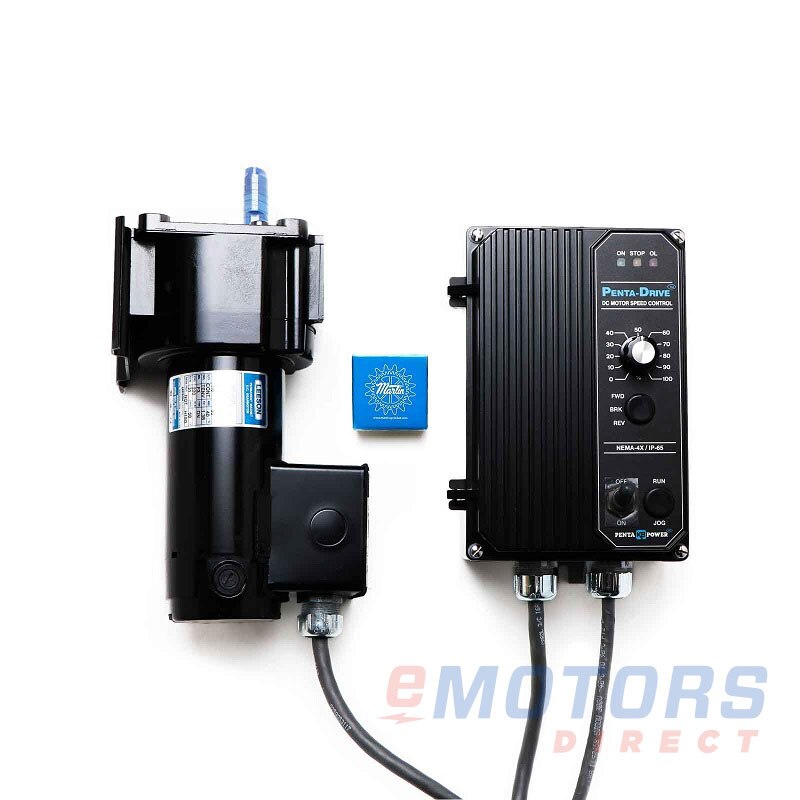

Vertec Grain Dryer Package

Leeson
1/8 HP 31 RPM GEARMOTOR, KBPC-240D Speed Control with 15 Feet Cable
Catalog Number: Vertec Grain Dryer Package
HP
1/8
Ratio
58:1
Voltage
90V
Output RPM
31
Max Output Torque
220 lbs-in

Ships next business day — In Stock (1)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (1)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.


    Electrical Data
    Rated Motor Output Power
    1/8 HP
    .1 kW
    Rated Motor Speed
    31 RPM
    Rated Motor Voltage
    90V
    Rated Motor Current
    1.4 AMP
    Phase
    DC
    Poles
    -
    Locked Rotor Current
    -
    Fl Current @ 208V
    -
    Service Factor
    1
    KVA Code
    -
    Nominal Efficiency
    67.2
    Nominal Power Factor
    -
    Leads (Qty, Size)
    -
    Frequency
    -
    Connection
    -
    Start Capacitor
    -
    Run Capacitor
    -
    Gear Data
    Ratio
    58:1
    Output Type
    Parallel Shaft
    Output Orientation
    -
    Output Shaft Diameter
    5/8"
    Output RPM
    31
    Max Output Torque
    220 lbs-in
    Max Overhung Load
    327 lbs
    Case Material
    Rolled Steel
    Type of Oil
    -
    General Data
    Category
    Gearing
    Frame Size
    30
    Enclosure
    TENV
    Mounting
    Special
    Approximate Weight
    20lb
    Frame Material
    Rolled Steel
    C-Dimension
    11.54"
    NEMA Design
    -
    Degree of Protection (IP)
    -
    Insulation Class
    F3
    Rotation
    Reversible
    Duty
    Continuous
    Conduit Box Location
    F3
    Removable Feet
    No
    Ambient Temperature
    40°C
    Full Load Temperature Rise
    -
    VFD (S.F. 1.0)
    Ratio
    Hz
    Variable Torque
    -
    -
    Constant Torque
    -
    -
    Mechanical Data
    DE Bearing
    6000
    NDE Bearing
    6000
    Additional Information
    Agency Approvals
    CSA, UL & CE
    Country of Origin
    -
    Warranty
    1-Year
