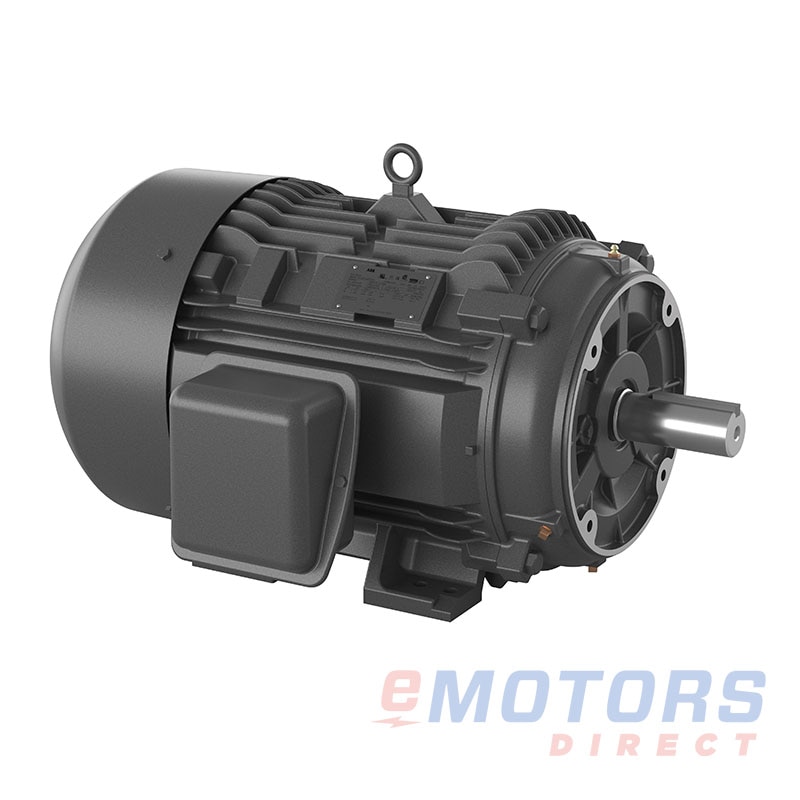

ABB NEMA Motors 1LE22211CA313EA3
ABB NEMA Motors · GP100 C-Face RigidProduct-line overview
The GP100 from ABB NEMA Motors features Class F insulation with a Class B temperature rise and is inverter-duty capable in accordance with NEMA MG1 Part 31.4.4.2. It offers NEMA Premium efficiency to reduce energy consumption and is built with a robust cast iron frame for long service life. The bidirectional cooling fan allows flexible motor rotation, while the motor’s IP55 enclosure protection covers frame sizes 140–250, and IP54 protection applies to frame sizes 280 and larger. Designed for dependable performance, it is ideal for demanding industrial applications such as pumps, fans, and compressors.Stock Locations
This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.
Need it Now?
See our for equivalent alternatives
Technical Support Available 8:30am-6:00pm EST
Call 1-800-890-7593Cross-Referenced Matches (10)
Equivalent alternatives from other brands that have matching specifications to this product.
Baldor CEM3613T-5
5 HP 3450 184TC TEFC 575V General Purpose AC Motors
CAD$1,227.45Ships next business dayBaldor CEM3663T-5
5 HP 3480 184TC TEFC 575V General Purpose AC Motors
CAD$1,692.45Availability: Factory Order (2-3 weeks)Brook Crompton BA2N005V5C
5 HP 3505 RPM 575 V 184TC TEFC Severe Duty Motors
CAD$581.25Ships next business dayMax Motion MPP-21-C
5 HP 3515 184TC TEFC 575V General Purpose
CAD$1,010.70Ships in 3 to 5 business days- New
Max Motion MPP-21C
5HP 3515 184TC 575V General Purpose AC Motors
CAD$936.75Ships next business day TECO-Westinghouse APH00525-C
5 HP 3600 184TC TEFC 575V General Purpose
CAD$1,129.93Ships in 3 to 5 business daysTECO-Westinghouse PDH00525-C
5 HP 3600 184TC TEFC 575V General Purpose W/C-Flange
CAD$987.56Ships in 3 to 5 business daysWEG CT005502NPW01
5 HP 3600 184TC TEFC 575V General Purpose AC Motors
CAD$1,128.64CAD$936.36Ships next business day- New
WEG CT005502NPW01V
5 HP 3600 575V 182TC|184TC TEFC General Purpose AC Motors
CAD$962.93CAD$754.29Ships next business day WEG CT005502NPW22
5 HP 3600 184TC TEFC 575V General Purpose AC Motors
(2)CAD$1,181.51Ships next business day
Product Line Review
There are no reviews for this product yet.
Be the first to write a reviewAbout ABB NEMA Motors
Manufactured by the globally trusted ABB, these NEMA-style motors are designed specifically for the needs of the Canadian market. ABB NEMA motors are designed to deliver reliable, safe, and energy-efficient performance across manufacturing, energy, mining, and many more sectors. ABB offers a comprehensive portfolio with options for a range of applications; from the lightweight aluminum-housed GP100A for general purpose use, to the robust DP200 Crush+ motors for the most demanding industrial applications. Modular and flexible in design, ABB NEMA motors provide the right motor for the job, close to your location, helping you maximize uptime, efficiency, and value.
Where are ABB NEMA Motors Manufactured?
In Canada, ABB NEMA motors are stocked in Toronto, Montreal, and Edmonton and ship Canada wide. Built in Guadalajara, Mexico, this facility has been producing high-quality motors since 1972, originally under Siemens. Since 2023, it has operated as an ABB factory following ABB’s acquisition of the Siemens low voltage NEMA motor business.
Key Features of ABB NEMA Motors
- Space-Saving Design: Motors up to frame size 400 feature symmetrical frames, allowing F1-to-F2 conversion by swapping endplates and rotor for tight installations.
- Built for Intermittent Overloads: NEMA T-frame TEFC motors are designed with a service factor of 1.15 or higher, providing peace of mind under varying loads. Some exceptions apply where noted.
- Versatile Mounting Options: Most cast iron foot-mounted motors (143T-145T, 182T-184T, etc.) come with dual mounting holes for flexible and easy installation.
- Direct Siemens Replacement: ABB NEMA motors maintain the same catalogue numbers as legacy Siemens units, making upgrades and replacements simple and hassle-free.
Whether you need a general purpose, severe duty, explosion proof, or pump motor, ABB NEMA electric motors provide durable, reliable performance and straightforward compatibility with legacy Siemens systems.
