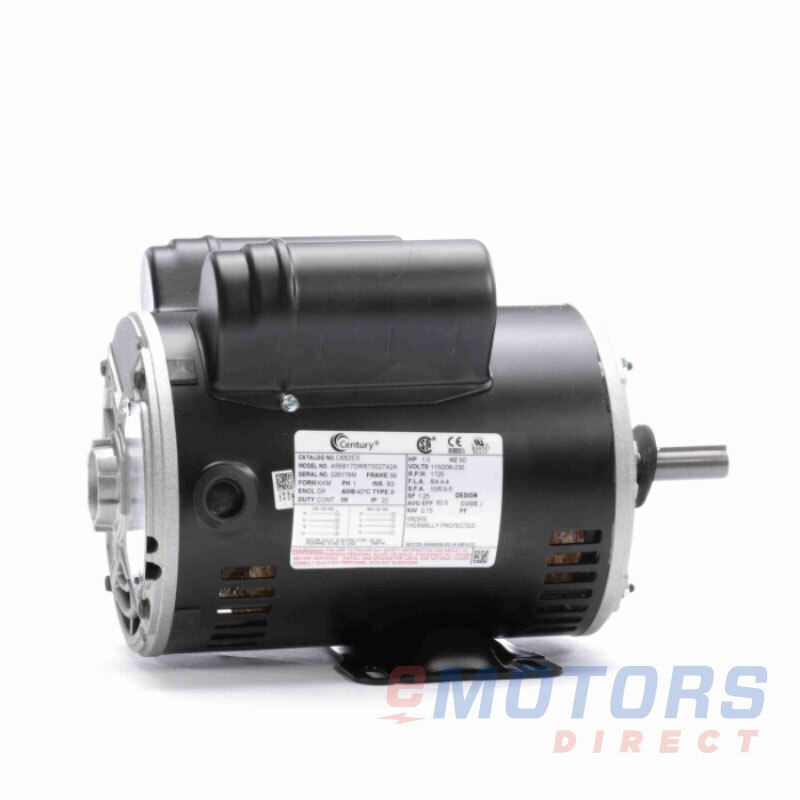

Century C682ES

Century · General Purpose Single Phase, ODP, Rigid Base
1 HP 1725 56 ODP 115V|208-230V General Purpose
Catalog Number: C682ES
HP
1
RPM
1800
Voltage
115V, 208-230V
Frame
56
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Product-line overview

These general purpose motors from Century offer dependable and energy efficient operation. They are high-quality motors built for Canada’s top industries. Find OAO, ODP, TEAO, TEFC, TENV enclosure types, and single- or 3-phase power input. Plus, a range of mounting options for your application.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Feature

  • Heavy gauge steel frame and base
  • Ball bearings
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
8.0/4.4-4 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
4.4
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.49"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
Ball
NDE Bearing
Ball
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
