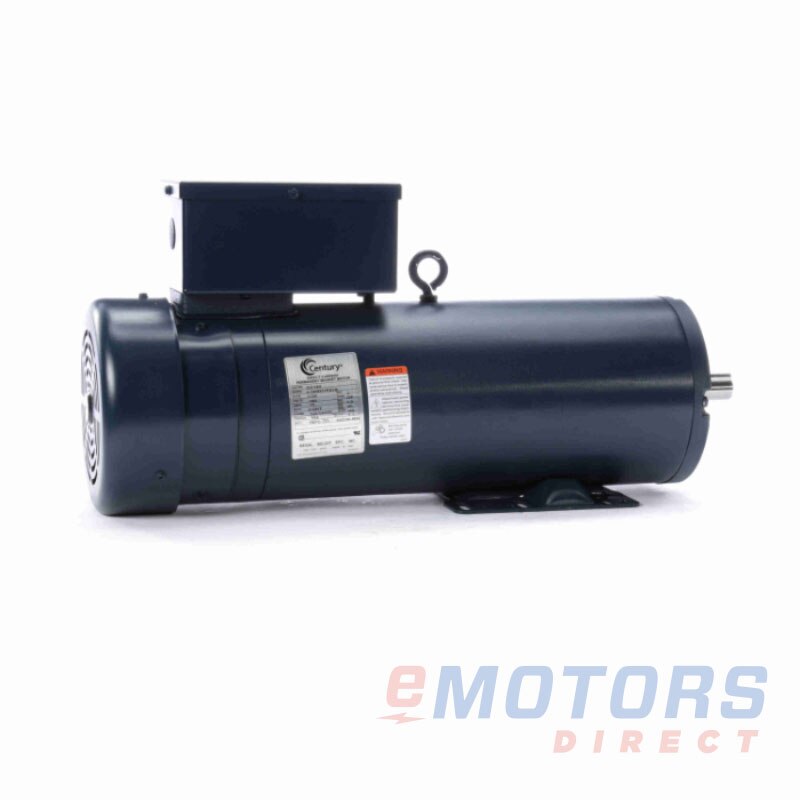

Century DC144

Century · Permanent Magnet DC
3 HP 1750 145TC TEFC 180V DC Motor
Catalog Number: DC144
HP
3
RPM
1800
Voltage
180V
Frame
145TC
Phase
DC
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

Century’s DC motors are designed for easy maintenance and a long life, with features like a special brush holder and sealed bearings. They offer high efficiency with their permanent magnet design. Select a motor replacement with your required ratings in mind, HP, RPM, voltage, and enclosure type.

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Century: Permanent Magnet DC (3)

DC1041/6175090V42CZ $802.92
DC1051/4175090V34 $868.10
DC14431750180V145TC $4,849.24

Feature

  • 20:1 SPEED RANGE AT CONSTANT TORQUE
  • 40°C Ambient
  • UL class H Insulation file #E46316
  • CE approved
  • UL recognized construction file #55476
  • CSA certified file #LR39033
  • Continuous duty
  • Skewed armature for smooth quiet operation
Electrical Data
Rated Motor Output Power
3 HP
2.25 kW
Rated Motor Speed
1750 RPM
Rated Motor Voltage
180V
Rated Motor Current
15 AMP
Phase
DC
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
22.34"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
Ball
NDE Bearing
Ball
Shaft Diameter
0.875"
Shaft Length
2"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
