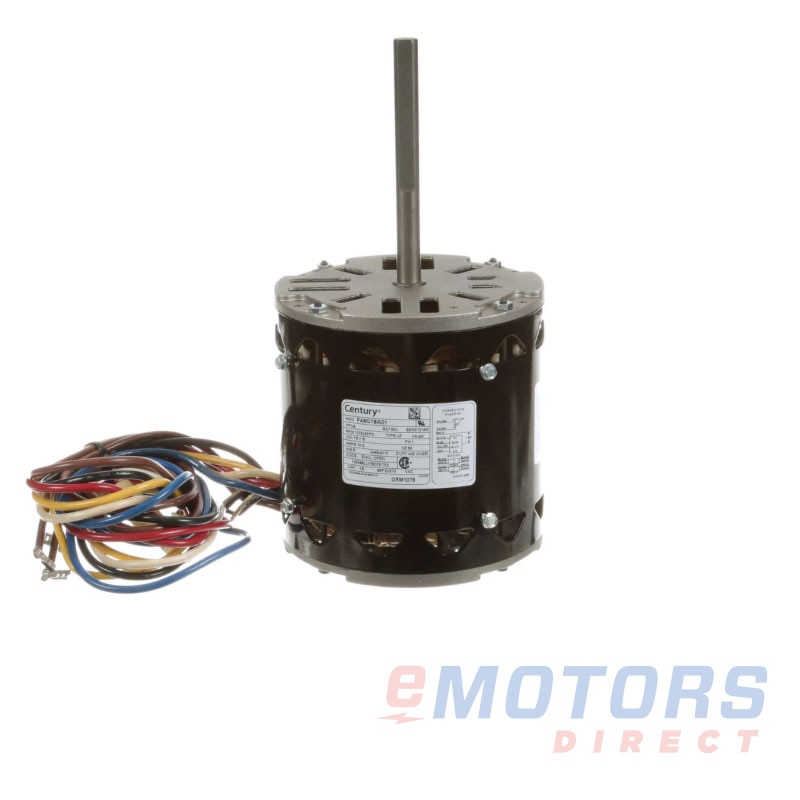

CENTURY ORM1076

Century
3/4 HP 1075 48Y Fr Open 115V Furnace Motor
Catalog Number: ORM1076
HP
3/4
RPM
1200
Voltage
115V
Frame
48Y
Phase
1
Enclosure
Open
Material
Rolled Steel
Mounting
Belly Band

Availability: Factory Order (4-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Factory Ordered: 4-5 weeks
Mississauga, ON: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
AO SMITH F48C47A94, F48G18A01, F48J75C04
CENTURY 794
DAYTON 4VA34
FASCO D724
GRAINGER/DAYTON 4VA34
ICP 612367
RHEEM 51-22859-01
Electrical Data
Rated Motor Output Power
3/4 HP
.56 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
115V
Rated Motor Current
10.5 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
Open
Mounting
Belly Band
Number of Speeds
4 Speed
Approximate Weight
19
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
10.61"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.5"
Shaft Length
5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
INDIA
Warranty
1-YEAR
