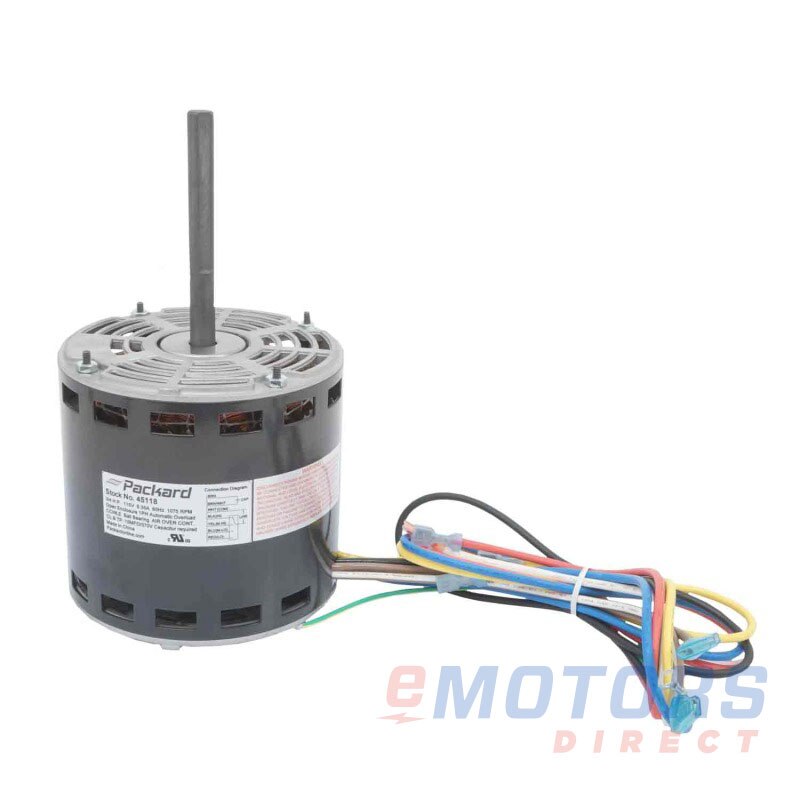

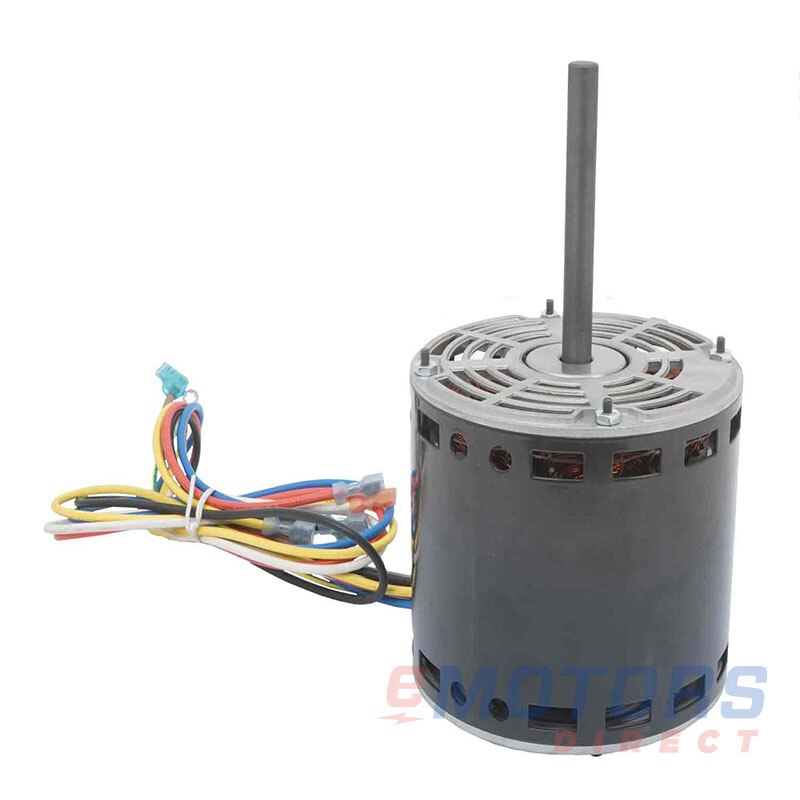

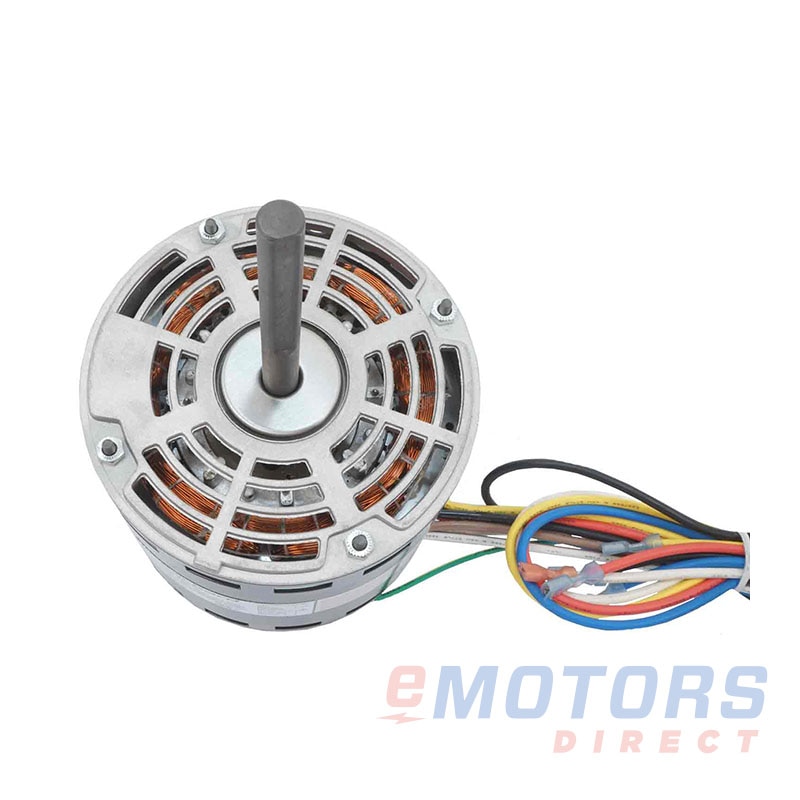

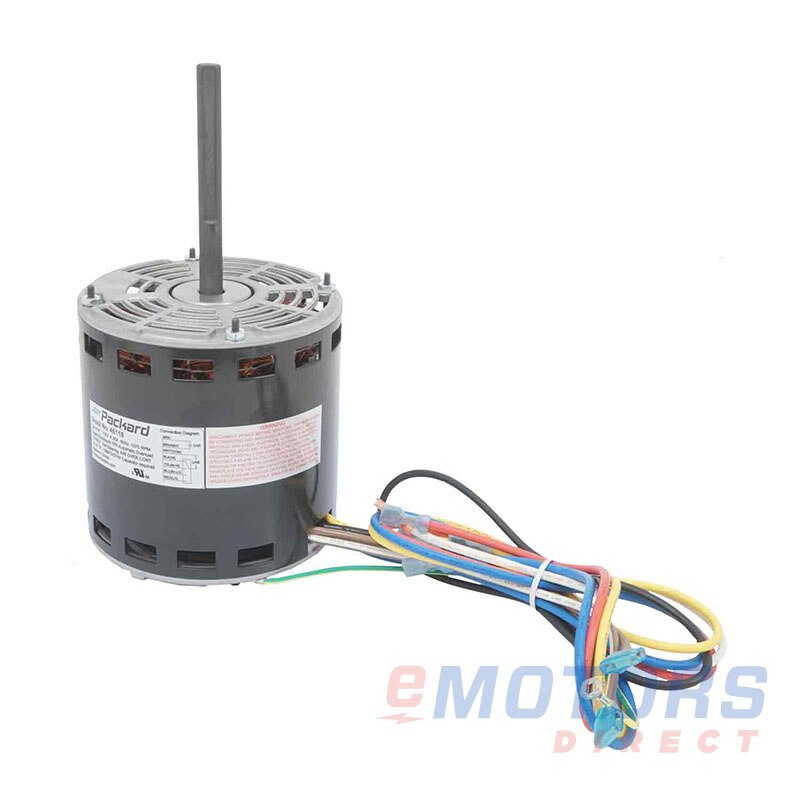

Packard 45118

Packard · Furnace Motor
3/4 HP 1075 48 Open 115V Permanent Split Capacitor
Catalog Number: 45118
HP
3/4
RPM
1200
Voltage
115V
Frame
48
Phase
1
Enclosure
Open
Material
Rolled Steel
Mounting
Belly Band

Product-line overview

Dominating the HVACR industry since 1959, Packard’s line of furnace motors and draft inducers are an optimal choice for your indoor air comfort. With their selection of frame sizes, mounting options, and voltage inputs, you’ll find a furnace motor solution no matter how unique the application.

CAD$191.40
Ships next business day — In Stock (2)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (2)

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Blower Motors for Furnaces

This is the component that sends air from the furnace or air conditioner into the home.

When replacing a blower motor, costs will range from $150 to $800, depending on the brand and horsepower requirements. Furnace motors can last anywhere from 10-20 years, and it’s often difficult to find an exact replacement. There are many different brands, but if you can confirm the horsepower, RPM, voltage, number of speeds required, and mounting type, you should be able to cross reference your blower motor to another brand if needed. Because blower motors are relatively low cost, it’s typically recommended to replace the motor instead of repairing it. Repairing a furnace motor may cost several hundred dollars.

When ordering a replacement, expect 1-5 days shipping for most motors, when shipping within Canada.

Our direct drive blower motors come in 1/25 horsepower up to 1 horsepower and come in 1-5 speeds.

Condenser Fan Motors

Condenser fan motors keep HVAC compressors from overheating. It’s a part of the condensing unit and is always located outdoors. As such, it’s important to select an appropriate enclosure so that dust, dirt, and other contaminates do not enter the motor and cause damage.

When replacing a condenser fan motor, the expected cost is $130 - $1000. The price will vary depending on the horsepower required. These motors come in 1/20 horsepower up to 2 horsepower.

Pedestal Fan Motors

Sometimes referred to as yoke motors, air circulation fan motors are typically used in manufacturing facilities, hospitals, schools, warehouses, and other clean, dry, large indoor areas. A bracket or strap is attached to the motor for mounting. Pedestal fan motors are typically designed with Totally Enclosed Air Over, or Open Air Over enclosures and must be mounted in the air-steam to maintain proper operating temperatures. If they’re not mounted in the air-steam, they may overheat and fail.

Prices range from $150-$450.

Carbonator Pump Motors

These motors power hub-mounted pump applications and come with a resilient mount, meaning the motor is suspended in position with a cradle to limit vibration when the motor starts. Carbonator pump motors typically cost between $230 – $450, depending on the horsepower required. These are interchangeable with most OEM designs, making the Marathon carbonator pump motor an ideal aftermarket option.

ECM Rescue Motor

Nidec (also known as US Motors or Emerson) offers replacement furnace blower motors and condenser fan motors that will work as drop-in replacements for OEM brands. These motors are highly efficient, translating to lower energy costs for homeowners and businesses.

This shoe fits a lot of feet, so to speak. They come with multiple speeds, but you can choose to use just what you need. The ECM rescue line offers a multi-fit mounts so they are more adaptable for more locations.

These motors are often used as after-market replacements, as they are stocked on shelves and available to ship right away. These also come with a 2-year warranty, adding extra assurance. These come in 1/3 hp, ½ hp, ¾ hp, and 1 hp.

Where to Buy furnace Motors

eMotors Direct’s stock of furnace motors covers every style of motor you would need for your HVAC system; including furnace blower motors, condenser fan motors, pedestal fan motors, carbonator pump motors, and heat pump motors. Keep your residential, commercial, or industrial building’s atmosphere comfortable with higher efficiency and reduced noise.

Our furnace motor category has electric motors from brands like Baldor, Century, Leeson, Marathon, Nidec, and Packard, names you’ve come to know and trust. Shop single- and three-phase motors with a variety of enclosure types; OAO, ODP, TEAO, TEFC, and TENV. And a variety of frame sizes and mounting options to choose from. With direct and OEM replacements, you’ll find the correct motor for your application no matter what brand the legacy motor is.

Shop furnace motors online through our Canadian website today. With over 1150 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement? Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
3/4 HP
0.55 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
115V
Rated Motor Current
8.35 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
15
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
Open
Mounting
Belly Band
Number of Speeds
4 Speed
Approximate Weight
16.95
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CCWLE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
Ball
NDE Bearing
Ball
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
CHINA
Warranty
1-Year
