KB Electronics KBDF-29

KB Electronics · KBDF - VFD

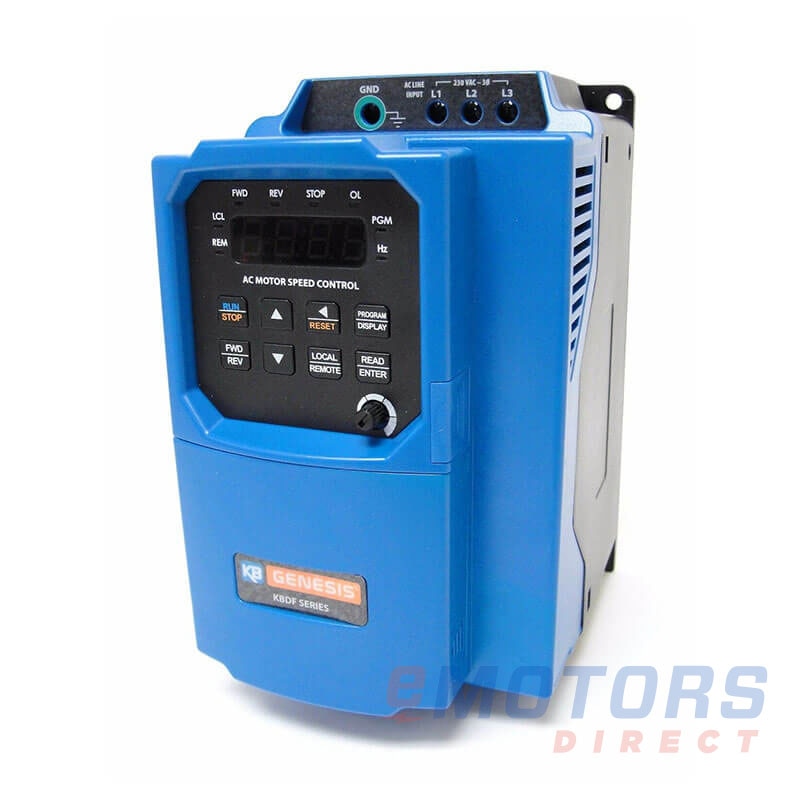

KBDF Digital Drive - NEMA 1 3 HP 230V (No.9641)
Catalog Number: KBDF-29
Part Number: 9641
HP
2, 3
Input Voltage
230V
Output Voltage
230V
Input Phase
1, 3
Enclosure
NEMA 1

Product-line overview

Our stock of KB Electronics KBDF series VFDs is a range of 8 models that pair with ½ up to 5 HP rated motors. They feature NEMA 1 IP 20 enclosures and a digital display. Select from single or 3-phase input options, and voltage ratings of 115V, 230V, or 460V at input and 230V or 460V at output.

Ships next business day — In Stock (1)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (1)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

KB Electronics: KBDF - VFD (1)

KBDF-292, 3230V 230V 1, 3NEMA 1 $677.28

Description

The KBDF Series of Adjustable Frequency Drives consist of fourteen inverter models rated for 1/8 to 5 horsepower. These drives are housed in IP 20 enclosures. They are ideal for OEM applications where digital programming and displays are required. All models are available with a built-in CE approved AC Line Class “A” Industrial Standard RFI (EMI) Filter.

Electrical Data
HP CT Rating
2,3 HP
HP VT Rating
-
Input
Output
Voltage
230V
230V
Max CT Current
16.7/11.7
6.7/9
Max VT Current
-
-
Phase
1,3
3
Hz Range
50-60
0-240
Physical Data
Weight
-
Height
7.8"
Width
4.4"
Depth
6.1"
Enclosure
NEMA 1
Degree of Protection (IP)
IP20
Frame
-
Ambient Temp
0 to 45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
