KB Electronics KBMM-125

KB Electronics · KBMM - DC Drive

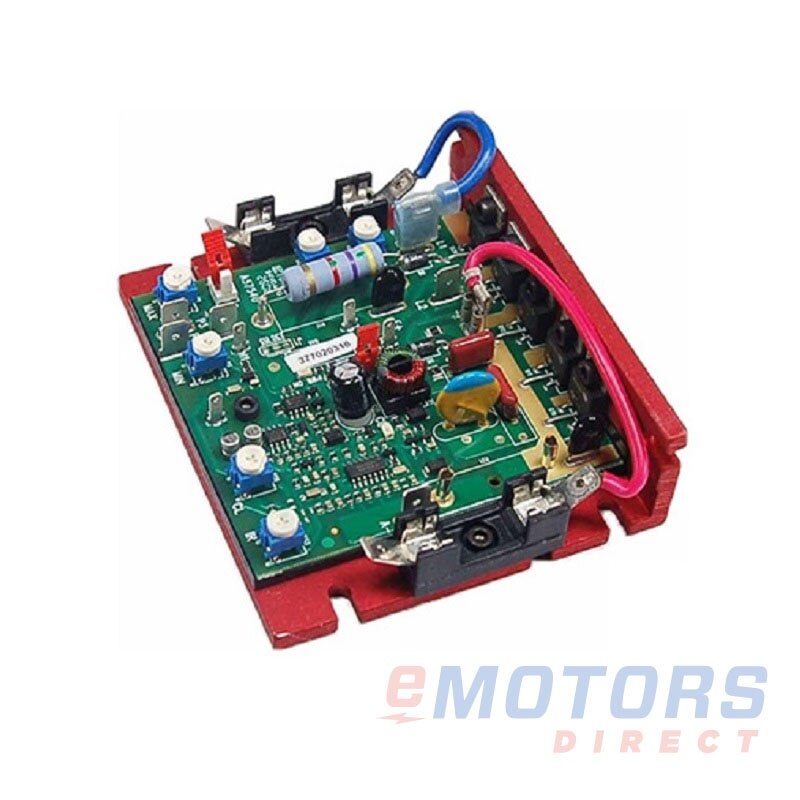

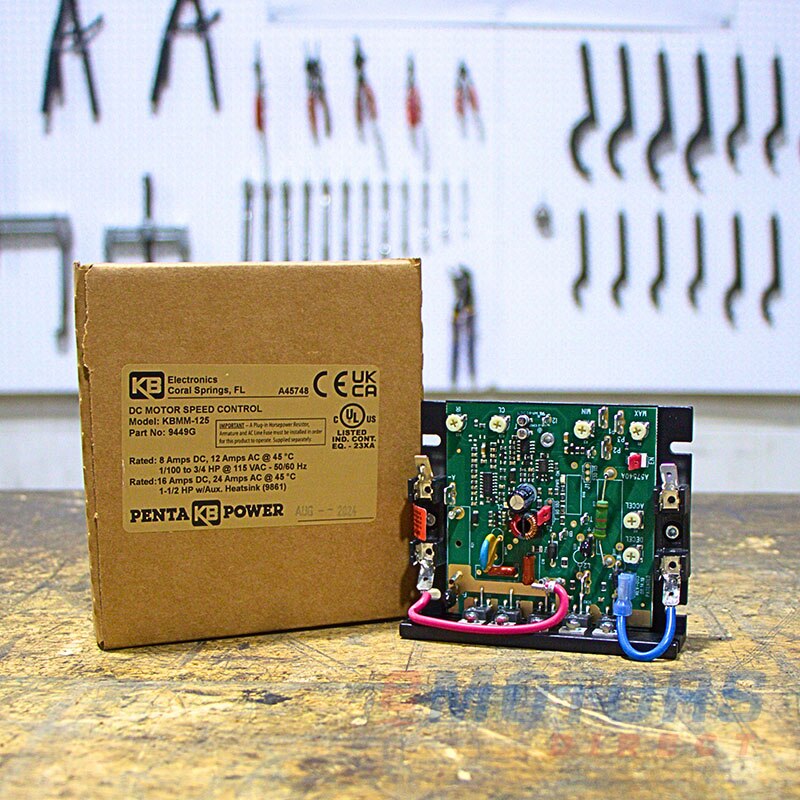

KBMM SCR Drive - Chassis 3/4 HP (No.9449)
Catalog Number: KBMM-125
Part Number: 9449
HP
3/4
Input Voltage
115V
Output Voltage
90V
Input Phase
1
Enclosure
Chassis

Overview

Our selection of KB Electronics DC drives offers a wide variety of drives for DC motor variable speed control. Select a drive rated for fractional HP up to 5 HP rated motors and a large selection of input and output voltage ratings. They feature enclosures from chassis to NEMA 1 and NEMA 4X.

CAD$233.28

This product requires a resistor and fuse. Please include the HP and voltage of the motor that the drive will use with. This will be included with your drive.

Ships next business day

Available for Delivery

Delivery Estimate

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (9)
Oakville, ON: In Stock
Anjou, QC: In Stock
Edmonton [eMotors #2], AB: Out of Stock
Edmonton, AB: In Stock

On Order

1 Expected11/17/2023

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593
Returns & Refund Policy

Cross-Referenced Matches (5)

Equivalent alternatives from other brands that have matching specifications to this product.

  • KB Electronics KBIC-125

    KBIC SCR Drive - Chassis 3/4 HP 90V (No.9433)

    CAD $192.46
    Ships next business day

  • KB Electronics KBWT-16

    KBWT PWM Drive - Chassis 3/4 HP 130V (No.8614)

    CAD $260.98
    Ships next business day

  • KB Electronics KBMM-225D

    KBMM SCR Drive - Chassis 1-1/2 HP (No.9451)

    CAD $260.98
    Ships next business day

  • KB Electronics KBWS-25D

    KBWS PWM Drive - Chassis 1-1/2 HP 220V (No.9493)

    CAD $306.18
    Ships next business day

  • KB Electronics KBPB-125

    KBPB SCR Relay Reversing Drive - Chassis 3/4 HP 90V (No.8900)

    CAD $435.94
    Ships next business day

KB Electronics: KBMM - DC Drive (3)

KBMM-1253/4115V90V1Chassis $233.28
KBMM-2251 1/2230V180V1Chassis $242.03
KBMM-225D3/4, 1 1/2115V, 230V90V, 180V1Chassis $260.98

Description

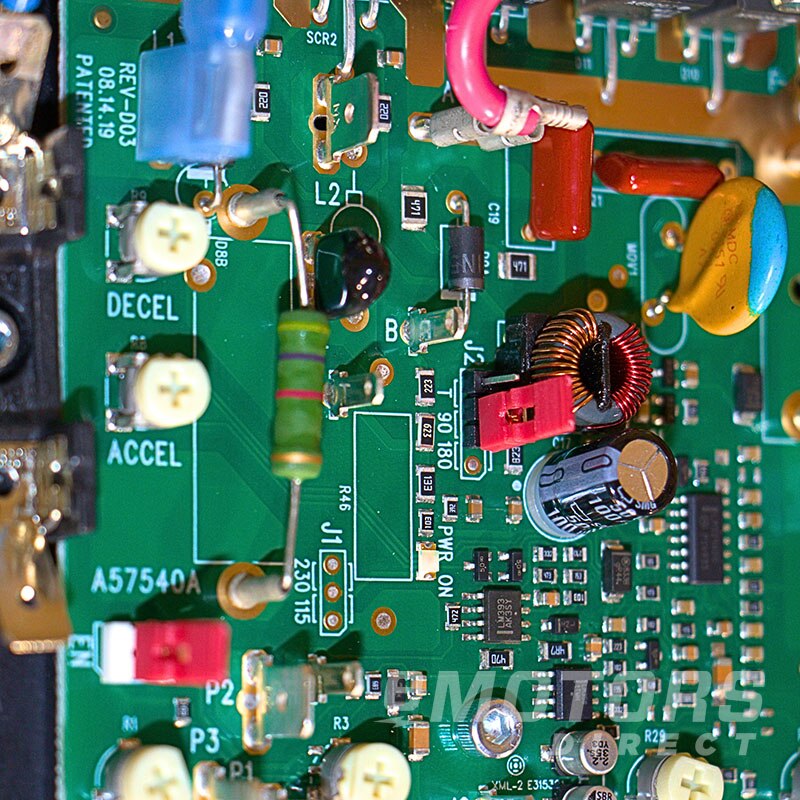

The KBMM Series of DC Drives are rated for 1/100 to 3 horsepower. This chassis full-wave DC motor control is the ultimate in reliability and performance. The drive contains Direct-Fed CL that helps protect the SCR power bridge against shorts due to commutator arcing and prevents motor demagnetization. 25 Amp SCRs and AC line and armature fusing further enhance reliability. A Plug-in Horsepower Resistor® is required to operate the drive and eliminates the need for recalibration when used over a wide range of motor horsepowers. A 5k ohm potentiometer is included.

eMotors Direct’s stock of DC drives are for use with direct current power and DC motors. The simple design allows for motor speed control by adjusting the voltage of the supply power. They are ideal for situations where low speed, torque, and power are required. Cost-effective, user-friendly, and offering precise control, DC motor drivers are easy to implement on your industrial motor projects.

Our DC drive category covers the latest DC control technology, giving you a complete selection of single-phase and DC power input options. Horsepower options start at fractional HPs up to 7 ½ HP. Select the appropriate enclosure type for your application from chassis, NEMA 1, NEMA 4, NEMA 4/12, and NEMA 4x. Designed for various industries from agriculture to automation to fabrication and beyond, our offering of dc motor speed controllers is from the top brands, KB Electronics and Leeson.

Shop DC motor speed controllers online through our Canadian website today. With over 55 SKUs and convenient filtering options, you can easily find the DC drive you’re searching for.

Need a hand finding the right motor speed controller for your application or legacy replacement?  Contact our motor experts today. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
HP CT Rating
3/4 HP
HP VT Rating
-
Input
Output
Voltage
115V
90V
Max CT Current
12
8
Max VT Current
-
-
Phase
1
DC
Hz Range
50-60
-
Physical Data
Weight
1 lb
Height
3.63"
Width
4.3"
Depth
1.25"
Enclosure
Chassis
Frame
-
Ambient Temp
0 to 45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
USA
Warranty
18-Month
