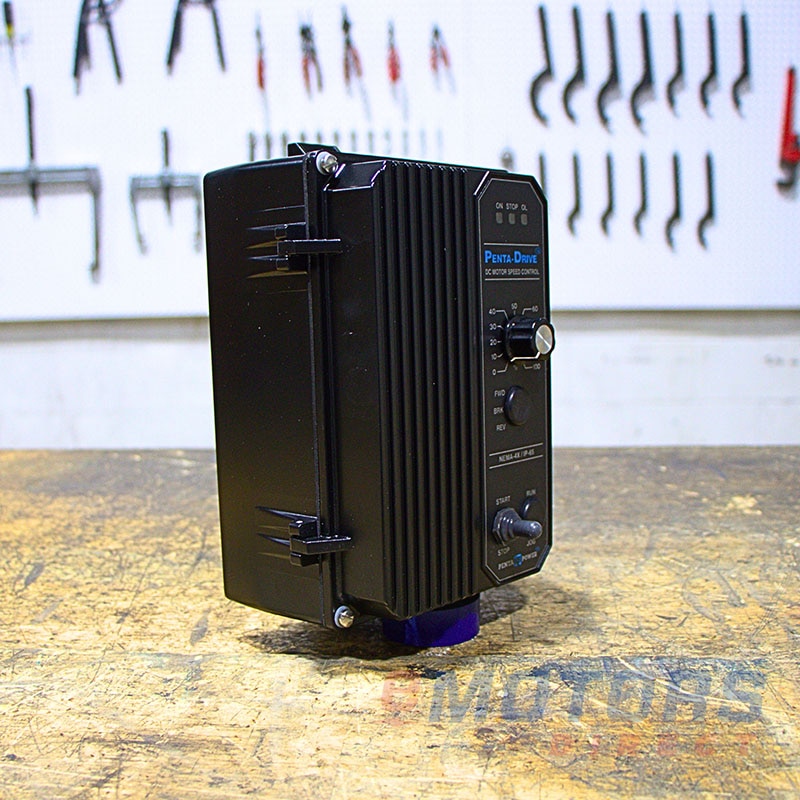

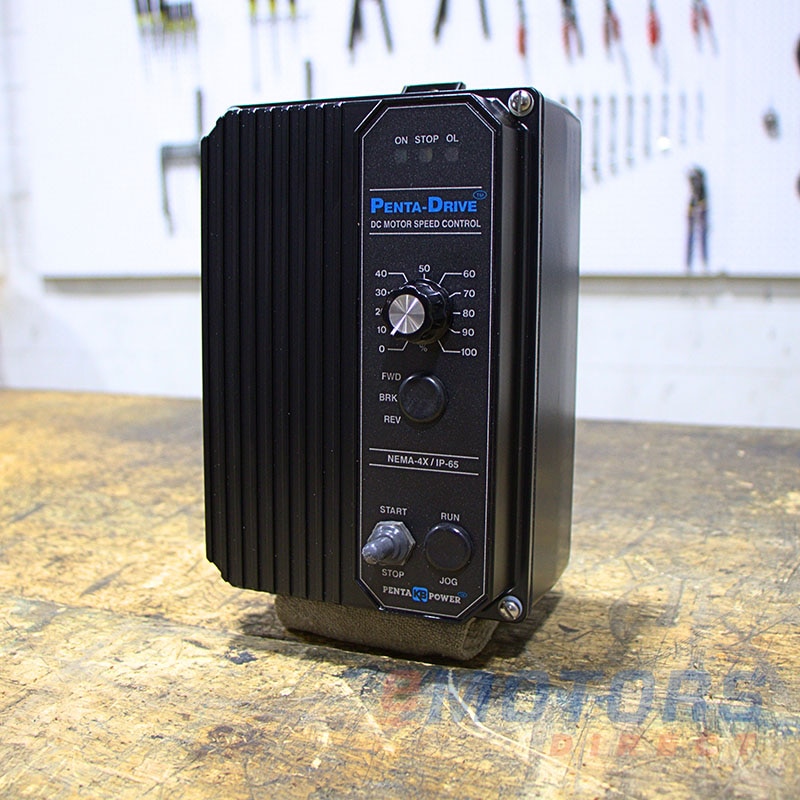

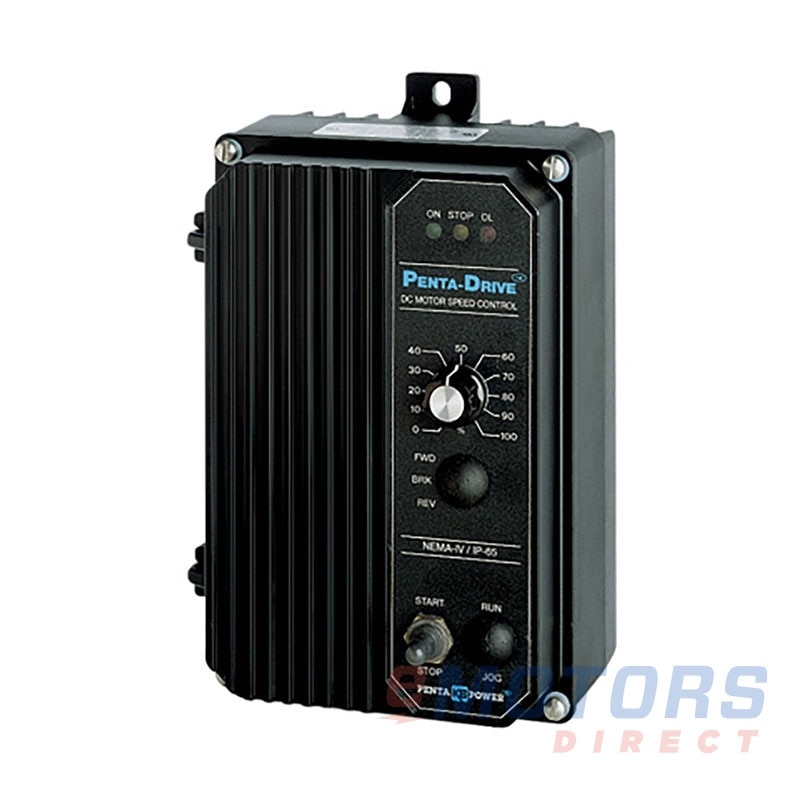

KB Electronics KBPC-240D Black

KB Electronics · KBPC - DC Drive
KBPC SCR Drive - NEMA 4 2 HP 90V (No.9338)

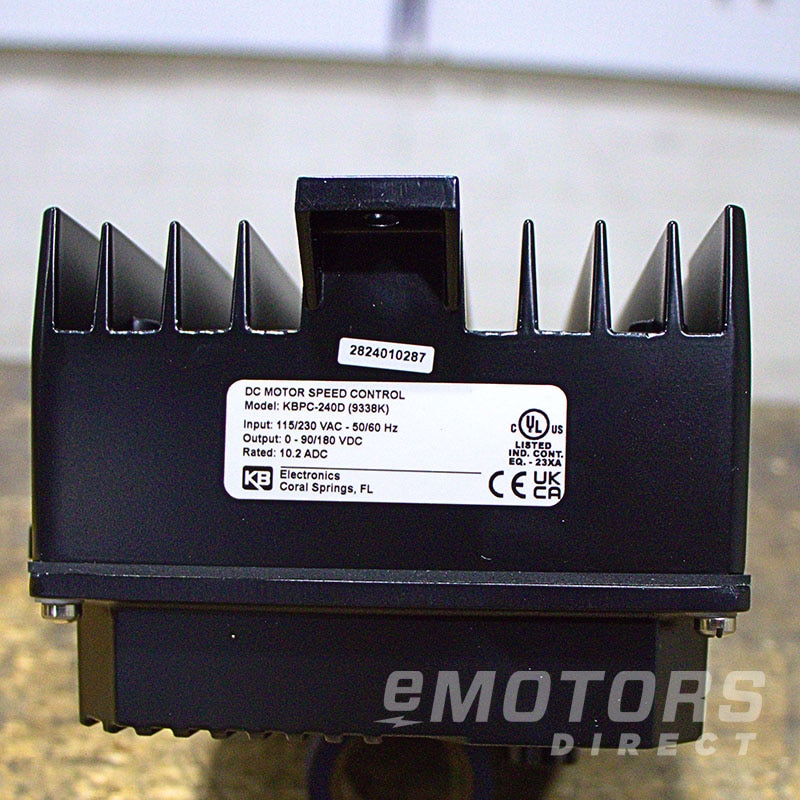

Catalog Number: KBPC-240D Black
Part Number: 9338
HP
1, 2
Input Voltage
115V, 230V
Output Voltage
180V, 90V
Input Phase
1
Enclosure
NEMA 4X

Product-line overview

NEMA 4X / IP65 Washdown Rated: Sealed die-cast aluminum enclosure with corrosion-resistant coating, rubber-booted switches, and a shaft-sealed potentiometer for wet or harsh environments.

Flexible Motor Compatibility: Jumper-selectable for 115/230V input and 90/180V DC motors.

Speed or Torque Control Modes: Easily switch between precise speed regulation or torque control depending on your application.

Built-In Motor & Drive Protection: Includes short-circuit, transient, overload, and electronic current limit protection to help prevent motor burnout and ensure long-term reliability.

Highly Adjustable Performance: Fine-tune operation with trimpots for min/max speed, acceleration, deceleration, current limit, and IR compensation.

This product requires a resistor and fuse. Please include the HP and voltage of the motor that the drive will use with. This will be included with your drive.

Ships next business day — In Stock (35)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (35)
Saint-Hubert, QC: In Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

Description

The KBPC Series of DC Drives are rated for 1/100 to 3 horsepower. These drives are housed in NEMA 4X/IP 65 die-cast aluminum washdown enclosures for indoor or outdoor use. The exclusive Short Circuit and Timed Current Limit (TCL) circuitry prevents motor burnout and demagnetization of PM motors. Features, such as a selectable motor current, eliminates unnecessary calibration the of IR and CL trimpots.

Electrical Data
HP CT Rating
1,2 HP
HP VT Rating
-
Input
Output
Voltage
115V,230V
180V,90V
Max CT Current
15
10.2
Max VT Current
-
-
Phase
1
DC
Hz Range
50-60
-
Physical Data
Weight
5 lb
Height
5"
Width
6"
Depth
9.5"
Enclosure
NEMA 4X
Degree of Protection (IP)
IP65
Frame
-
Ambient Temp
45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
