Product images are for reference only. Please review product specifications for the most accurate and detailed information.

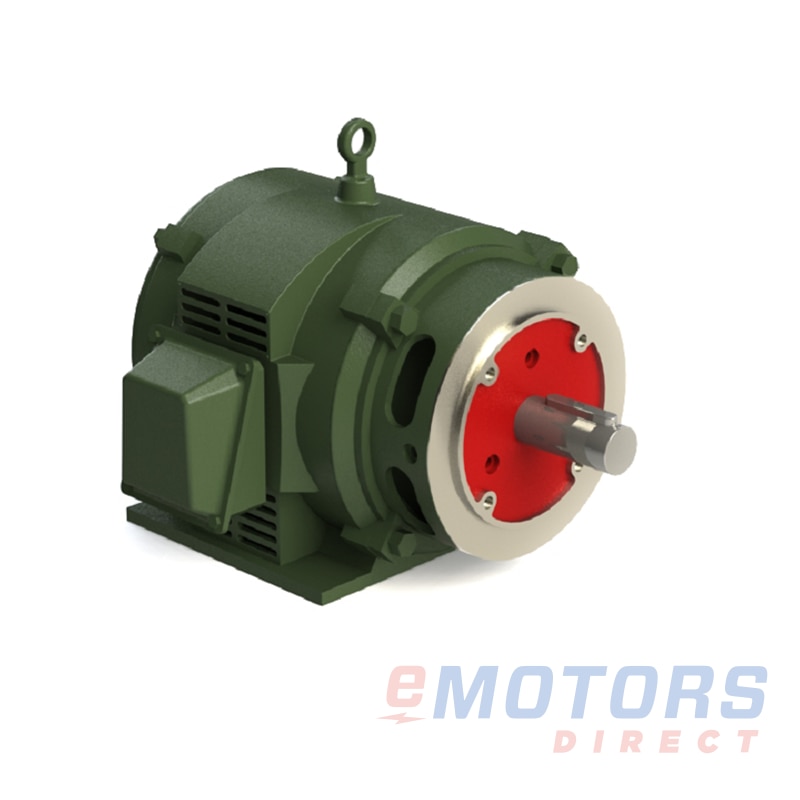

Max Motion MPOP-107-C

Max Motion · General Purpose
300 HP 1790 449TC ODP 575V General Purpose
Catalog Number: MPOP-107-C
HP
300
RPM
1800
Voltage
575V
Frame
449TC
Phase
3
Enclosure
ODP
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

Find the right motor for your application with Max Motion’s general purpose motors. Designed for various applications, these motors provide numerous options from RPM, HP, and voltage ratings to enclosure types. Plus, c-face, d-flange, and rigid mounting options to suit your intended location.

Ships in 3 to 5 business days

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Oakville, ON: Out of Stock
Anjou, QC: In Stock
Factory Ordered: Out of Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Max Motion: General Purpose (674)

MQR-124CW1/21725230V, 460V56HC $424.67
MQP-7-D1 1/21750208-230V, 460V145TD $632.87
MQP-3-D11160208-230V, 460V145TD $661.78
MQP-8-D1 1/21175208-230V, 460V182TD $960.46
MQP-21-D53515208-230V, 460V184TD $1,053.73
MQP-22-D51755208-230V, 460V184TD $1,099.44
MQP-18-D31185208-230V, 460V213TD $1,314.75
MQP-26-D7 1/23530208-230V, 460V213TD $1,501.32
MQP-23-D51180208-230V, 460V215TD $1,501.32
MQP-27-D7 1/21770208-230V, 460V213TD $1,594.61
MQP-31-D103525208-230V, 460V215TD $1,650.53
MQP-32-D101770208-230V, 460V215TD $1,734.51
MQP-43-D201185208-230V, 460V286TD $2,148.21
MQP-28-D7 1/21185208-230V, 460V254TD $2,382.16
MQP-33-D101180208-230V, 460V256TD $2,428.79
MQP-36-D153545208-230V, 460V254TD $2,475.44
MQP-37-D151770208-230V, 460V254TD $2,708.62
MQP-41-D203540208-230V, 460V256TD $2,755.26
MQP-53-D301185208-230V, 460V326TD $2,981.04
MQP-42-D201760208-230V, 460V256TD $3,035.09
MQP-38-D151180208-230V, 460V284TD $3,078.44
MQP-46-D253540208-230V, 460V284TSD $3,363.34
MQP-51-D303530208-230V, 460V286TSD $3,550.21
MQP-47-D251775208-230V, 460V284TD $3,624.94
MQP-52-D301775208-230V, 460V286TD $3,819.30
MQP-48-D251185208-230V, 460V324TD $4,482.59
MQP-56-D403545208-230V, 460V324TSD $4,727.37
MQP-57-D401780208-230V, 460V324TD $4,951.62
MQP-61-D503545208-230V, 460V326TSD $5,138.49
MQP-62-D501780208-230V, 460V326TD $5,512.24
MQP-58-D401188208-230V, 460V364TD $6,875.16
MQP-66-D603565208-230V, 460V364TSD $6,968.61
MQP-71-D753565208-230V, 460V365TSD $7,155.46
MQP-67-D601780208-230V, 460V364TD $7,342.34
MQP-63-D501187208-230V, 460V365TD $7,529.21
MQP-72-D751780208-230V, 460V365TD $7,902.95
MQP-68-D601190208-230V, 460V404TD $9,798.65
MQP-76-D1003570208-230V, 460V405TSD $10,604.05
MQP-77-D1001790208-230V, 460V405TD $11,351.53
MQP-73-D751190208-230V, 460V405TD $11,683.23
MQP-81-D1253580460V444TSD $12,722.80
MQP-82-D1251785460V444TD $13,563.75
MQP-78-D1001185208-230V, 460V444TD $13,750.59
MQP-83-D1251185460V445TD $15,152.12
MQP-86-D1503580460V445TSD $15,320.30
MQP-87-D1501790460V445TD $16,086.49
MQP-88-D1501188460V447TD $17,114.26
MQP-97-D2001790460V447TD $17,955.18
MQP-96-D2003580460V447TSD $17,955.18
MQP-98-D2001185460V449TD $20,758.23

Feature

  • Inverter Duty Magnet wire, 10:1 CT - 20:1 VT
  • Rolled Steel 140-210T, Cast Iron 250T and larger
  • Roller Bearing 4 & 6 Pole frames 404T to 449T
  • IP23 Protection
Electrical Data
Rated Motor Output Power
300 HP
225 kW
Rated Motor Speed
1790 RPM
Rated Motor Voltage
575V
Rated Motor Current
260 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
95.8
Nominal Power Factor
.87
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
449TC
Enclosure
ODP
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
52.8"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
NU318
NDE Bearing
6318
Shaft Diameter
3.375"
Shaft Length
8.5"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSAus & CE
Country of Origin
CHINA
Warranty
3-Year
