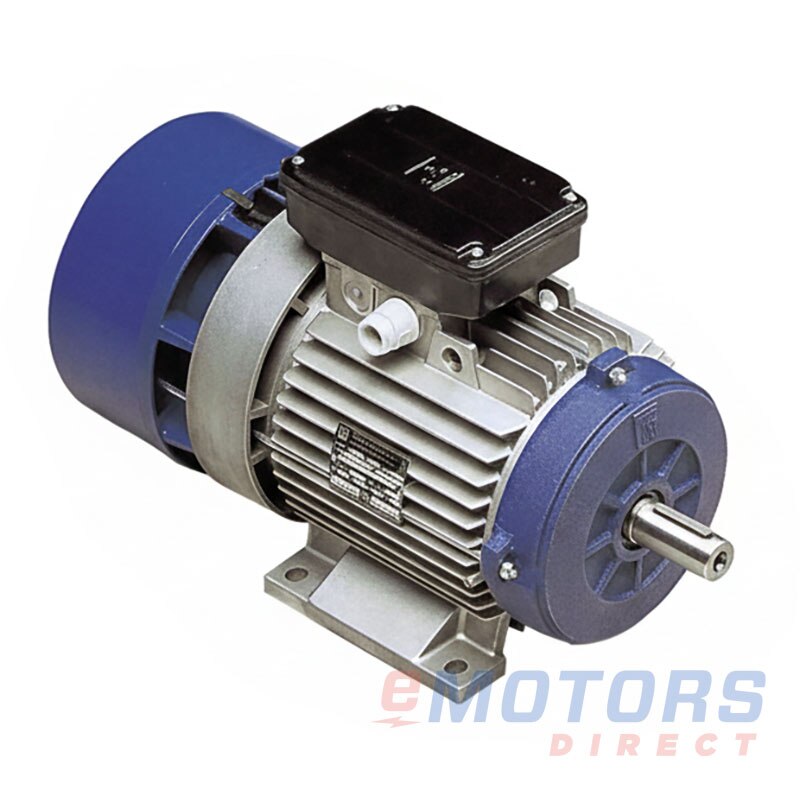

MGM Electric Motors BAX 160 MB4 B3

MGM Electric Motors · BAX Premium Efficiency Brake Motor B3 Mounting
15 HP 1800 RPM 230/460 V 160M B3 TEFC Brake Motor (130510001BP2Q )
Catalog Number: BAX 160 MB4 B3
Part Number: 130510001BP2Q
HP
15
RPM
1800
Voltage
230V, 460V
Frame
160M
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
B3

Product-line overview

The BAX Premium Efficiency Brake Motor B3 Mounting from MGM Electric Motors is part of the BA/BAX Series brake motors, engineered for demanding industrial applications that require fast, precise, and reliable braking performance. Designed for continuous duty operation, this motor features a rugged Totally Enclosed Fan Cooled (TEFC) construction and a high-torque braking system capable of rapid response and consistent stopping performance. Its adjustable brake torque, durable components, and low rotor inertia make it well suited for heavy cycling and frequent start-stop operations. With flexible terminal configurations, robust cooling components, and international certifications, the BA/BAX Series is widely used in palletizers, packaging machinery, conveyors, winches, transfer cars, stackers, and crane hoist systems where dependable braking and high operational reliability are essential.
Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate or an alternate product recommendation.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

MGM Electric Motors: BAX Premium Efficiency Brake Motor B3 Mounting (3)

BAX 160 MB4 B3151768230V, 460V160M $4,291.48
BAX 160 LA4 B3201768230V, 460V160L $4,828.62
BAX 180 LB4 B3301775230V, 460V180L $7,965.47

Key Features

  • Designed for inverter duty operation for reliable performance with variable frequency drives
  • Available in single-speed and two-speed configurations for flexible application requirements
  • Totally Enclosed Fan Cooled (TEFC) construction for reliable operation in demanding industrial environments
  • IEC metric frame dimensions with NEMA flange coupling compatibility for global equipment integration
  • BAX models designed for continuous duty operation under tough service conditions
  • Oversized brake disc design provides high brake torque and extended service life
  • Manual brake release allows easier maintenance and emergency operation
  • Adjustable brake torque for precise braking performance
  • AC three-phase brake for very fast response time and high braking torque
  • Flexible terminal configuration with brake terminals connected to motor terminals or a separate terminal block
  • Electrical design compliant with NEMA MG1 standards
  • Compact or oversized conduit box options for flexible wiring and installation
  • Pressed-steel brake cover and molded plastic cooling fan for durability and efficient cooling
  • Extremely low rotor inertia for heavy cycling and rapid start-stop applications
  • Hex hole on the non-drive end allows manual shaft rotation using an Allen key
  • International certifications including cCSAus, CE, and CCC for global compliance
  • Multiple mounting configurations including B3 foot mount, B14 face mount, B5 flange mount, and NEMA C-face
  • Suitable for installation in any mounting position for maximum design flexibility

Ideal for Use In

  • Rapid cyclic start-stop applications
  • Palletizers
  • Packaging machinery
  • Conveyor systems
  • Synchronized drive systems
  • Speed-regulated machinery
  • Winches
  • Transfer cars
  • Stackers
  • Crane hoists, end trucks, and trolley drives
Electrical Data
Rated Motor Output Power
15 HP
11 kW
Rated Motor Speed
1768 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
39.2/19.6 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
K
Nominal Efficiency
92.4
Nominal Power Factor
.8
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
YY/Y
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06 Hz
Constant Torque
5:1
12 Hz
General Data
Frame
160M
Enclosure
TEFC
Mounting
B3
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
29.33"
NEMA Design
-
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F2
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6309-2Z
NDE Bearing
6309-2Z
Shaft Diameter
42 mm
Shaft Length
110 mm
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
CSA, cCSAus, CE
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, cCSAus, CE
Country of Origin
ITALY
Warranty
1-Year
