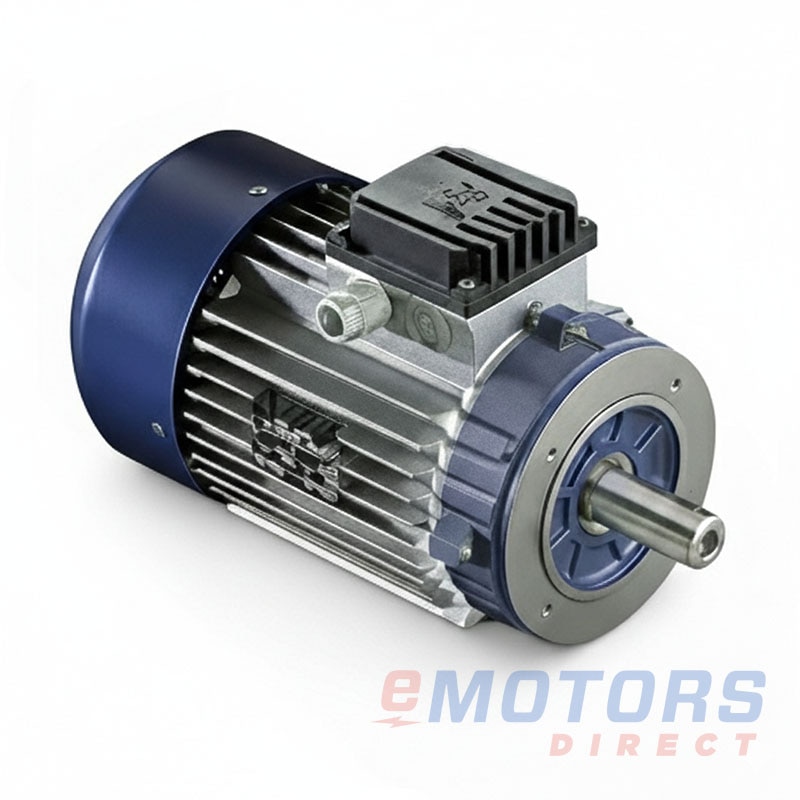

MGM Electric Motors SMX 80 B4 B14

MGM Electric Motors · SMX Premium Efficiency B14 Mounting
1 HP 1800 RPM 230/460 V 80 B14 TEFC IEC Metric Motors (M_044039W0010)
Catalog Number: SMX 80 B4 B14
Part Number: M_044039W0010
HP
1
RPM
1800
Voltage
230V,460V
Frame
80
Phase
3
Enclosure
TEFC
Material
Aluminum
Mounting
B14

Product-line overview

The SMX Premium Efficiency B14 Mounting motor from MGM Electric Motors is part of the SM/SMX Series high?efficiency motors, engineered for dependable, energy?efficient performance in industrial settings. Designed for continuous duty with an inverter?ready configuration and Totally Enclosed Fan Cooled (TEFC) construction, the SMX Series delivers quiet, reliable operation with low maintenance and flexible installation options. With IEC metric frame dimensions, durable cooling components, and extremely low rotor inertia for rapid start?stop and high?cycling performance, this high?efficiency motor is ideal for standard induction motor applications, pumps, packaging machinery, conveyor systems, synchronized drive systems, speed?regulated equipment, and crane end trucks and trolley drives.

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

MGM Electric Motors: SMX Premium Efficiency B14 Mounting (3)

SMX 63 B4 B141/41670230V, 460V63 $238.46
SMX 71 B4 B141/21690230V, 460V71 $359.26
SMX 80 B4 B1411730230V, 460V80 $455.43

Key Features

  • Inverter-ready design for reliable operation with variable frequency drives
  • Available in single-speed and two-speed configurations for flexible application requirements
  • Totally Enclosed Fan Cooled (TEFC) construction for dependable operation in industrial environments
  • IEC metric frame dimensions
  • SMX models designed for continuous duty with high efficiency performance
  • SM models suitable for intermittent duty applications
  • Standard motor design or built-in inverter design available (SMI series)
  • Compact or oversized conduit box options for flexible wiring and installation
  • Pressed-steel fan cover for durable motor protection
  • Molded plastic cooling fan for efficient airflow and cooling
  • Extremely low rotor inertia for high-cycling and rapid start-stop applications
  • Low-noise motor design suitable for energy-efficient industrial systems
  • cCSAus approval meeting CSA and UL standards
  • CE marking for compliance with European market requirements
  • Multiple mounting configurations including B3 foot mount, B14 face mount, B5 flange mount, and NEMA C-face
  • Suitable for installation in any mounting position for maximum application flexibility

Ideal for Use In

  • Standard induction motor applications
  • Pumps
  • Packaging machinery
  • Conveyor systems
  • Synchronized drive systems
  • Speed-regulated machinery
  • Crane end trucks and trolley drives
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1730 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
3.2/1.60 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
K
Nominal Efficiency
85.5
Nominal Power Factor
.7
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
YY/Y
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06 Hz
Constant Torque
5:1
12 Hz
General Data
Frame
80
Enclosure
TEFC
Mounting
B14
Number of Speeds
-
Approximate Weight
27.6lb
Double Drilled
No
Frame Material
Aluminum
C-Dimension
11.06"
NEMA Design
-
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F3
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6204-2Z
NDE Bearing
6204-2Z
Shaft Diameter
19 mm
Shaft Length
40 mm
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
CSA, cCSAus, CE
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, cCSAus, CE
Country of Origin
ITALY
Warranty
1-Year
