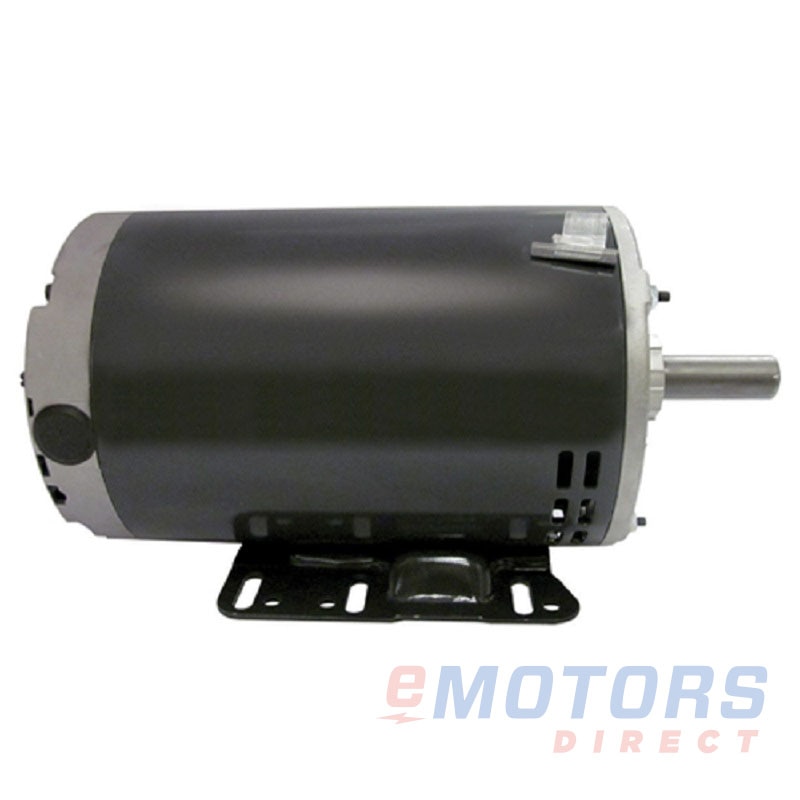

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Nidec 1088

Nidec
2 HP 1725 56 Fr ODP 575V Three Phase Fan
Catalog Number: 1088
Model Number: P063WNF4794015B
HP
2
RPM
1800
Voltage
575V
Frame
56
Phase
3
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Ships next business day — In Stock (2)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (2)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
MARATHONG967
CENTURY H965V1, H953V1
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
575V
Rated Motor Current
2.7 AMP
Phase
3
Poles
4
Locked Rotor Current
16.65
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
L
Nominal Efficiency
86.5
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56
Enclosure
ODP
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
34lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.156"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6205
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
