Nidec 1098

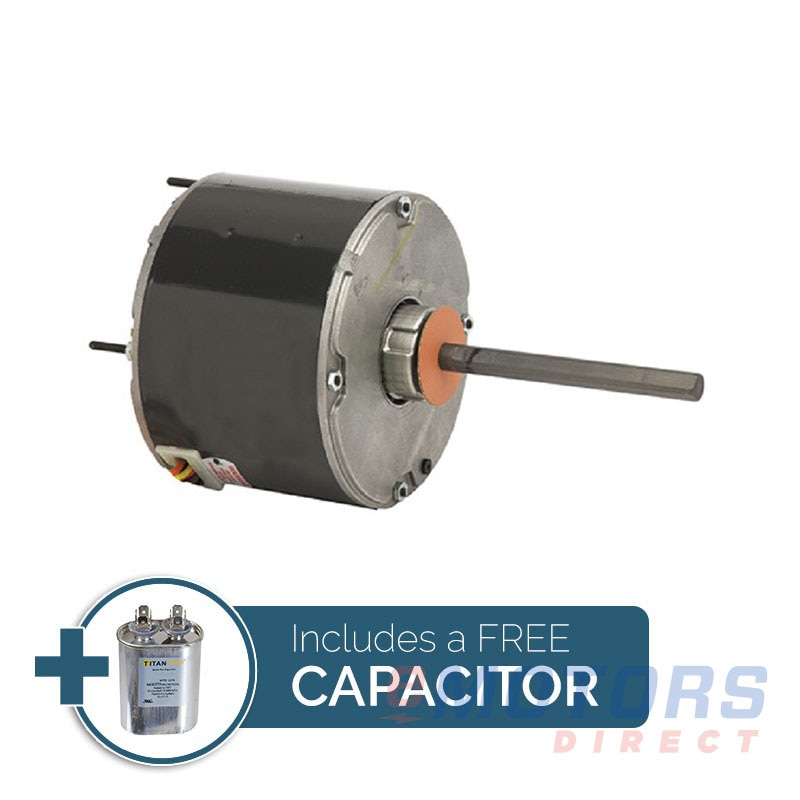

Nidec · Permanent Split Capacitor Condenser Fan 5.6" Diameter TEAO
1/2 HP 1075 48Y Fr TEAO 575V Permanent Split Capacitor Capacitor Included: TOCF10
Catalog Number: 1098
Model Number: K055WPC1363012B
HP
1/2
RPM
1200
Voltage
575V
Frame
48Y
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Belly Band, Thru Bolt

Product-line overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

Ships next business day — In Stock (2)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (2)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
ROTOM R6-R42606

Permanent Split Capacitor Condenser Fan 5.6" Diameter

Applications

Residential and commercial condensing unit fan motors to meet manufacturer’s requirements

Features

  • 140°F (60°C) Ambient Design
  • Bearings have All Angle Thrust System
  • Class B Insulation
  • Designed for use with 370V Capacitors
  • Extended Studs
  • 36" Leads
  • Hubless Lead End
  • Drain Holes Both Ends
  • Reversible Rotation
  • Automatic Reset Thermal Overload Protector
  • Continuous Duty
Electrical Data
Rated Motor Output Power
1/2 HP
.37 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
575V
Rated Motor Current
1.3 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
10
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
TEAO
Mounting
Belly Band,Thru Bolt
Number of Speeds
1 Speed
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.4"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
60°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
SAB
NDE Bearing
SELF-ALIGN
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
