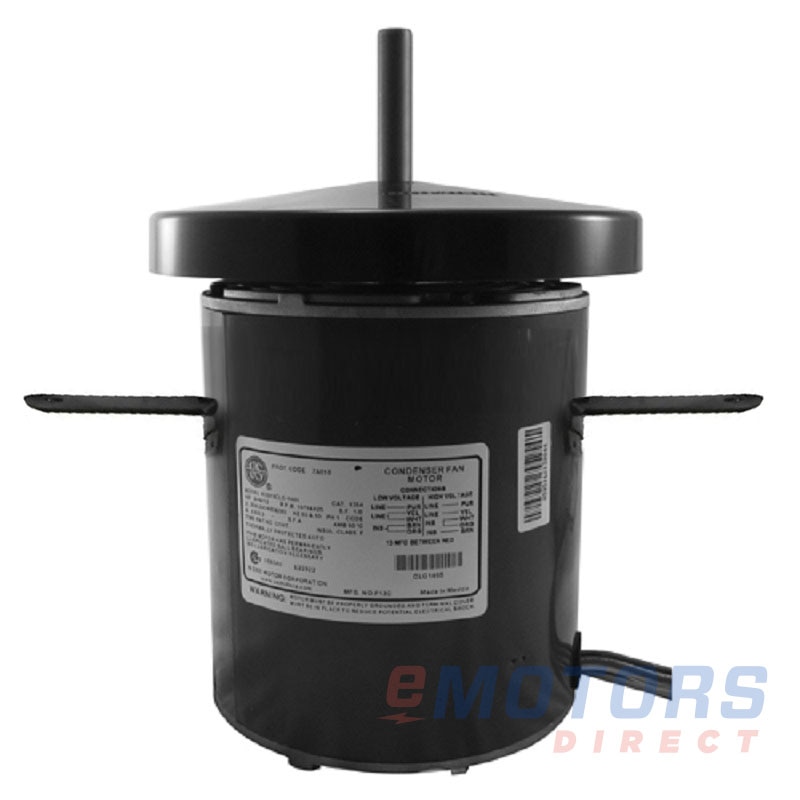

Nidec 1177

Nidec · Permanent Split Capacitor Commercial Condenser Fan ODP & TEAO
1/2 HP 1075 48Y Fr ODP 575V Permanent Split Capacitor
Catalog Number: 1177
Model Number: K055DSZ1214011B
HP
1/2
RPM
1200
Voltage
575V
Frame
48Y
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
Bracket

Product-line overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

Ships next business day — In Stock (2)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (2)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
AO SMITH 50CA1056

Permanent Split Capacitor Commercial Condenser Fan

Applications

For use on condenser cooling fans in commercial air conditioning applications

Features

  • Capacitor and Outlet Box Included, unless noted
  • Reversible Rotation, unless noted
  • Double-Sealed Ball Bearings
  • Continuous Duty, Air Over
  • Automatic Reset Thermal Overload Protector
  • Bearings have All Angle Thrust System
  • Dual Voltage
  • Class B Insulation
Electrical Data
Rated Motor Output Power
1/2 HP
.37 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
575V
Rated Motor Current
1.9 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
7.5
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
ODP
Mounting
Bracket
Number of Speeds
1 Speed
Approximate Weight
18lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
8.8"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
A
Rotation
CCWLE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6201
NDE Bearing
6201
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
