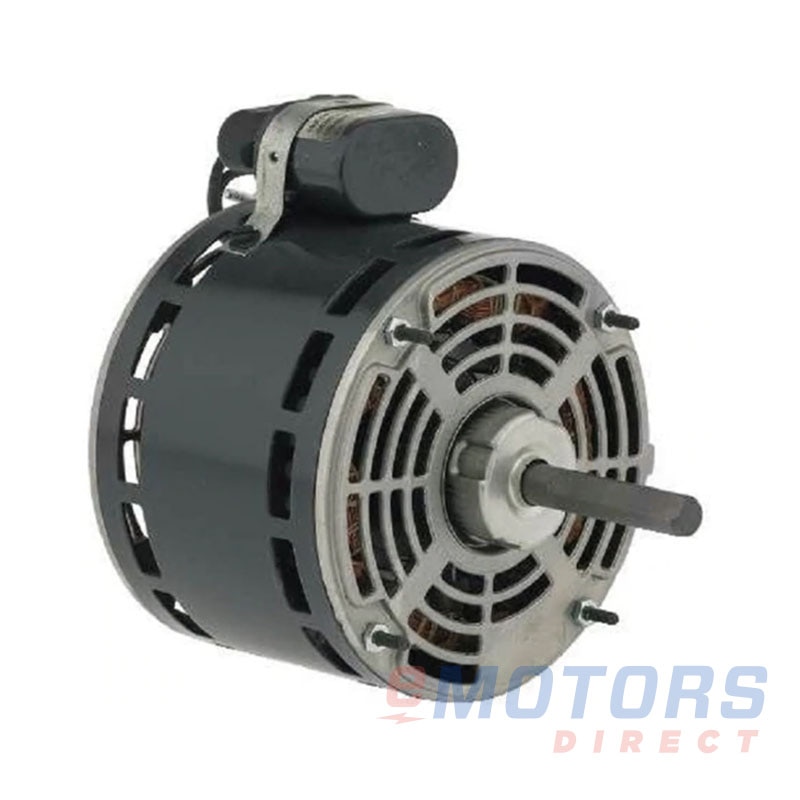

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Nidec 1312

Nidec · Refrigeration Condenser Fan 5.0" and 5.6" Diameter ODP TEAO and OAO
1/4 HP 1625 48Y Fr OAO 575V Permanent Split Capacitor
Catalog Number: 1312
Model Number: K055PLG5180013B
HP
1/4
RPM
1800
Voltage
575V
Frame
48Y
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Belly Band,Thru Bolt

Product-line overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

Ships next business day — In Stock (2)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (2)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

NidecRefrigeration Condenser Fan 5.6" Diameter

Applications

Condenser cooling fan motors to meet manufacturer’s requirements for commercial refrigeration units

Features

  • OEM Direct Replacements
  • Single Speed
  • Automatic Reset Thermal Overload Protector
  • Designed for use with 370V Capacitor
  • Capacitor Included
  • 50/60Hz
Electrical Data
Rated Motor Output Power
1/4 HP
.19 kW
Rated Motor Speed
1625 RPM
Rated Motor Voltage
575V
Rated Motor Current
0.7 AMP
Phase
1
Poles
4
Locked Rotor Current
1.49
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
5
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
OAO
Mounting
Belly Band,Thru Bolt
Number of Speeds
1 Speed
Approximate Weight
13
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
7.9"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CWLE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
SAB OR SLV
NDE Bearing
SAB OR SLV
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Feature SheetRegister or log in to download
  • Dimensional DrawingRegister or log in to download
