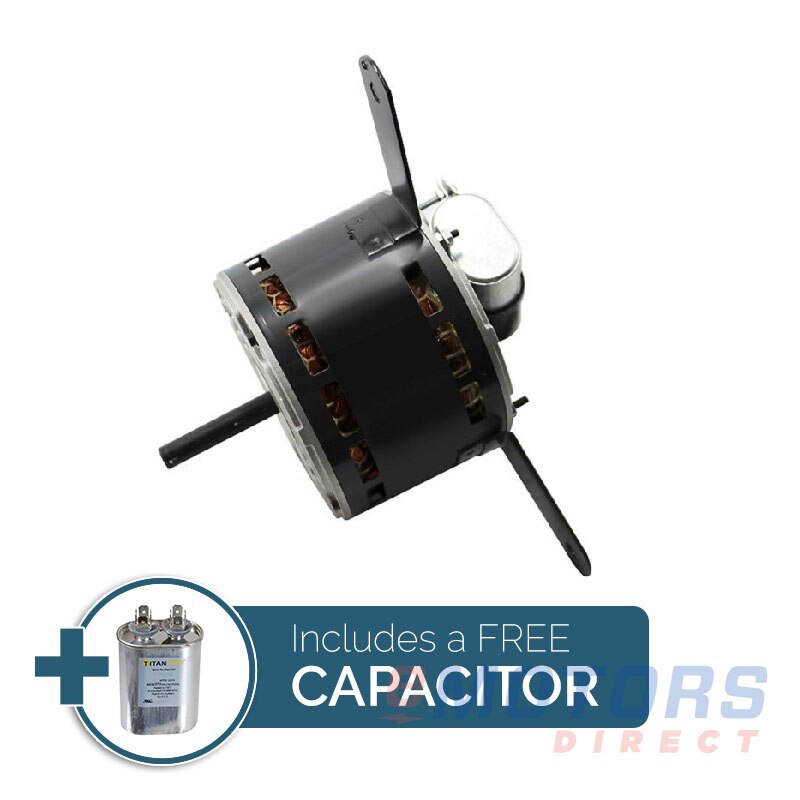

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Nidec 1679

Nidec · Permanent Split Capacitor Packaged Terminal A/C – Heat Pump OAO
1/10 HP 810 48Y Fr OAO 277V Permanent Split Capacitor Capacitor Included: TOCF5
Catalog Number: 1679
Model Number: K055HAB2059013B
HP
1/10
RPM
900
Voltage
277V
Frame
48Y
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Bracket

Product-line overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

Ships next business day — In Stock (1)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (1)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
EMERSON K1679, KA55HAB-2059, K055TAY8170013B
GLOBAL IND WBB468193
JS S80-171
TRANE X70500270-01, M0T-2853, X70500270-1

Permanent Split Capacitor Packaged Terminal A/C - Heat Pump

Applications

To meet manufacturer's requirements for use in package terminal air conditioners or heat pump units

Features

  • Bearings have All Angle Thrust System
  • Suitable for Use With 370V Capacitors
  • Continuous Duty, Air Over
  • Automatic Reset Thermal Overload Protector
  • OEM: TRANE
Electrical Data
Rated Motor Output Power
1/10 HP
.07 kW
Rated Motor Speed
810 RPM
Rated Motor Voltage
277V
Rated Motor Current
0.51 AMP
Phase
1
Poles
8
Locked Rotor Current
1.05
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
5
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
OAO
Mounting
Bracket
Number of Speeds
3 Speed
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
6.6"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
A
Rotation
CWLE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
SELF-ALIGN
NDE Bearing
SELF-ALIGN
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
