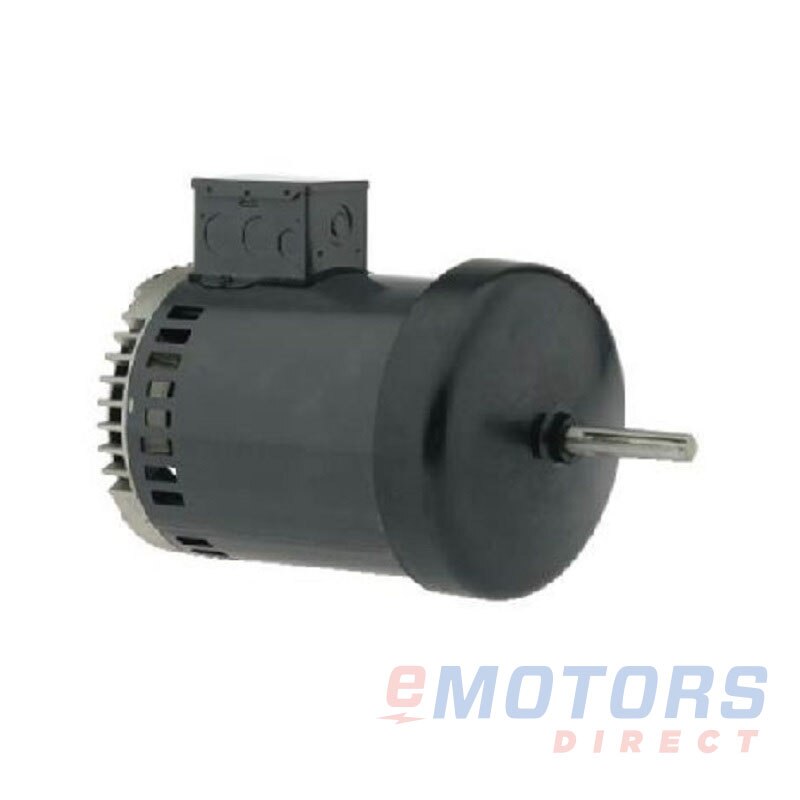

Nidec 1816

Nidec · Three Phase Commercial Condenser Fan ODP Air Over
1 HP 1140 56Z Fr OAO 200-230V|460V Three Phase Fan
Catalog Number: 1816
Model Number: P063TCT3807015B
HP
1
RPM
1200
Voltage
200-230V,460V
Frame
56Z
Phase
3
Enclosure
OAO
Material
Rolled Steel
Mounting
Belly Band

Product-line overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

Ships next business day — In Stock (1)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (1)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
AO SMITH P48SX6V2, FC3106
CARRIER HD52VE214, HC52VE214
CENTURY H855, UH667
EMERSON K1816, P63TCT-3807
GE MEMC 5K49UN6084
GENERAL ELECTRIC 5K48UG798BS, 5K48UN6084S, 5K49UN6084S, 5K49UN6038S
GRAINGER/DAYTON 31TR61, 3N816
JS S89-107
MARATHON 56T11D33, 56T11D5209
ROTOM T2166
TRANE M0T-6074

Three Phase Commercial Condenser Fan

Applications

Designed to meet manufacturer’s requirements for condenser cooling fans in commercial air conditioning applications where 3 phase power is required.

Features

  • Automatic Reset Thermal Overload Protector
  • Reversible Rotation
  • Continuous Duty, Air Over
  • Double Sealed Ball Bearings
  • Dual Voltage
  • Class B Insulation
  • 140°F (60°C) Ambient Rated
  • Shaft-up Mounting
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1140 RPM
Rated Motor Voltage
200-230V,460V
Rated Motor Current
6.0/3.0 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
6.66
Service Factor
1
KVA Code
N
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56Z
Enclosure
OAO
Mounting
Belly Band
Number of Speeds
1 Speed
Approximate Weight
35lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
13.6"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
60°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Feature SheetRegister or log in to download
  • Dimensional DrawingRegister or log in to download
