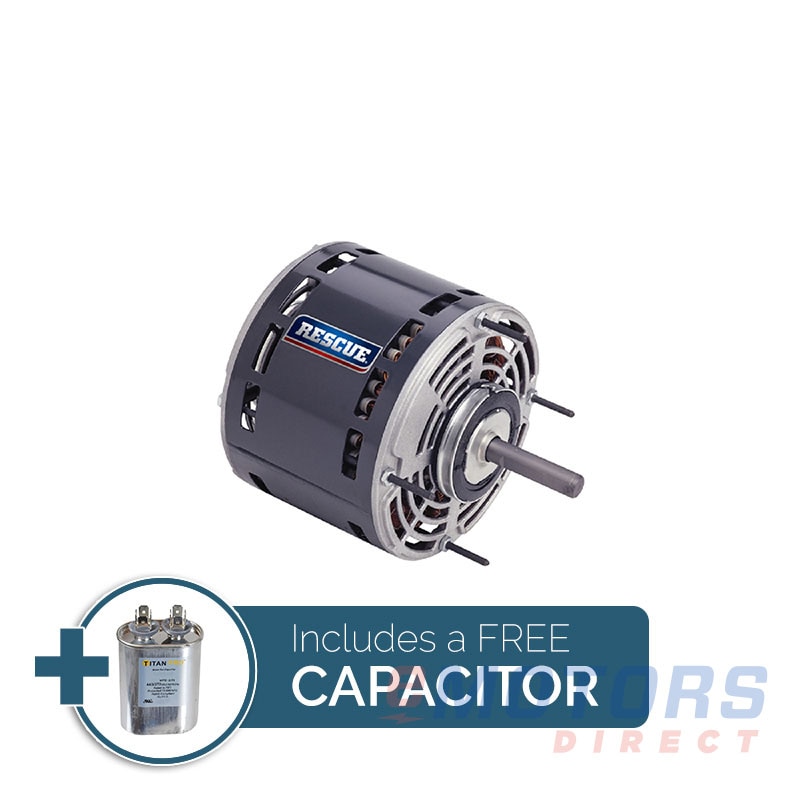

Nidec 5470

Nidec · Permanent Split Capacitor Direct Drive Fan & Blower 5.6" Diameter OAO
3/4 HP 1075 48Y Fr OAO 115V Permanent Split Capacitor Capacitor Included: TOCF20
Catalog Number: 5470
Model Number: K055JZH2375012B
HP
3/4
RPM
1200
Voltage
115V
Frame
48Y
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Ring / Stud

Product-line overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

Ships next business day — In Stock (2)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (2)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (2)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
AO SMITH FDL1076V1, F48SQ6L72, FDL6002A, FDL6002, 0RM1076, 323P980, 323P681, F48T03A50, F48SQ6L34B1
EMERSON6452, 3340, 5463, CA3415, K55KFM-3270, K55DRJ-0011, K055PNF2850012B, K55HXFFA-7697, K55HXLYP-2789, K55TGF-8825, K55NFH-2787, K55NFH-0906, K55DVV-1285, K055TDM8416012B, K055STP7621012B, K055KNP0233011B, K055GWN4594721B, K055DUN1254012B, K55JYZ-9359, KA55ZZSHD-9820, K8895, K055SEJ7023722B, K055TNG9611012B, K55SWW-7987, K55SST-7211, KA55SHD9820722B, K55SEJ-7023, K55TDM-8416, K5470, K7023, K55WPY-1412, K55NFH-906, K55LYP-2789, K055WPY1412012B, K055SWW7987012B, K055SST7211011B, K055KDJ9452022B, K055DVV1285012B
MARATHONX074, X1009
US MOTORS6452
A1 3466
AAON V33550
ALLIED 200100-01
ARM 47466-001C, RS40387-001, 47466-001
BAKER 123452, 123938
BEACON C 1BMH346X, 1BM346X
CARRIER F257-3466, P257-8589, P257-E5470, F257-3589, HC45AE115A, P257-E8389, HC45AE115, 3S030
CENTURY 794, FDL6002A, FDL6002
DAYTON 4VA34, 482R64
DETTSON L061004
ECONOMASTER EM3466, EM3589
FASCO D-724, D-2832, D2832, D-2702
FIRSTCHOICE Y4649, Y4642
GENERAL ELECTRIC 5KCP39RGR719, 5KCP39RGR038AS, 5KCP39PGA762, 5KCP39PGE111, 5KCP39NGB870, 5KCP39PGB368, 5KCP39PGV171, 5KCP39RGU706, 5KCP39PGZ36, 5KCP39PGF139, 5KCP39PGE163, 5KCP39PGD293, 5KCP39LPGZ36, 5KCP39PGN160, 5KCP39RGR38, 5KCP39PGF575, 5KCP39PGE42, 5KCP39PGD307, 5KCP39PGB959, 5KCP39PGJ700, 5KCP39PGN657, 3466, 5KCP39PGP736, 5KCP39SGU363
GENTEQ 6010, 3S030, 3466
GOODMAN B13400-23, GP3466, GP3589
GRAINGER/DAYTON 4VA34, 1NZ24, 4M997, 4M589, 1YJA3, 4ME26, 4MA78
ICP 1172488, HQ1008414EM, 1011906, 1170338
IRP 160-22, 160-0022, 160-0013
JS S88-560, S89-287
LAU 57272
LENNOX 74N3101, R47466-001, 33H4501
MAGNETEK 678
MARS 10589, 3589, 3466
MORTEX 65BP0007
NORDYNE 01-0172, 9172960, 631138, 622001A, 622001, 437555, 918016
PACKARD R43602
RHEEM 51-26192-01, W51-34BAA-01, 51-23017-42, 51-25327-01C, 51-24435-89, 51-21489-02
ROTOM R43602, R6-R43466
SMART SE3466, SE3589
SMITH FDL6002
TOPTECH TT-E75-3SP1, TT-E75MSP1, TT-E75-MSP1
TRADEPRO TPE753SP1, TPE75MHP1
TRANE X70671676-01-0, X70671319-01-7, M0T-12134, M0T-10243, X70370537-01-0, M0T-9415, MOT9415, M0T-10274
UNIVERSAL U-794A
UPG 024-32055-000, 024-24156-700, FHM3466, FHM3589
WAGNER WG840466

Nidec Rescue Direct Drive Fan & Blower

Applications

Commercial and Residential Air Handlers and Furnaces

Can replace a range of horsepower applications and a variety of mounting styles

Features

  • Extended Mounting Studs
  • Designed For Use With 370V Capacitors
  • Class B Insulation
  • 36" leads
  • High Efficiency Design®
  • Includes Side Shell Holes For RHEEM®† Units
  • Continuous Duty, Air Over
  • Reversible Rotation
  • Automatic Reset Thermal Overload Protector
  • 2.5" Dia. Hub Rings Included
Electrical Data
Rated Motor Output Power
3/4 HP
.56 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
115V
Rated Motor Current
8.1 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
20
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
OAO
Mounting
Ring / Stud
Number of Speeds
5 Speed
Approximate Weight
20lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.6"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
