Nidec 9628

Nidec · Shaded Pole and PSC Direct Drive Fan 3.3" Diameter Open and Totally Enclosed Designs

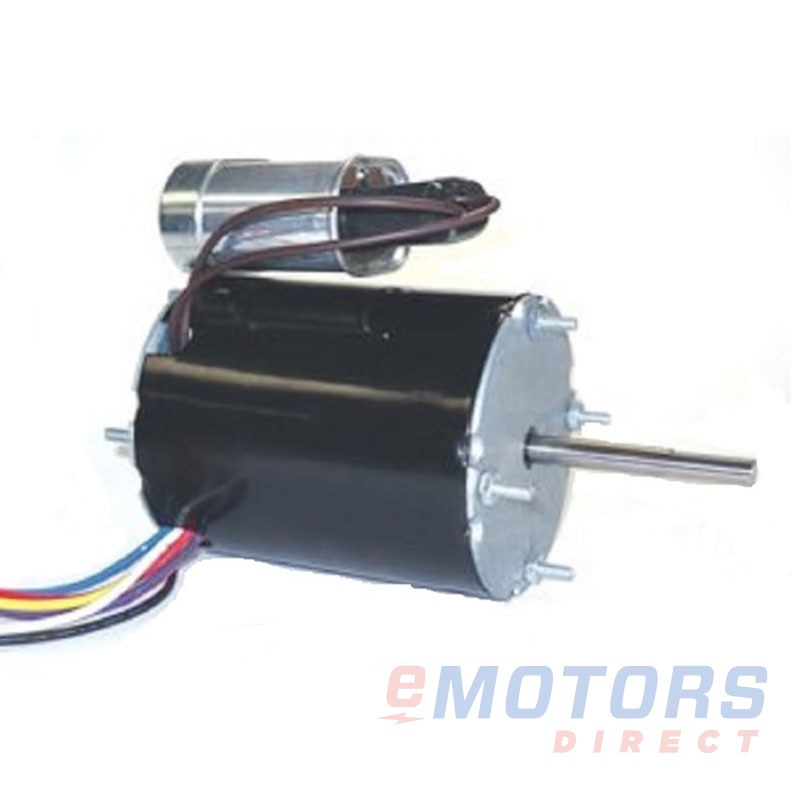

1/30 HP 1550 3.3" Fr TEAO 115V Permanent Split Capacitor
Catalog Number: 9628
Model Number: K033DGW1435012B
HP
1/30
RPM
1800
Voltage
115V
Frame
3.3"
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Stud

Product-line overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

NO STOCKING INFORMATION AVAILABLE

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
EMERSON K9628, M1873159600000B, M1873159400000B, K33WLC-1410, F33JNK-4601, 13420, 13070, 9625, M1876143600000B, M1873159500000B, M1873159300000B, F33KMK-4528, F33FWA-2703, 13437, F33JNK-3877
FASCO D-514, D-1151, D514, D-131
GENERAL ELECTRIC 5527, 5528
GRAINGER/DAYTON 3M546, 8M209R, 3M556
JS S59-324
LENEXA 8M209
MARS 9916
UNIVERSAL U-9656, U-9653, U-9657, U-28, U-400, JA2M121

Shaded Pole & PSC Direct Drive Fan

Applications

High Efficiency PSC motors for refrigeration evaporator and general purpose

Features

  • Four 8-32 x 3/4" Stud Extensions At Each End
  • Ball Bearings Have All Angle Thrust System
  • Automatic Reset Thermal Overload Protector
  • Dual Studs
  • PSC Design With Capacitor Included
  • 12" Leads
Electrical Data
Rated Motor Output Power
1/30 HP
.02 kW
Rated Motor Speed
1550 RPM
Rated Motor Voltage
115V
Rated Motor Current
0.6-0.55 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
2
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
3.3"
Enclosure
TEAO
Mounting
Stud
Number of Speeds
1 Speed
Approximate Weight
3lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
3.39"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.31"
Shaft Length
2.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
