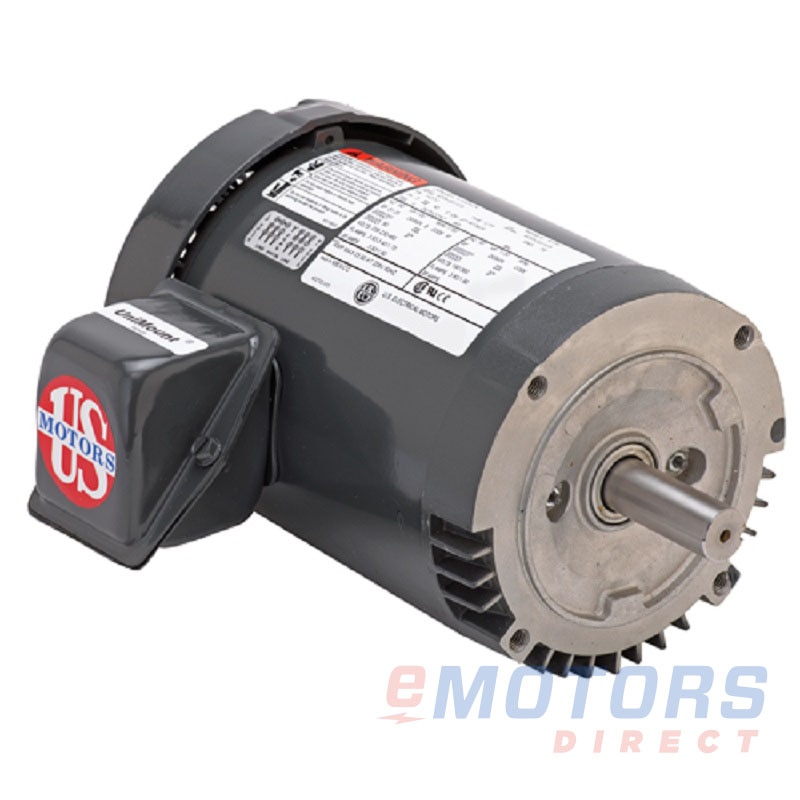

Nidec U34S2ACR

Nidec · General Purpose Three Phase TEFC C-Face Footless
3/4 HP 1750 56C Fr TEFC 208-230V|460V General Purpose
Catalog Number: U34S2ACR
Model Number: F050
HP
3/4
RPM
1800
Voltage
208-230V, 460V
Frame
56C
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Round Body

Overview

Available in open drip proof (ODP) or totally enclosed, fan cooled (TEFC) enclosures, HP ranging from 1 - 500, and a range of voltages & RPM’s. Choose Nidec General Purpose motors for dirty, industrial environments where the reliability and around-the-clock availability of your equipment is crucial.

Let us know you are interested in this product and our team will get back to you with a price.

Contact us for delivery dates

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593
Returns & Refund Policy

Cross-Referenced Matches (3)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Baldor VM3542

    3/4 HP 1725 56C TEFC 230V|460V General Purpose

    CAD $383.77
    Ships next business day

  • Baldor VEM3542

    3/4 HP 1750 56C TEFC 230V|460V General Purpose

    CAD $651.07
    Ships next business day

  • Marathon D454

    3/4 HP 1800 56C TEFC 208-230V|460V General Purpose

    CAD $1,160.80
    Ships next business day

Nidec: General Purpose Three Phase TEFC C-Face Footless (93)

U34P1GCR3/43505575V56C $320.60
U12P2GCR1/21765575V56C $320.60
U34P2GCR3/41745575V56C $354.20
U2P1GFCR23510575V56C $401.80
T32P1ACR1 1/23450208-230V, 460V56C $408.80
U1P1GCR13525575V56C $411.60
T2P1ACR23450208-230V, 460V56C $443.80
U3P1GFCR33480575V56C $463.40
U32P1A14CR1 1/23450208-230V, 460V143TC $464.80
U34P3GCR3/41165575V56C $478.80
U3P1GCR33480575V145TC $478.80
U3P1A14CR33450208-230V, 460V145TC $483.00
T3P1ACR33450208-230V, 460V56C $490.00
U32P1GFCR1 1/23510575V56C $540.40
U32P1GCR1 1/23510575V143TC $540.40
U1P3GFCR11155575V56C $548.80
U5P2DKR51760208-230V, 460V184TCH Contact for Pricing
U5P1DKR53520208-230V, 460V184TCH Contact for Pricing
U3P2DKR31765208-230V, 460V182TCH Contact for Pricing
T32S1ACR1 1/23450208-230V, 460V56C Contact for Pricing
U30P2DCR301770208-230V, 460V286TC Contact for Pricing
U25P2DCR251770208-230V, 460V284TC Contact for Pricing
U25P1DCR253530208-230V, 460V284TC Contact for Pricing
U20P2DCR201770208-230V, 460V256TC Contact for Pricing
U20P1DCR203535208-230V, 460V256TC Contact for Pricing
U15P2GCR151775575V254TC Contact for Pricing
U15P2DCR151775208-230V, 460V254TC Contact for Pricing
U15P1DCR153540208-230V, 460V254TC Contact for Pricing
U15P1DFCR153495208-230V, 460V215TC Contact for Pricing
U15E1DFCR153505208-230V, 460V215TC Contact for Pricing
U10P3DCR101180208-230V, 460V256TC Contact for Pricing
U10P2GCR101760575V215TC Contact for Pricing
U10P2DCR101760208-230V, 460V215TC Contact for Pricing
U10P1DCR103520208-230V, 460V215TC Contact for Pricing
U10E1DCR103510208-230V, 460V215TC Contact for Pricing
U7P3DCR7 1/21180208-230V, 460V254TC Contact for Pricing
U7P2GCR7 1/21765575V213TC Contact for Pricing
U7P2DCR7 1/21765208-230V, 460V213TC Contact for Pricing
U7P1DCR7 1/23530208-230V, 460V213TC Contact for Pricing
U5E3GCR51170575V215TC Contact for Pricing
U5P3DCR51170208-230V, 460V215TC Contact for Pricing
U5P2GCR51755575V184TC Contact for Pricing
U5P2DCR51760208-230V, 460V184TC Contact for Pricing
U5P1DCR53520208-230V, 460V184TC Contact for Pricing
U3P3DCR31175208-230V, 460V213TC Contact for Pricing
U3P2GCR31770575V182TC Contact for Pricing
U3P2DCR31765208-230V, 460V182TC Contact for Pricing
U3P1DKR33540208-230V, 460V182TCH Contact for Pricing
U2P3DCR21175208-230V, 460V184TC Contact for Pricing
U32P3DCR1 1/21175208-230V, 460V182TC Contact for Pricing

Application

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

Feature

  • Shaft Slinger On Pulley End
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)

What is a General-Purpose AC Motor

General Purpose AC motors refers to a broad category of every-day-use motors. Very similar to a car’s base model, these motors don’t have all the bells and whistles. You won’t find specialized shafts and bearings, specific mounting equipment, or over current and overload protections. Therefore, general purpose motors can be used for many purposes.

Sometimes referred to as ‘asynchronous’ or ‘induction’ motors, AC motors convert alternating current into mechanical energy (torque). AC stands for alternating current, as the electric current reverses its direction many times in a second. Most motors built for use in Canada run at 60Hz, meaning the direction changes 60 times per second.

Where to Buy General Purpose AC Motors in Canada

Shop general purpose electric motors online through our Canadian website today. With over 8500 SKUs and convenient filtering options, you can easily find the motor you’re searching for. Inventory is distributed from Toronto, Montreal, and Edmonton. Most orders arrive in 1-5 business days when shipping within Canada.

Our general purpose motor category covers many types of electric motors like single-phase and three-phase general purpose AC motor, for example. Choose a motor with a frame made from materials like cast iron, rolled steel, aluminum, and stainless steel. Find horsepower abilities from fractional up to 600. Choose from different enclosure types, like open Air Over (OAO), Open Drip Proof (ODP), Totally Enclosed Air Over (TEAO), Totally Enclosed Fan Cooled (TEFC), and Totally Enclosed Non-Ventilated (TENV). All from your most trusted brands; Baldor, Century, Leeson, Marathon, Max Motion, Nidec, TECO-Westinghouse, and WEG.

Need a hand finding the right motor for your application or legacy replacement? Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
3/4 HP
0.56 kW
Rated Motor Speed
1750 RPM
Rated Motor Voltage
208-230V, 460V
Rated Motor Current
2.7/2.6/1.3 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
2.7
Service Factor
1.25
KVA Code
L
Nominal Efficiency
78.5
Nominal Power Factor
66.9
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
1 Speed
Approximate Weight
28lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
10.8"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80°C RISE/RES@1.00SF
Temp Code
-
Mechanical Data
DE Bearing
6203-ZZ
NDE Bearing
6203-2Z-J/C3
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
