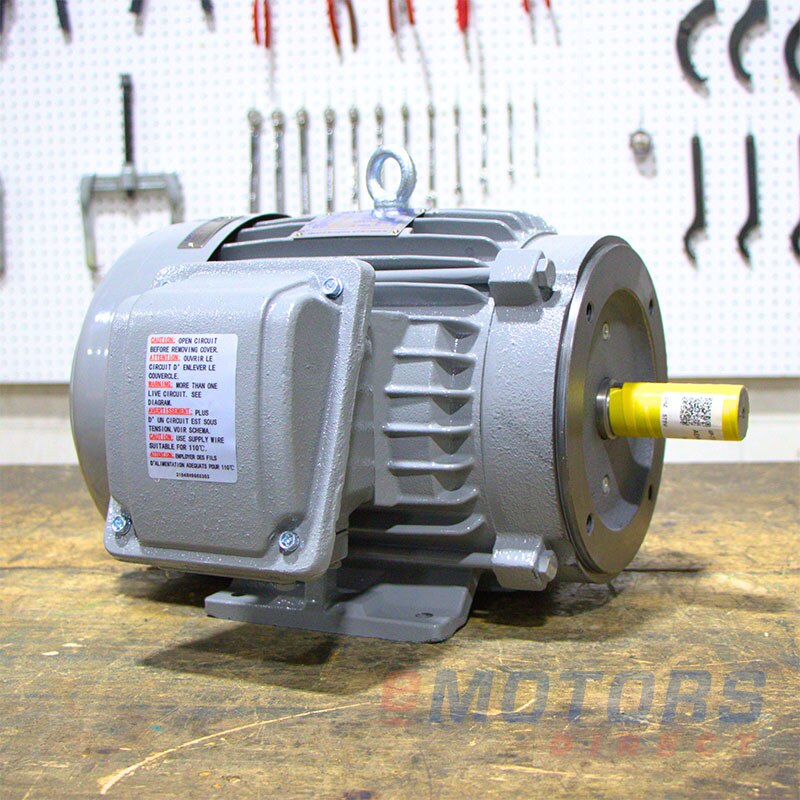

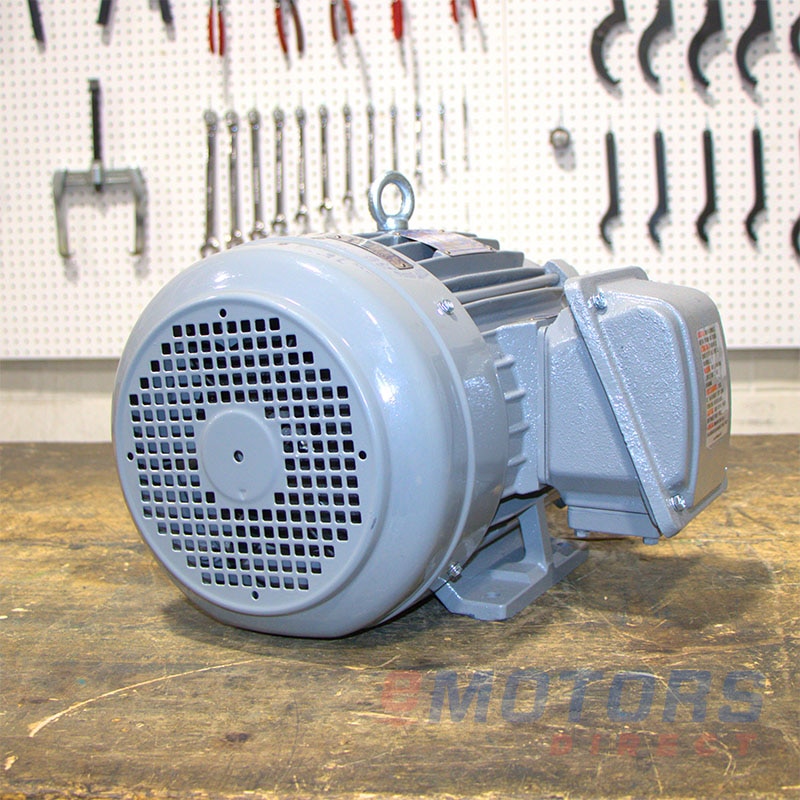

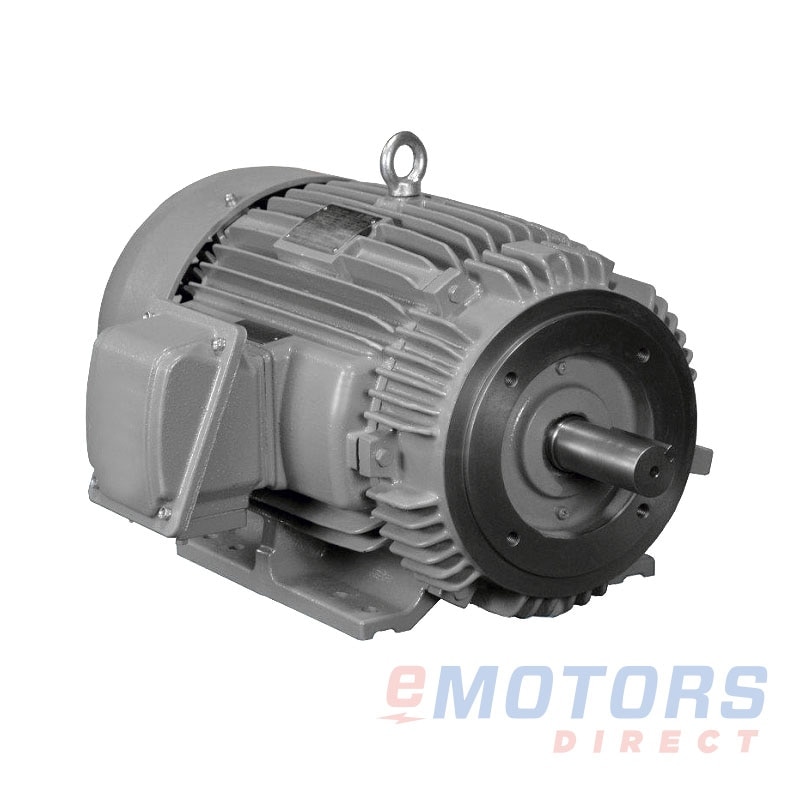

TECO-Westinghouse EC7/545C

TECO Westinghouse · Optim TEFC Severe Duty
7 1/2 HP 1800 213TC TEFC 575V General Purpose
Catalog Number: EC7/545C
HP
7 1/2
RPM
1800
Voltage
575V
Frame
213TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

The OPTIM TEFC is designed to meet the diverse requirements of the modern industrial world. Backed by a three-year warranty, this unit offers premium efficiency ratings that deliver significant life-cycle savings.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #2], AB: In Stock (2)

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

TECO Westinghouse: Optim TEFC Severe Duty (471)

EC0034C31800208-230V, 460V182TC $597.39
EC00545C51800575V184TC $663.00
EC0054C51800208-230V, 460V184TC $663.00
EC7/5457 1/21800575V213T $886.65
EC7/547 1/21800208-230V, 460V213T $886.65
EC7/545C7 1/21800575V213TC $993.01
EC7/54C7 1/21800208-230V, 460V213TC $993.01
EC01045101800575V215T $1,015.87
EC0056551200575V215T $1,066.56
EC01045C101800575V215TC $1,138.13
EC0104C101800208-230V, 460V215TC $1,138.13
EC7/567 1/21200208-230V, 460V254T $1,432.35
EC01545151800575V254T $1,448.26
EC0104-C101800208-230V, 460V215TC $1,517.73
EC0154C151800230V, 460V254TC $1,607.30
EC0106101200208-230V, 460V256T $1,683.84
EC02045201800575V256T $1,773.30
EC0154-C151800208-230V, 460V254TC $1,963.56
EC0204C201800230V, 460V256TC $1,968.12
EC02545251800575V284T $2,250.42
EC0254251800208-230V, 460V284T $2,250.42
EC0156151200208-230V, 460V284T $2,349.82
EC0204-C201800208-230V, 460V256TC $2,465.93
EC03045301800575V286T $2,478.04
EC0304301800208-230V, 460V286T $2,478.04
EC0256251200230V, 460V324T $2,718.80
EC0206201200208-230V, 460V286T $2,764.31
ECX04045401800575V324T $3,398.49
ECX0404401800208-230V, 460V324T $3,398.49
ECX0256251200208-230V, 460V324T $3,424.33
EC0256-C251200230V, 460V324T $3,677.91
ECX05045501800575V326T $4,077.39
ECX0504501800208-230V, 460V326T $4,077.39
ECX0306301200208-230V, 460V326T $4,192.69
EC06045601800575V364T $5,412.33
EC0604601800208-230V, 460V364T $5,412.33
EC0406401200208-230V, 460V364T $5,551.49
EC0506501200208-230V, 460V365T $6,480.88
EC07545751800575V365T $7,258.19
EC0606601200208-230V, 460V404T $7,474.88
EC0754751800208-230V, 460V365T $7,984.01
EC0756751200208-230V, 460V405T $8,939.04
EC100451001800575V405T $9,370.44
EC1004-C1001800208-230V, 460V405TC $11,574.83
EC1254R1251800208-230V, 460V444T $12,013.48
EC1256R1251200208-230V, 460V445T $15,290.70
EC1504R-C1501800460V445TC $16,574.35
EC2004R-C2001800460V447TC $20,001.66
EC1506R-C1501200460V447TC $20,513.57
EC2006R2001200460V449T $21,230.85

Description

The OPTIM TEFC is designed to meet the diverse requirements of the modern industrial world. Backed by a three-year warranty, this unit offers premium efficiency ratings that deliver significant life-cycle savings.

Feature

  • Available from 1-800HP; 2, 4, 6 & 8 Pole
  • Inverter Speed Range 10:1 CT & 20:1 VT up to 300HP; 3:1 CT & 20:1 VT 301-600HP

What is a General-Purpose AC Motor

General Purpose AC motors refers to a broad category of every-day-use motors. Very similar to a car’s base model, these motors don’t have all the bells and whistles. You won’t find specialized shafts and bearings, specific mounting equipment, or over current and overload protections. Therefore, general purpose motors can be used for many purposes.

Sometimes referred to as ‘asynchronous’ or ‘induction’ motors, AC motors convert alternating current into mechanical energy (torque). AC stands for alternating current, as the electric current reverses its direction many times in a second. Most motors built for use in Canada run at 60Hz, meaning the direction changes 60 times per second.

Where to Buy General Purpose AC Motors in Canada

Shop general purpose electric motors online through our Canadian website today. With over 8500 SKUs and convenient filtering options, you can easily find the motor you’re searching for. Inventory is distributed from Toronto, Montreal, and Edmonton. Most orders arrive in 1-5 business days when shipping within Canada.

Our general purpose motor category covers many types of electric motors like single-phase and three-phase general purpose AC motor, for example. Choose a motor with a frame made from materials like cast iron, rolled steel, aluminum, and stainless steel. Find horsepower abilities from fractional up to 600. Choose from different enclosure types, like open Air Over (OAO), Open Drip Proof (ODP), Totally Enclosed Air Over (TEAO), Totally Enclosed Fan Cooled (TEFC), and Totally Enclosed Non-Ventilated (TENV). All from your most trusted brands; Baldor, Century, Leeson, Marathon, Max Motion, Nidec, TECO-Westinghouse, and WEG.

Need a hand finding the right motor for your application or legacy replacement? Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
7 1/2 HP
5.6 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
575V
Rated Motor Current
7.4 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
91.7
Nominal Power Factor
83
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3 - 60 Hz
Constant Torque
10:1
6 - 60 Hz
General Data
Frame
213TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
165lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
17.98"
NEMA Design
C
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-40 to 40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6308ZZ
NDE Bearing
6306ZZ
Shaft Diameter
1.375"
Shaft Length
3.38"
Grease Type
Multemp SRL
Greaseable
No
Hazardous Locations
CSA Certified
Yes
Temp Code (Sine Wave Power)
T3C
Temp Code (VFD Power)
T3B
Additional Information
Agency Approvals
CSA & UL
Country of Origin
TAIWAN
Warranty
3-Year
