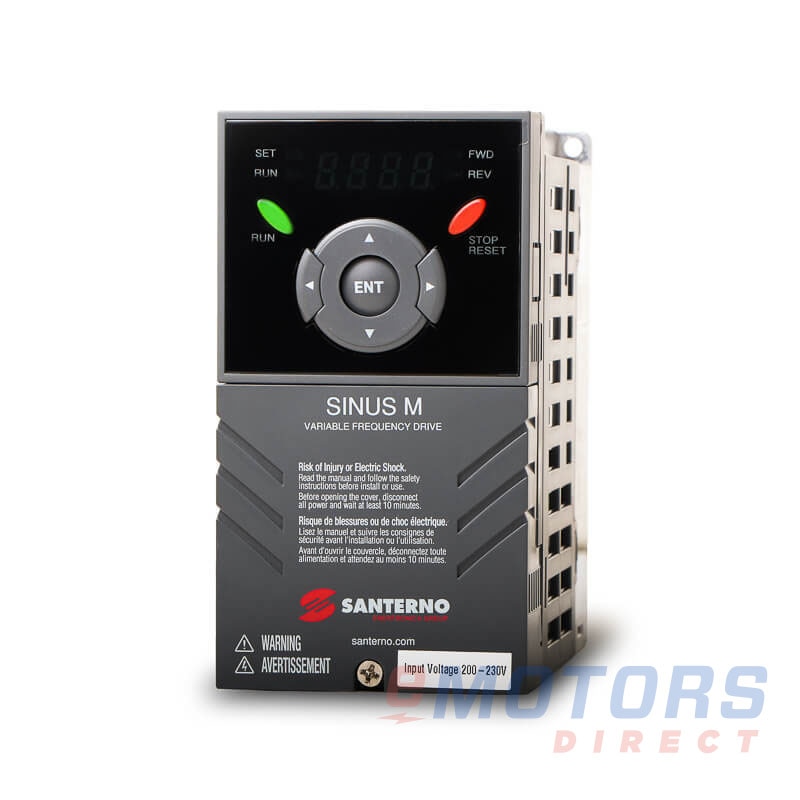

TECO-Westinghouse Sinus M 0002 2S/T

TECO Westinghouse · SINUS M - VFD
1 HP 230V SINGLE PHASE INPUT Chassis IP20 SANTERNO AC DRIVE
Catalog Number: Sinus M 0002 2S/T
HP
1
Input Voltage
230V
Output Voltage
230V
Input Phase
1
Enclosure
Chassis

Product-line overview

A compact, low cost and powerful dedicated single phase input VFD that is suitable for constant or variable torque, V/Hz and sensorless vector modes for wide application flexibility.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #2], AB: In Stock (1)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

TECO Westinghouse: SINUS M - VFD (3)

Sinus M 0002 2S/T1230V 230V 1Chassis $737.56
Sinus M 0003 2S/T2230V 230V 1Chassis $819.92
Sinus M 0005 2S/T3230V 230V 1Chassis $886.38

Description

A compact, low cost and powerful dedicated single phase input AC drive that is suitable for constant or variable torque, V/Hz and sensorless vector modes for wide application flexibility.

Feature

  • 200-230V Single phase Input w/o Derating
  • ½ HP – 30 HP rating
  • IP20 enclosure
  • Built-in braking unit
  • Possibility of connecting a DC choke in sizes: 11kW to 22kW
  • 2 Control modes: V/F and Sensorless Vector Control
  • RS485 serial port with MODBUS RTU protocol
  • Remotable smart keyboard
  • Maximum output frequency 400Hz
  • 2 analog inputs 0-10Vdc and 4-20mA
  • 1 programmable open-collector output
  • 1 programmable relay output
  • 1 analog output 0-10Vdc
  • Adjustable carrier 1-15kHz
  • PID function
Electrical Data
HP CT Rating
1 HP
HP VT Rating
1 1/2 HP
Input
Output
Voltage
230V
230V
Max CT Current
8.6
5
Max VT Current
-
-
Phase
1
3
Hz Range
50-60
0-400
Physical Data
Weight
-
Height
5.04"
Width
2.76"
Depth
5.12"
Enclosure
Chassis
Degree of Protection (IP)
IP20
Frame
-
Ambient Temp
-10 to 50°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
ITALY
Warranty
1-Year
