Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New Overstock

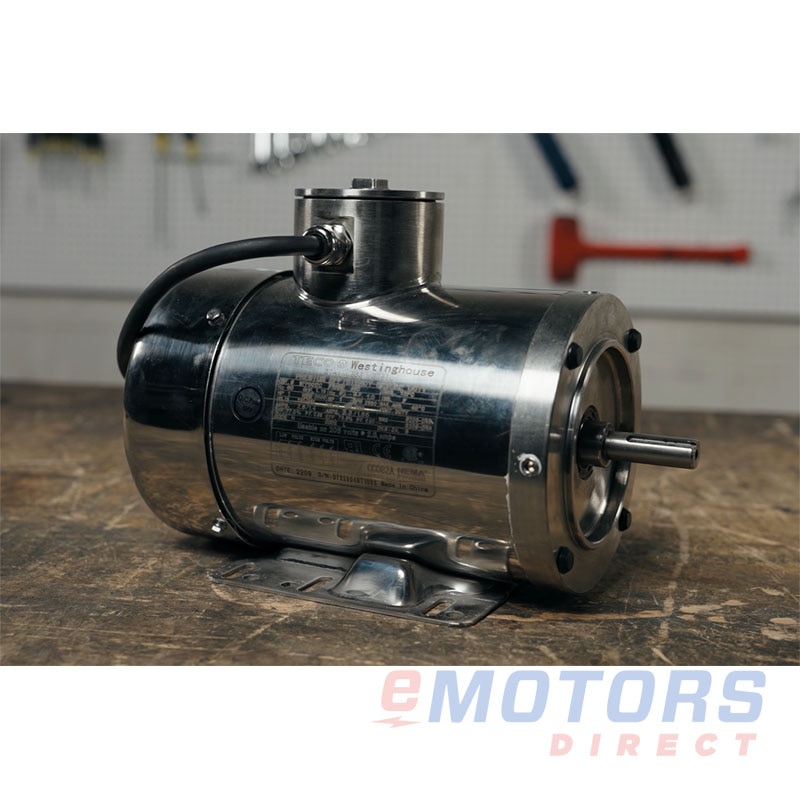

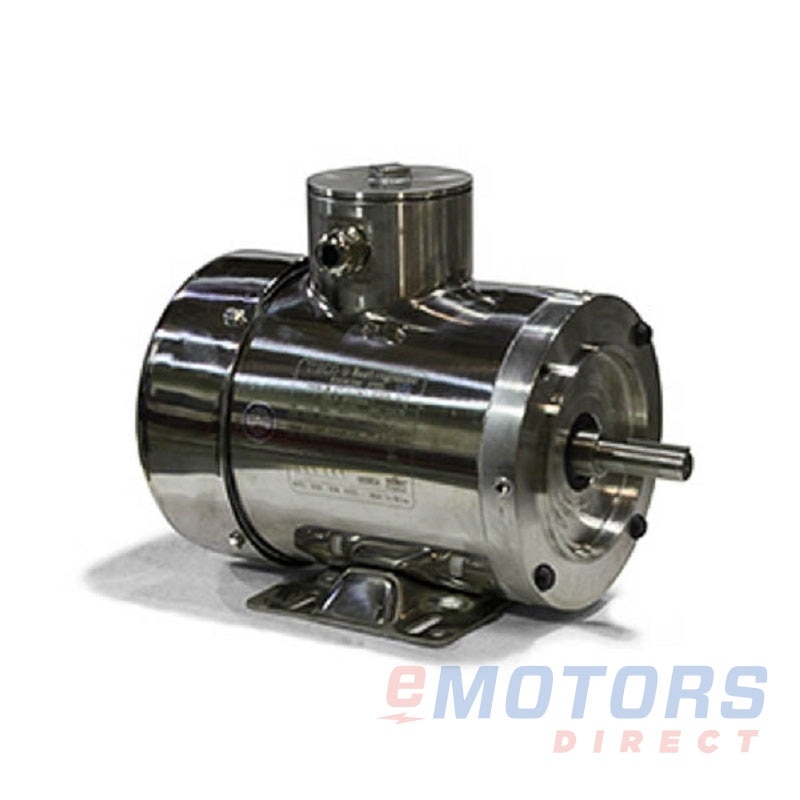

TECO-Westinghouse WFP0012C Overstock

TECO Westinghouse · Overstock Motors
1 HP 3600 56C TEFC 230V|460V washdown
Catalog Number: WFP0012C Overstock
HP
1
RPM
3600
Voltage
230V,460V
Frame
56C
Phase
3
Enclosure
TEFC
Material
Stainless Steel
Mounting
C-Face / Rigid

Product-line overview

Shop overstock electric motors. This diverse selection covers a wide variety of applications. All motors are new, unused, and supplied in original manufacturer packaging. Availability is limited to existing stock, and configurations vary by SKU.

Final Sale Product

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Cambridge, ON: Out of Stock
Lachine, QC: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
- AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
77
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
35
Double Drilled
No
Frame Material
Stainless Steel
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
-
Ambient Temp
-40 to 40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205-2RS
NDE Bearing
6205-2RS
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
CHINA
Warranty
1-Year
