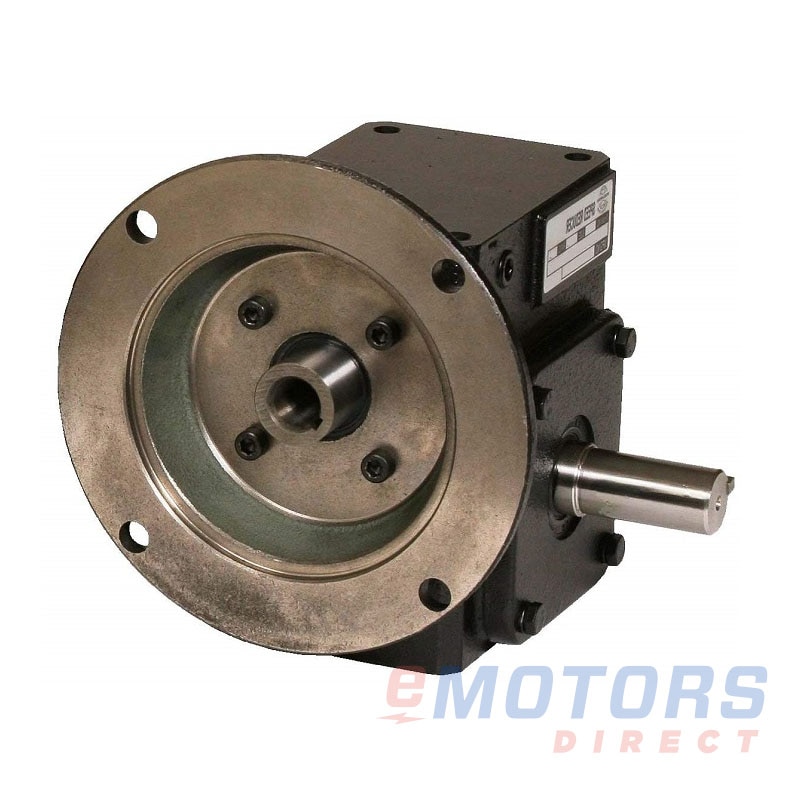

Worldwide HdRF154-5/1-R-56C

WorldWide · Right Angle Gear Reducers
5:1 2.06 MAX HP 56C INPUT RIGHT OUTPUT WORLDWIDE
Catalog Number: HdRF154-5/1-R-56C
Ratio
5:1
Input Frame
56C
Max HP
2.06
Output Type
Right Shaft
Output RPM
350
Max Output Torque
345 lb-in

Product-line overview

All motor input flanges are NEMA C-face quill style designs and each unit is sold pre-filled with specific gear oil or lubricant.

Ships next business day — In Stock (3)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (3)

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

WorldWide: Right Angle Gear Reducers (385)

HdRF133-60/1-H-56C60:10.23Hollow Bore29261 lb-in $524.36
HdRF175-60/1-H-56C60:10.42Hollow Bore29469 lb-in $621.60
HdRF206-60/1-H-56C60:10.6Hollow Bore29750 lb-in $744.87
HdRF237-60/1-H-56C60:10.86Hollow Bore291149 lb-in $850.80
HdRF262-60/1-H-56C60:11.16Hollow Bore291670 lb-in $1,047.00
HdRF325-60/1-H-182/4TC60:12.03Hollow Bore293127 lb-in $1,455.05
HdRF325-60/1-H-145TC60:12.03Hollow Bore293127 lb-in $1,455.05
HdRF325-60/1-H-56C60:12.03Hollow Bore293127 lb-in $1,455.05
HdRF325-50/1-H-145TC50:12.49Hollow Bore353413 lb-in $1,455.05
SSHdR175-60/1-H-56C-1.060:10.42Hollow Bore29469 lb-in $1,975.98
SSHdR175-50/1-H-56C-1.050:10.5Hollow Bore35575 lb-in $1,975.98
SSHdR175-40/1-H-56C-1.040:10.79Hollow Bore44714 lb-in $1,975.98
SSHdR175-30/1-H-56C-1.030:10.89Hollow Bore58666 lb-in $1,975.98
SSHdR175-20/1-H-56C-1.020:11.26Hollow Bore88596 lb-in $1,975.98
SSHdR175-15/1-H-56C-1.015:11.24Hollow Bore120554 lb-in $1,975.98
SSHdR175-10/1-H-56C-1.010:11.57Hollow Bore175515 lb-in $1,975.98
SSHdR175-5/1-H-56C-1.05:12.83Hollow Bore350499 lb-in $2,114.96
SSHdR206-60/1-H-56C-1.71660:10.6Hollow Bore29750 lb-in $2,156.50
SSHdR206-50/1-H-56C-1.71650:10.74Hollow Bore35830 lb-in $2,156.50
SSHdR206-40/1-H-56C-1.71640:11.09Hollow Bore441120 lb-in $2,156.50
SSHdR206-30/1-H-56C-1.71630:11.65Hollow Bore581310 lb-in $2,156.50
SSHdR206-20/1-H-56C-1.71620:11.57Hollow Bore88914 lb-in $2,156.50
SSHdR206-15/1-H-56C-1.71615:12.09Hollow Bore1201002 lb-in $2,156.50
SSHdR206-10/1-H-56C-1.71610:12.77Hollow Bore175935 lb-in $2,156.50
SSHdR206-5/1-H-56C-1.7165:13.62Hollow Bore350685 lb-in $2,156.50
SSHdR237-60/1-H-56C-1.71660:10.86Hollow Bore291149 lb-in $2,624.54
SSHdR237-50/1-H-56C-1.71650:11.32Hollow Bore351527 lb-in $2,624.54
SSHdR237-40/1-H-56C-1.71640:11.45Hollow Bore441483 lb-in $2,624.54
SSHdR237-30/1-H-56C-1.71630:11.82Hollow Bore581507 lb-in $2,624.54
SSHdR237-20/1-H-56C-1.71620:12.06Hollow Bore881195 lb-in $2,624.54
SSHdR237-15/1-H-56C-1.71615:12.64Hollow Bore1201249 lb-in $2,624.54
SSHdR237-10/1-H-56C-1.71610:13.47Hollow Bore1751158 lb-in $2,624.54
SSHdR237-5/1-H-56C-1.7165:14.32Hollow Bore350798 lb-in $2,808.24
SSHdR262-60/1-H-56C-1.151660:11.16Hollow Bore291670 lb-in $3,426.46
SSHdR262-50/1-H-56C-1.151650:11.37Hollow Bore351658 lb-in $3,426.46
SSHdR262-40/1-H-56C-1.151640:11.85Hollow Bore441919 lb-in $3,426.46
SSHdR262-30/1-H-145TC-1.151630:12.22Hollow Bore581827 lb-in $3,426.46
SSHdR262-30/1-H-56C-1.151630:12.22Hollow Bore581827 lb-in $3,426.46
SSHdR262-20/1-H-145TC-1.151620:12.67Hollow Bore881563 lb-in $3,426.46
SSHdR262-20/1-H-56C-1.151620:12.67Hollow Bore881563 lb-in $3,426.46
SSHdR262-15/1-H-145TC-1.151615:13.22Hollow Bore1201577 lb-in $3,426.46
SSHdR262-15/1-H-56C-1.151615:13.22Hollow Bore1201577 lb-in $3,426.46
SSHdR325-60/1-H-145TC-2.31660:12.03Hollow Bore293127 lb-in $4,739.52
SSHdR325-60/1-H-56C-2.31660:12.03Hollow Bore293127 lb-in $4,739.52
SSHdR325-50/1-H-145TC-2.31650:12.49Hollow Bore353413 lb-in $4,739.52
SSHdR325-50/1-H-56C-2.31650:12.49Hollow Bore353413 lb-in $4,739.52
SSHdR325-40/1-H-145TC-2.31640:13.35Hollow Bore443692 lb-in $4,739.52
SSHdR325-40/1-H-56C-2.31640:13.35Hollow Bore443692 lb-in $4,739.52
SSHdR325-30/1-H-145TC-2.31630:13.66Hollow Bore583045 lb-in $4,739.52
SSHdR325-30/1-H-56C-2.31630:13.66Hollow Bore583045 lb-in $4,739.52

Description

HdR series Flange Input – Shaft Output worm gear reducers are stocked in a variety of shafted output configurations including left, right and double ended with available imperial center distances ranging from 1.33 to 3.25 inches. All motor input flanges are NEMA C-face quill style designs and each unit is sold pre-filled with Mobil SHC634 synthetic gear oil and a brass spring-loaded breather plug.

Features

  • One piece # Fc20 all cast iron housing
  • S45C carbon steel shafts
  • Albc3 aluminum - bronze gear
  • All angle - radiused mounting holes
  • Shaft sleeve protects all shafts
  • Compact design - compact space capability
Mechanical Data
Ratio
5:1
Input Type
56C
Input Frame
56C
Output Type
Right Shaft
Output Size
0.750" Shaft
Output RPM
350 RPM
Max HP
2.06HP
Max Output Torque
345 lb-in
Max Overhung Load
450 lbs
Type of Oil
Mobil #SHC634 Synthetic Oil
Physical Data
Case Material
Cast Iron
Case Size
154
Center Distance
1.54 in
Weight
22lb
Performance Ratings
Service Factor 1
1.03 SF @ 2 HP
Service Factor 2
1.37 SF @ 1 1/2 HP
Service Factor 3
2.06 SF @ 1 HP
Additional Data
Country of Origin
TAIWAN
Warranty
1-Year
